126 Rev 1.0 • 29 Nov 11
6. Operation
Working with Audio Levels

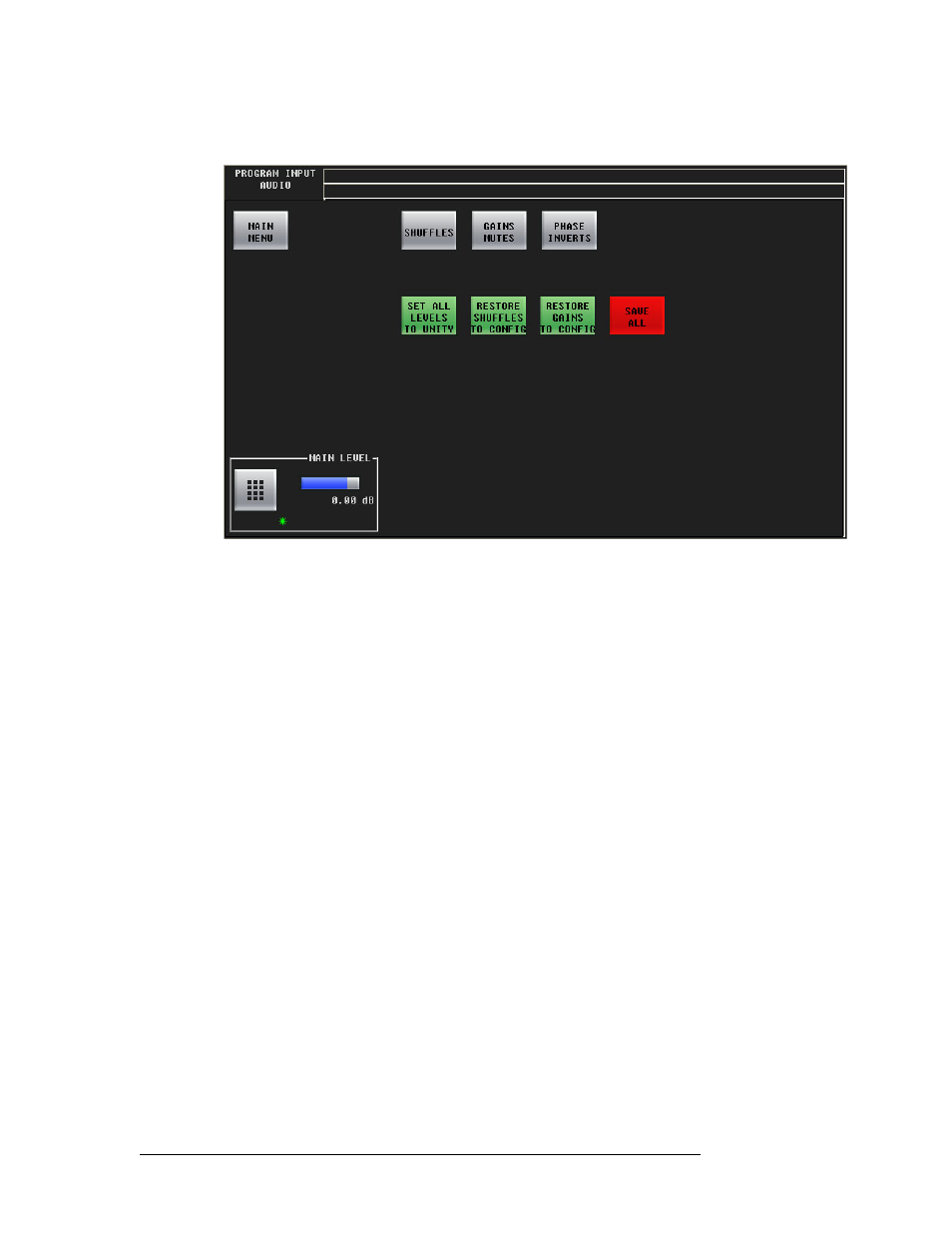

This is the ‘Program Input Audio’ menu:
The ‘Preset Input Audio’ menu is just like the ‘Program Input Audio’ menu.
The control at the bottom of the screen adjusts the master audio level. The 16 individual audio
channels are affected by the master level.
To adjust the main level, either use the knob proxy associated with the green asterisk or touch the
keypad icon to access a keypad with which to enter a number.
The ‘Main Menu’ button returns you to the main menu. The ‘Set All Levels to Unity’ button sets all
16 audio channels to unity gain. The other 3 buttons in the upper row access other sub-menus.
The ‘Restore...’ buttons restore your audio settings (shuffle or gain) to what was in the Imagestore
750’s configuration. The ‘Save All’ button saves your current audio settings
— for the currently
selected main source — to the Imagestore 750. (These buttons are not present in the ‘Program Out-
put Audio’ menu or the voice-over menus.)
