Program Input Audio Menu
Program Input Audio Menu

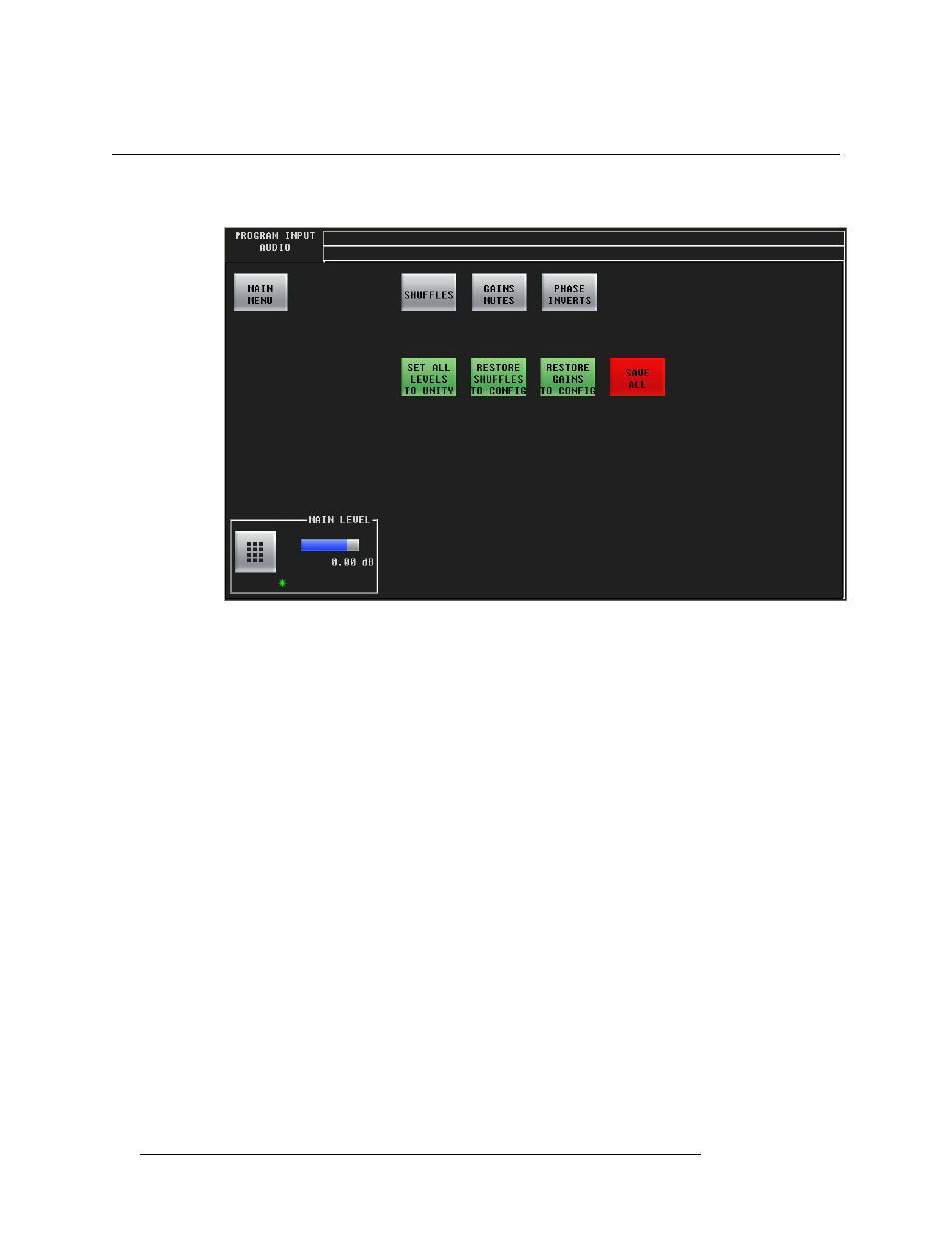

Figure 5-15 shows the panel’s ‘Program Input Audio’ menu:
Figure 5-15. PGM In Audio Menu
The ‘Program Input Audio’ menu and the ‘Preset Input Audio’ menu control the Imagestore 750’s
audio input.
The control at the bottom of the screen adjusts the master audio level of program input. To adjust
this parameter, either use the knob proxy associated with the green asterisk in the control box, or
touch the keypad icon to access a large keypad with which to enter a number.
Buttons
The ‘Shuffles’ button accesses the ‘Audio Channel Shuffle’ sub-menu (for program input audio).
The ‘Main Menu’ button returns you to the main menu.
The ‘Gains Mutes’ button accesses the ‘Gains and Mutes’ sub-menu (for program input audio).
The ‘Phase Inverts’ button accesses the ‘Phase Inverts’ sub-menu (for program input audio).
The ‘Set All Levels to Unity’ sets each of the 16 audio channels to unity gain.
The ‘Restore Shuffle to Config’ button reverts the shuffle to that which was defined in the Imag-
estore 750 configuration.
The ‘Restore Gain to Config’ button reverts the audio channels’ gains to those that were defined in
the Imagestore 750 configuration.
The ‘Save All’ button saves all audio channel manipulations to the Imagestore 750 configuration.
Audio channel data can saved for each individual main source.
