Master Control • iMC-Panel-100 Operator’s Guide 73
5. Menus
Program Output Audio Menu
Gains and Mutes

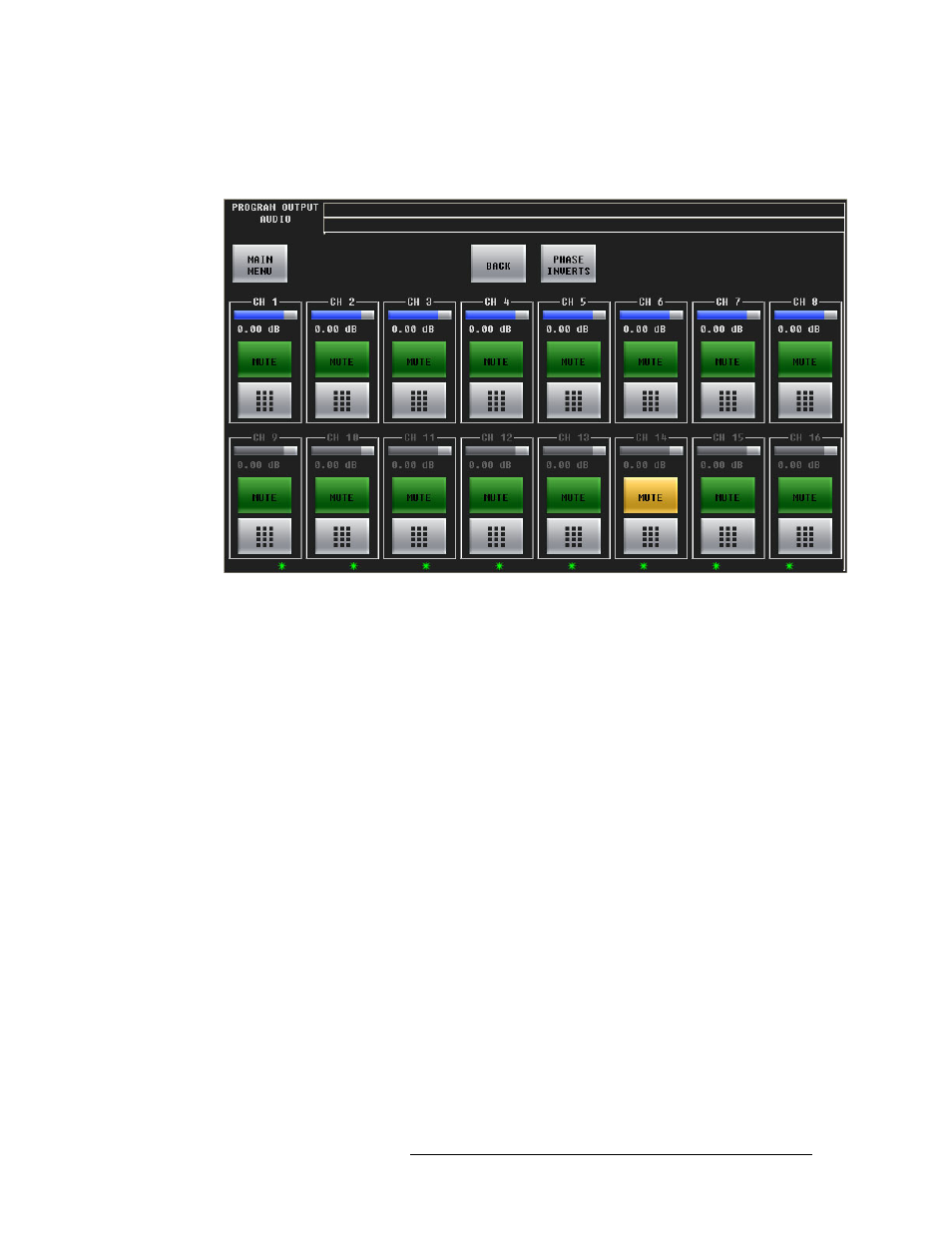

This is the ‘Gains and Mutes’ sub-menu:
Each of the 16 audio channels has a mute button.
Each of the 16 audio channels has a keypad icon. Touch the keypad icon to access a keypad in
which you can enter a numerical value.
Either the top row of 8 buttons or the bottom row of 8 buttons can be associated with the 8 knob
proxies. You can adjust the gain of each channel by using its knob proxy to active the slider and the
‘Scroll/Set’ knob with which you can adjust the level. To choose the top row, touch the top row. To
choose the bottom row, touch the bottom row.
The gain range is –100.0 dB to +28.0 dB. The gain of individual channels is affected by the master
gain of the program output.
Press the ‘Phase Inverts’ button to go to the ‘Phase Inverts’ sub-menu.
Press the ‘Back’ button to return to the ‘Program Output Audio’ menu.
Press the ‘Main menu’ button to return to the main menu.
