eZ-TOMAS & eZ-TOMAS Remote 887591 Edit Menu 3-14
Spectral Bands… (Ctrl+B) Edit Menu
Up to 14 Spectral Bands ( A through N) can be selected for each dynamic channel. The first four bands
(A, B, C, D) named Overall, DC Gap V, 1x Amplitude and 1x Phase are pre-defined and cannot be
modified. However, the user-defined bands (E through N) can be customized for specific applications.
Spectral Band values are displayed on the dynamic instrument gauges. All gauges are vertical, with
exception of circular phase gauges. When either 1x Amplitude, or 1x Phase is selected, both a vertical
gauge [for 1x Amplitude] and circular phase gauge [for 1x Phase] are displayed.

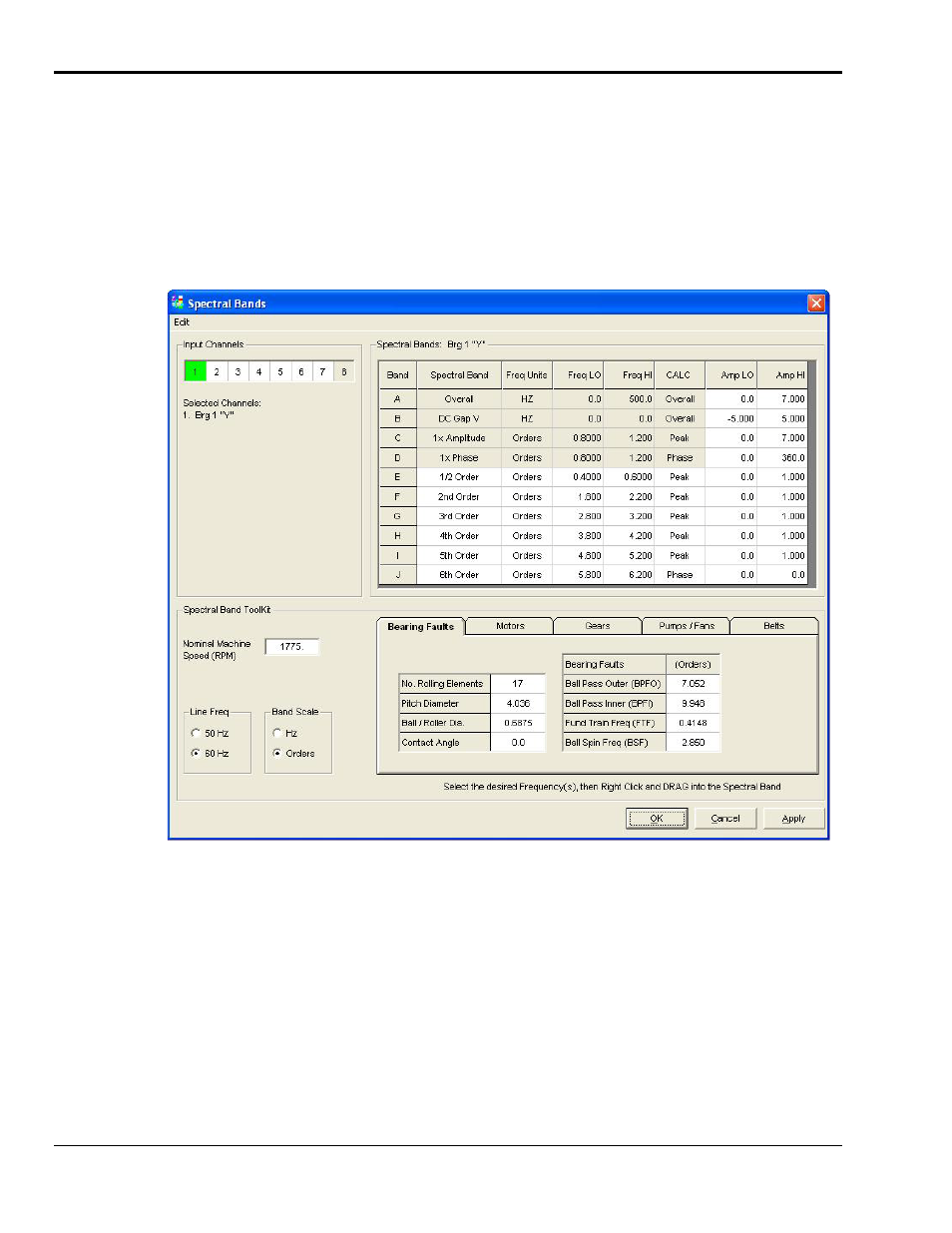

Spectral Bands Window
