Gasboy Fuel Point Vehicle Module User Manual
Page 25
MDE-4524A Vehicle Module Programming Manual· May 2006
Page 4-11
Odometer Ratio (Enter ODO RATIO)
Preparation for Programming
Figure 4-3
TUBE TIRES
TUBELESS TIRES
Tire
Size
Revs Per Mile
Tire
Size
Revs Per Mile

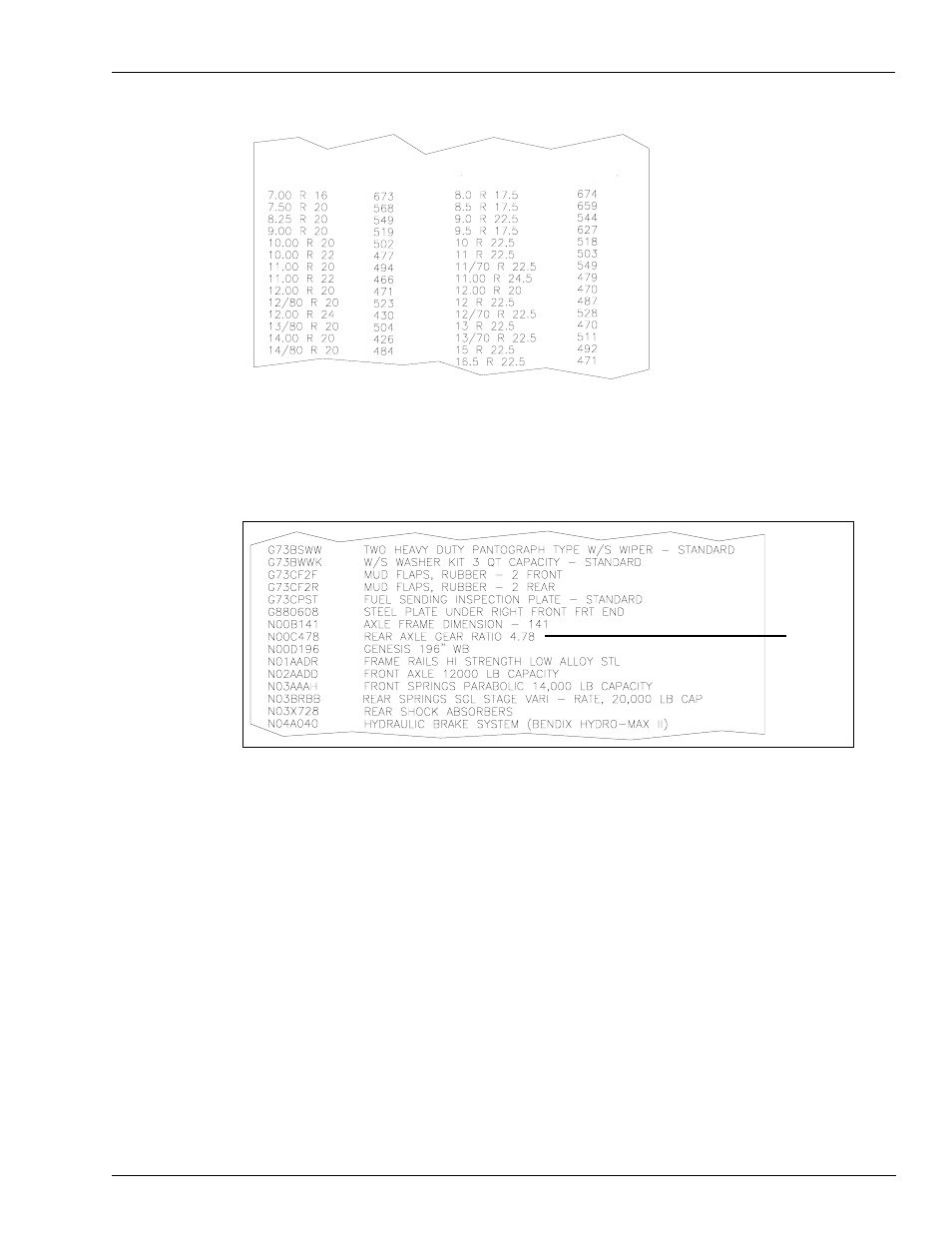

Sample Truck Tire Size Chart
Drive axle ratio can be found in the manufacturer's line setting ticket, and also on a tag
attached to the differential assembly on rear wheel drive vehicles.
Figure 4-4 Sample Line Setting Ticket
Drive axle
ratio
