Chapter 7. FRONT PANEL CONTROL
7.1 I
NTRODUCTION
The purpose of the front panel is to control the state of the power supplies, the references, the
online condition (in redundancy mode), and whether the redundancy mode is in Auto or Manual
mode. It is also a visual indication of the fault status of the LCS-4 and the devices that are being
monitored.
7.2 D
ESCRIPTION
The front panel (Figure 7-1) is comprised of 21 switches and 21 LEDs Following is a description
and functionality of each switch and any associated LED.

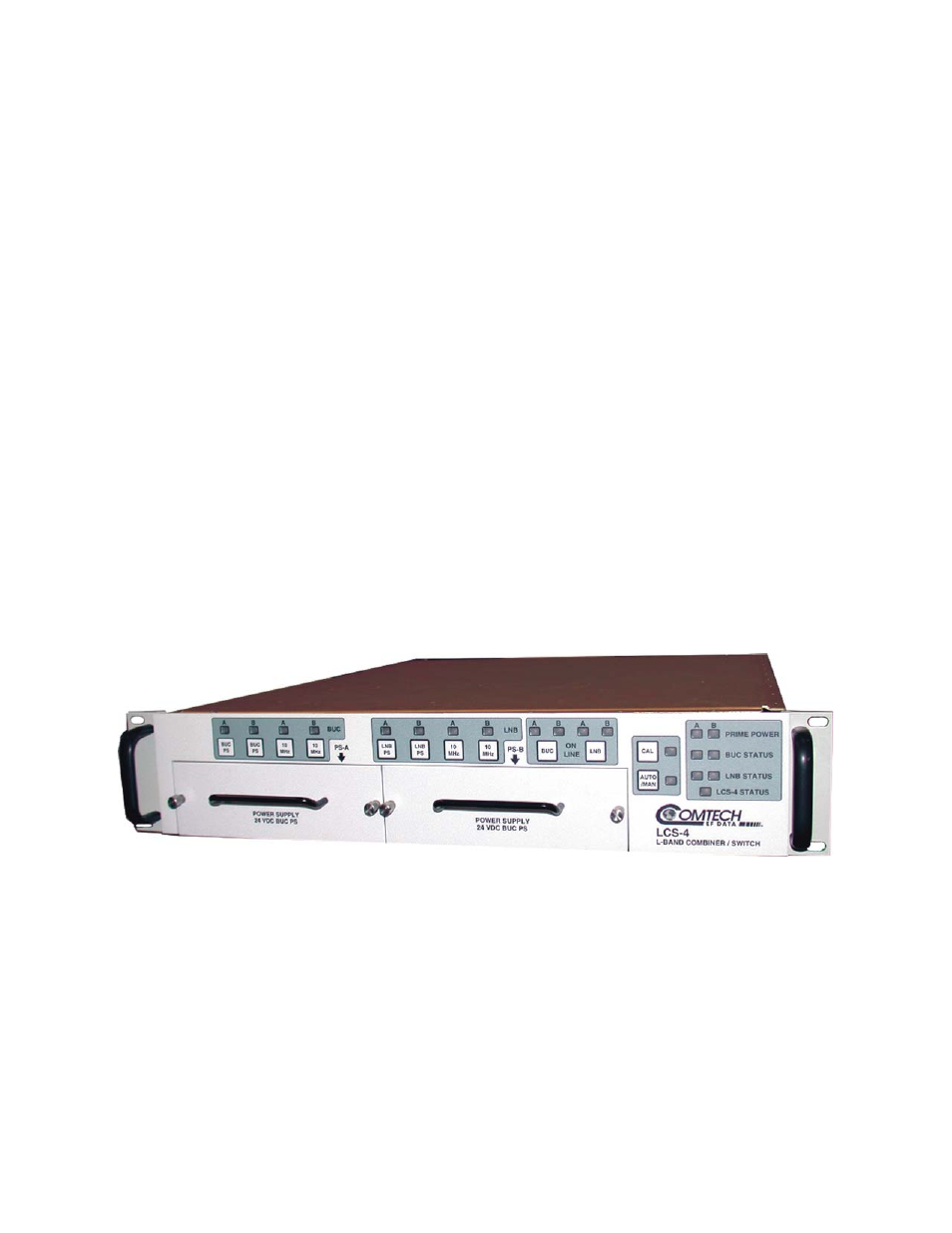

Figure 7-1. LCS-4 Front Panel
