Redundant configuration cable installation – Comtech EF Data LCS-4 User Manual
Page 55
LCS-4 L-Band Combiner Switch
Revision 1
Cable Installation
MN/LCS4.IOM
6.3 R
EDUNDANT
C
ONFIGURATION
C
ABLE
I
NSTALLATION
The LCS-4 Redundant Configuration consists of the LCS-4, up to four modems, two LNBs and
two BUCs. The LCS-4 shall be positioned above Modems A, B, C, and D. Refer to Figure 6-2.

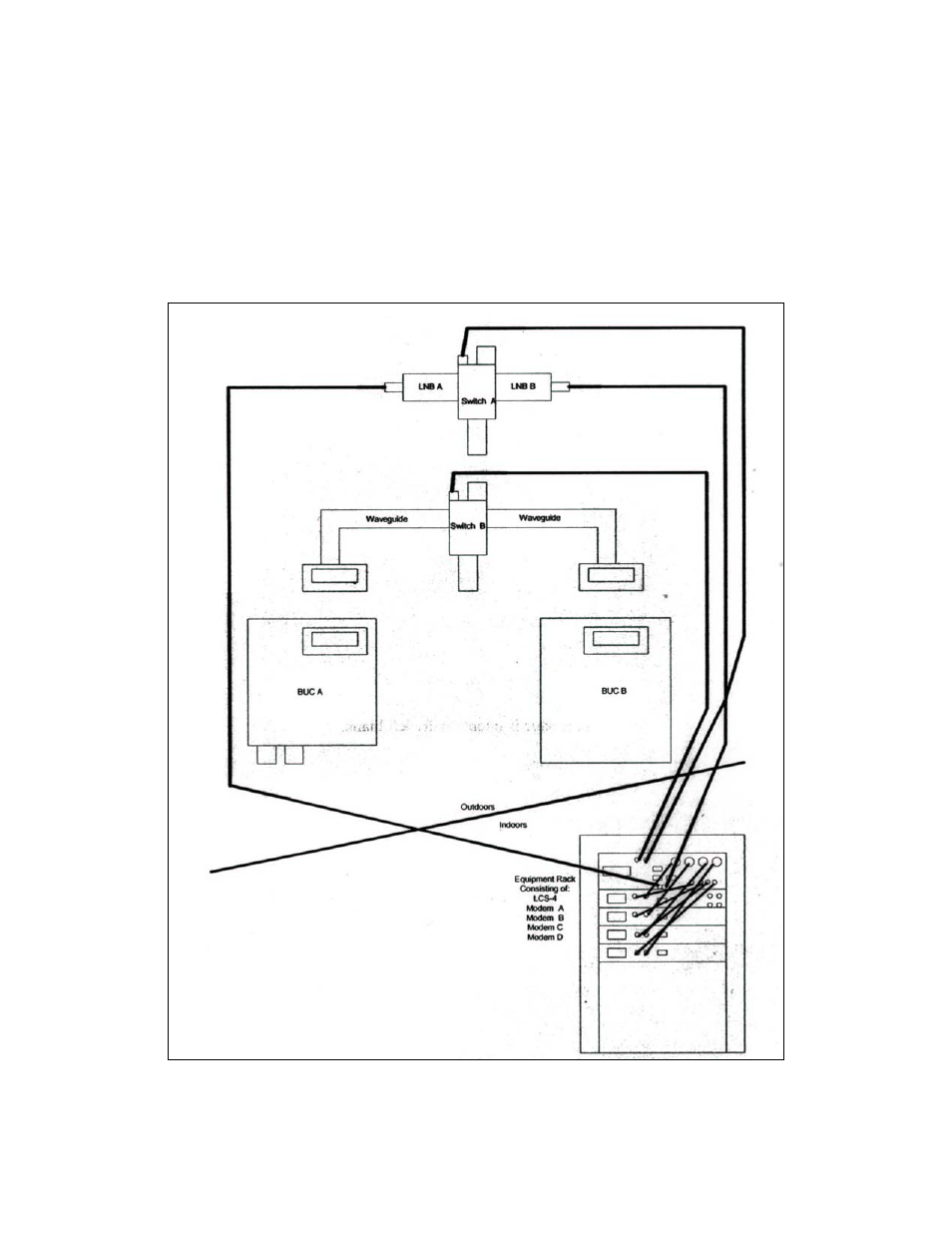

Figure 6-2. Redundant Configuration Cable Installation
6–3
