Comtech EF Data LCS-4 - Manual (Page 50)

LCS-4 L-Band Combiner Switch Revision 1
Block Up Converter MN/LCS4.IOM
*Not Illustrated
Item Part No. Nomenclature QTY **Remarks
1 FP/9026-1 Bracket, QP 1
2 FP/BR9927-1 Bracket, Upper 1 Use with Option B BUC
3 HW/M4FLAT Washer, Flat 2 Use with Option B BUC
4 HW/M4LOCK Washer, Lock 4 Use with Option B BUC
5 HW/M4X16PH Screw, Pan Head Phillips 2 Use with Option B BUC
6 HW/1/4-FLAT Washer, Flat 2
7 HW/1/4-SPLIT Washer, Split 2
8 03P1078 Bolt, Hex 1
9 HW/1/4-20HEXNUT Nut, Hex 1
10 FP/BR9929-1 Bracket 1 Use with Option A BUC
11 HW/1/4-20X5/8HEX Screw, Hex 1 Use with Option A BUC
*12 thru 19 Not Used
20 HW/5/16-FLT Washer, Flat 1
21 HW/5/16-18X1.25 Bolt, Hex Head 1
22 HW/5/16-SPLIT Washer, Split 1
23 HW/5/16-18HEXNT Nut, Hex 1
**Refer to Table 3-3

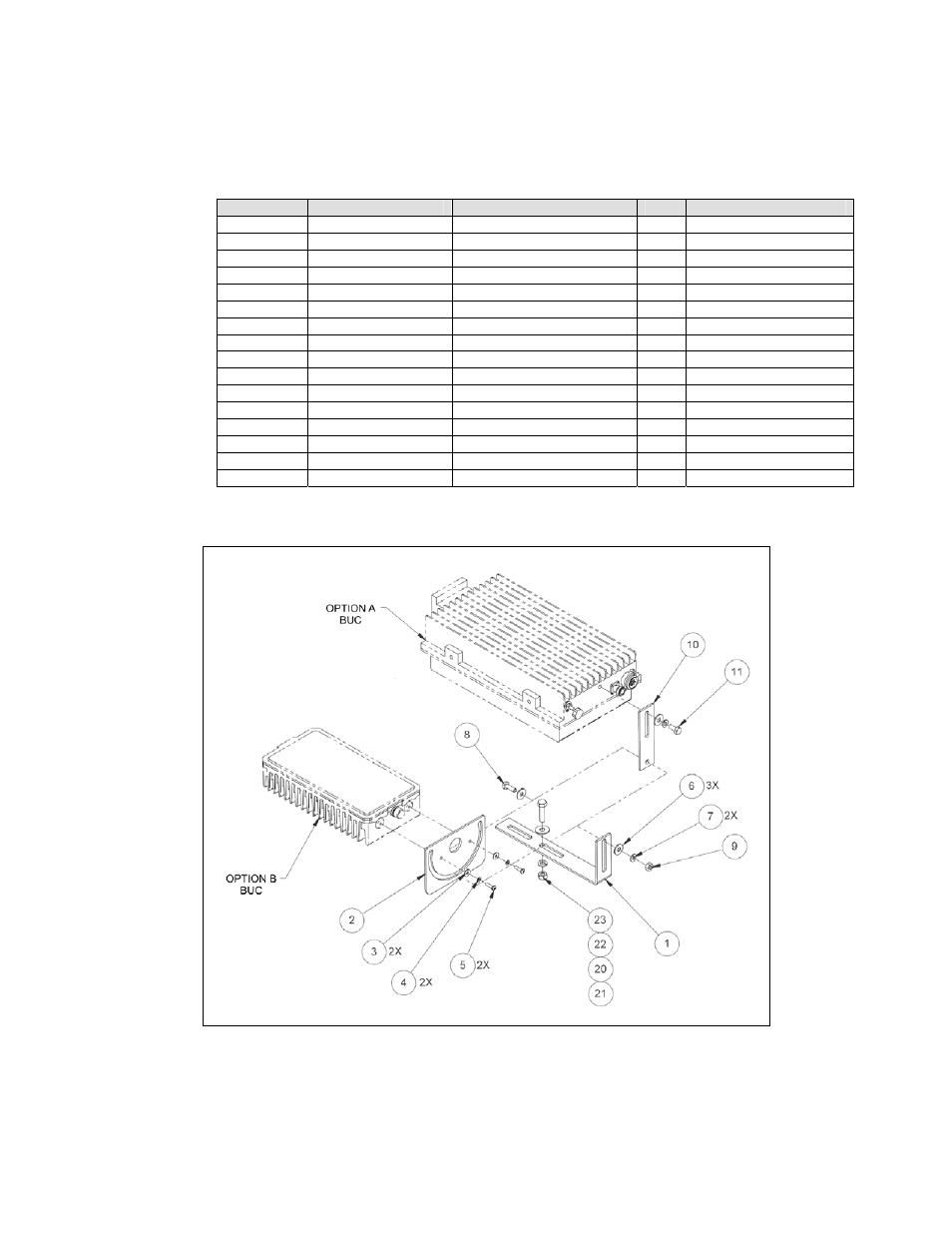

Figure 5-1. Mounting Kit, KT/9928-1
