LCS-4 L-Band Combiner Switch Revision 1
Low Noise Block Assembly MN/LCS4.IOM
1. Remove all protective tape from switch and keep it clean.
2. Position LNBs and gaskets (GA/GSKTCP229FULL)
on Port 2 and Port 4 of switch.

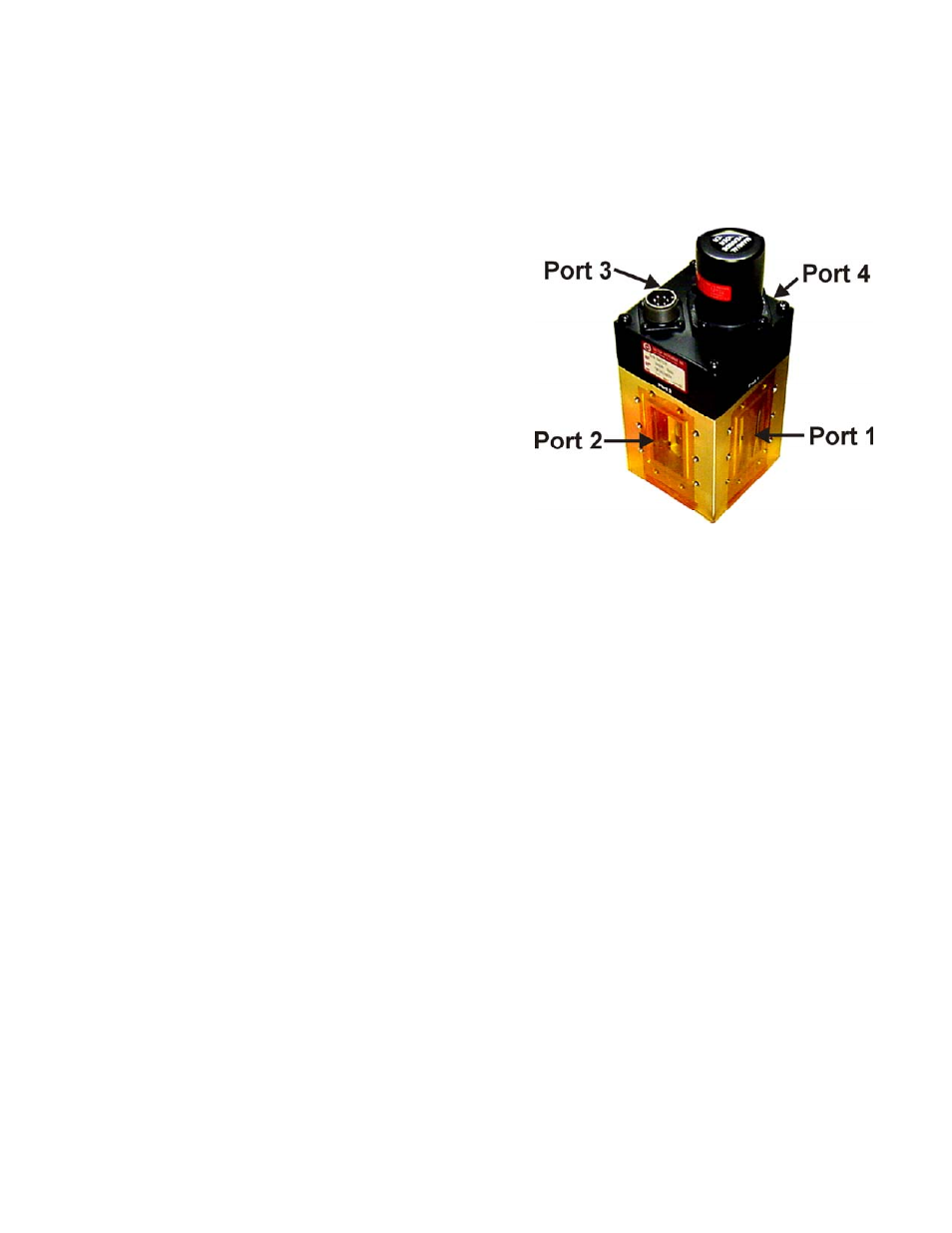

Figure 4-2. Switch Port locations
3. Secure each LNB with eight bolts, flat washers, and
split washers.
4. Position adapter (28P1084) and gasket on Port 3 and
secure with bolts, flat washers, and split washers.
5. Place termination (CN/CX50NMALE) on threaded
port of adapter.
4–4
