LCS-4 L-Band Combiner Switch Revision 1
Low Noise Block Assembly MN/LCS4.IOM
4.4.3 A
SSEMBLE
R
EDUNDANT
K
U
-B
AND
LNB
Part No. Nomenclature QTY
99D1483 Waveguide Assy, WR75 2
CN/CX50NMALE Termination, CN-50 Ω
GA/GSKTWR75HALF Gasket, WR75 Half-Thickness
HW/6-32X1/2SHSC Screw, Socket Cap
HW/6-FLT Washer, Flat
HW/6-SPLIT Washer, Split
KT/2819 Waveguide Kit
KT/2820 Waveguide Kit
RF/ADP-WR75N Adapter, Waveguide
RF/TRF-KU-WR75G Filter, Transmit Reject
SW/WGS+48V-75SB Switch, Waveguide WR75, +48 VDC 1
*Customer-Furnished LNB 2
Note: Not included in Kit. May be customer-furnished or ordered separately from CEFD.
Customer-
Furnished

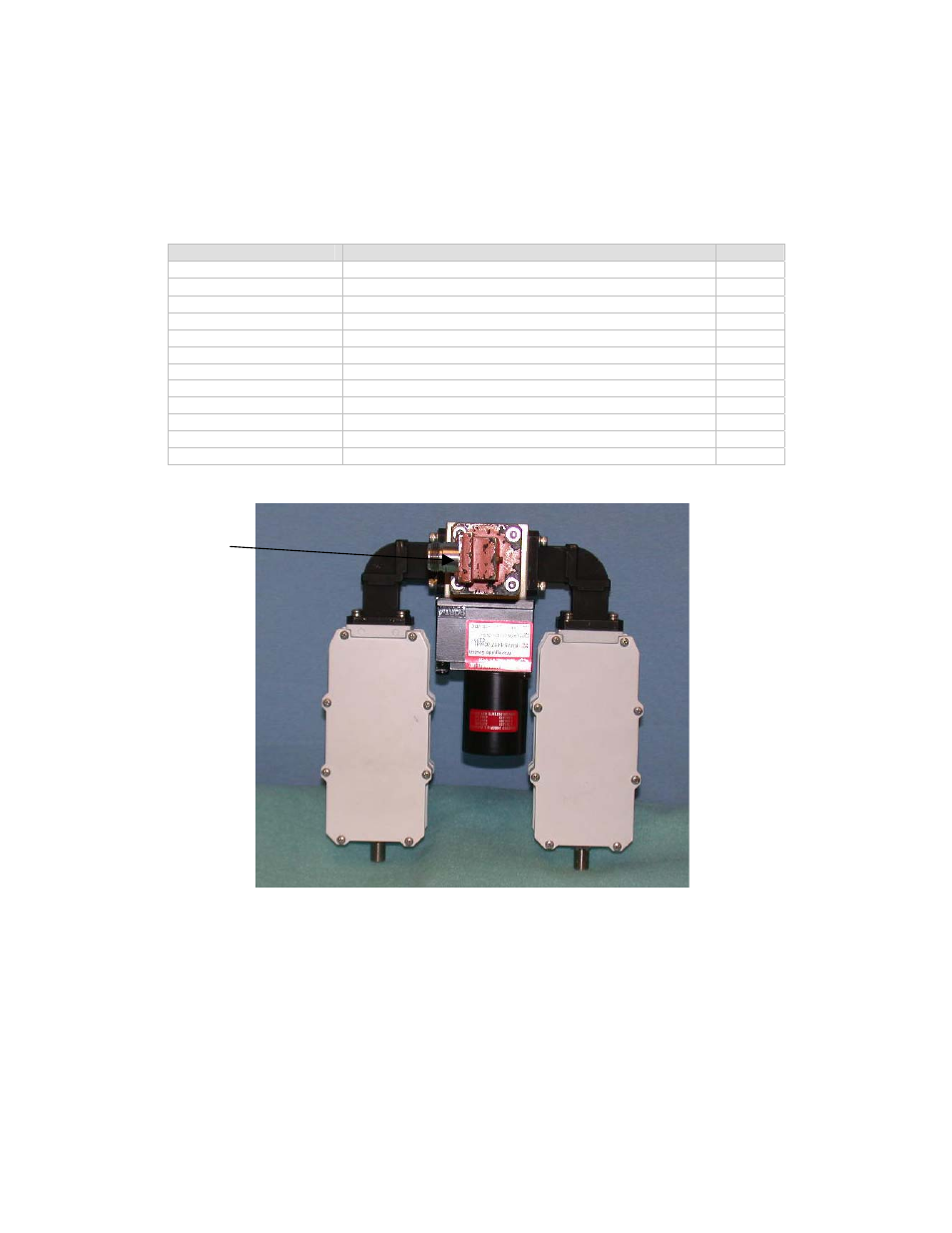

Figure 4-4. Ku-Band Redundant LNB (KT/10176-1)
4–8
