Chapter 3.
OPERATION
This chapter defines the controls and procedures for configuration and operation of the
1:1 switch.
Note: Familiarization with the front panel controls (Figure 3-1) and/or the related remote
commands described in Appendix A is recommended by Comtech EFData.
3.1 Configuration
The configuration of the 1:1 switch may be performed from the front panel, or from a
terminal or personal computer connected to the 1:1 switch remote port (J10). Each front
panel menu screen, from which entries can be made or status displayed, has a
corresponding remote command(s). Unlike the remote commands, the front panel display
menus are designed to sequentially guide the operator through the configuration process.
Note: Refer to the menu tables presented in this chapter for specific configuration
information.
Upon completion of the 1:1 switch installation, as described in Chapter 2, the prime
modem attached to the 1:1 switch shall be programmed prior to the initial configuration
of the switch.

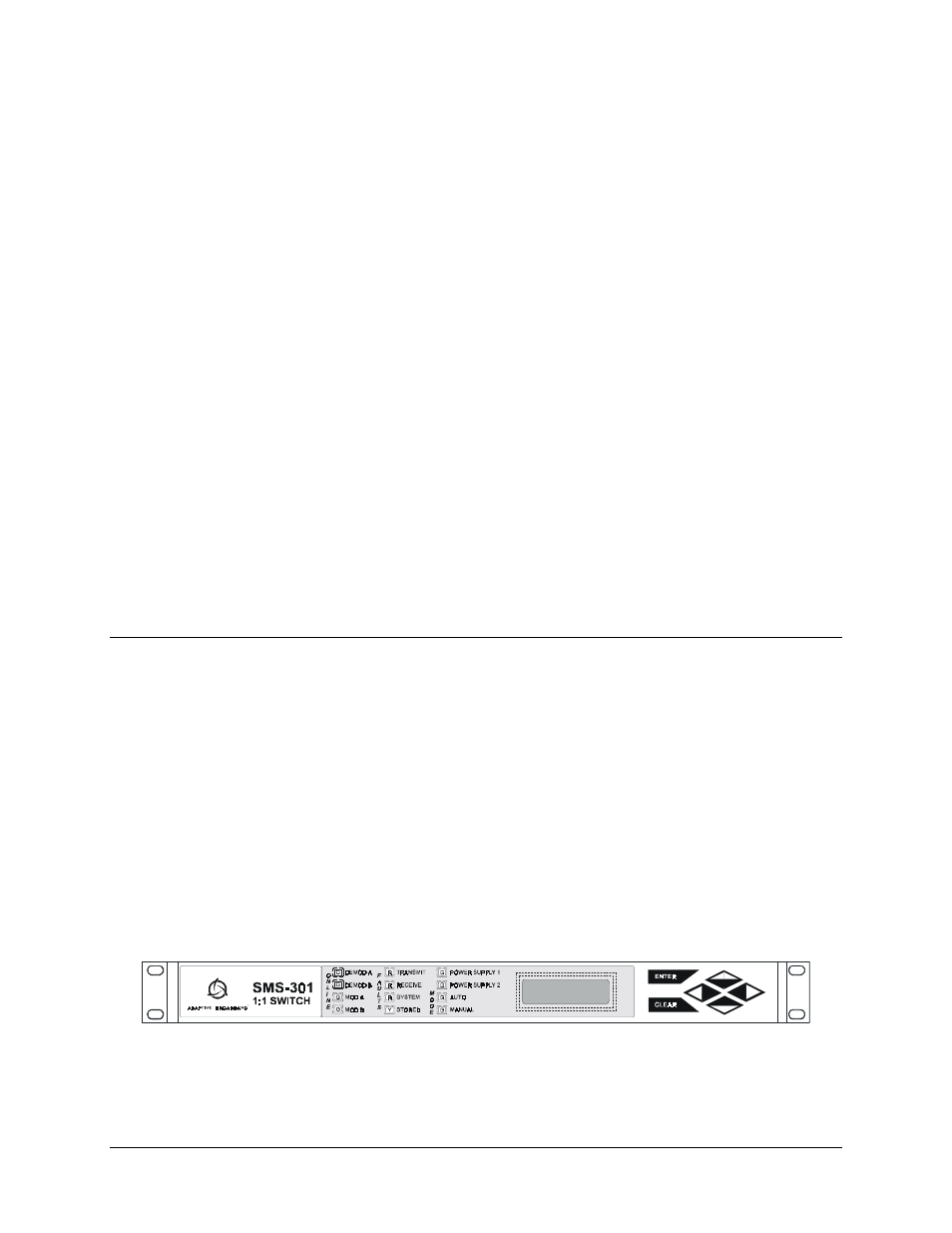

Figure 3-1. SMS-301 Front Panel View
