BMV060S

6

3. Turn the two green levers counterclockwise.

BMV065S

4. Pulling the handle, slowly open the inner cover.

BMV066S

The drum units are installed as shown. From the left, the units are attached in the order of
black (K), yellow (Y), cyan (C), and magenta (M) .

6. Replacing Consumables

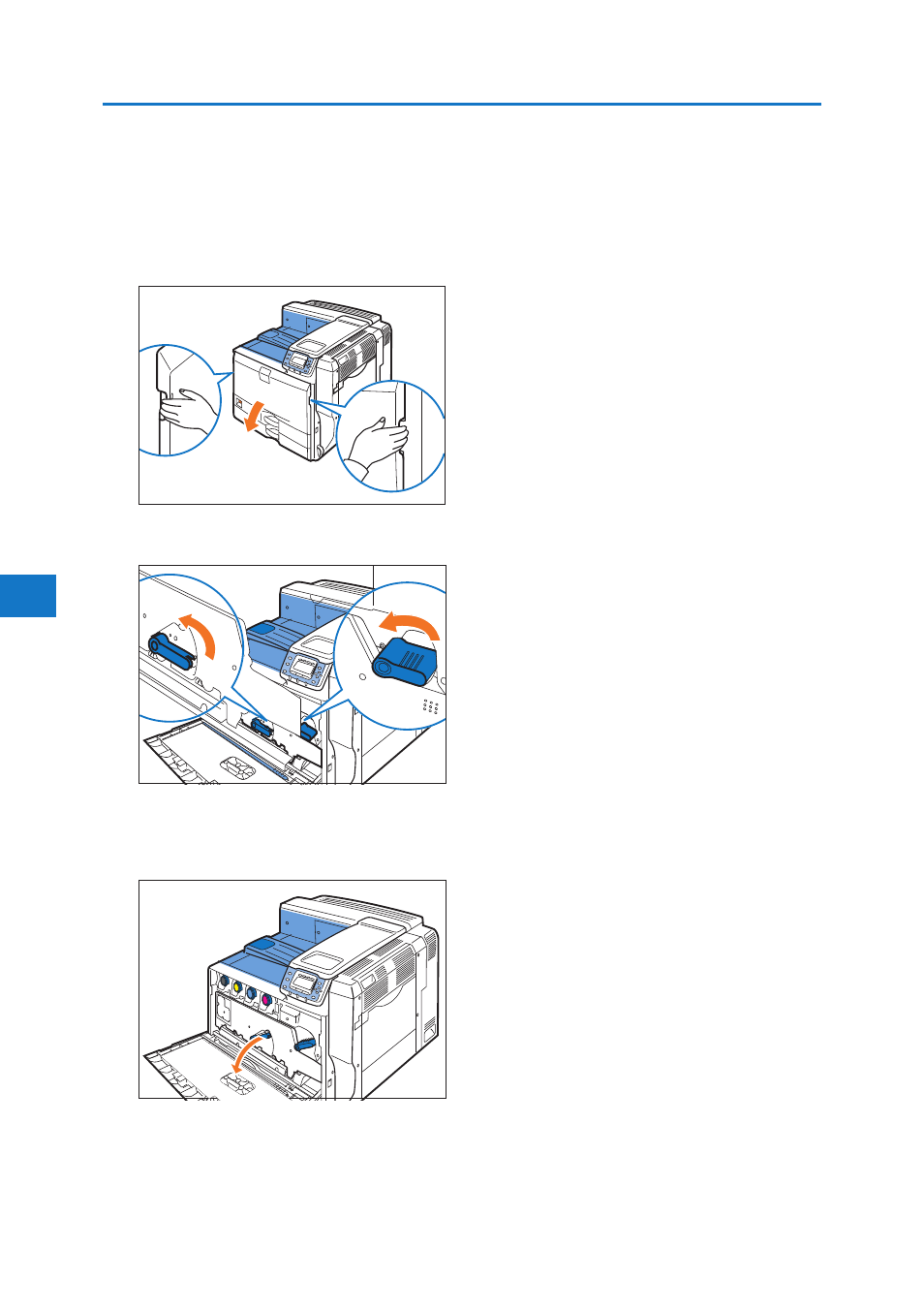

The following is the replacement procedure for the black drum unit located at the left end. This proce-
dure applies to the replacement of other drum units.

1. Turn off the printer and unplug the power cable.

2. Holding the left and right side grips, carefully open the front cover.

96
