1

2

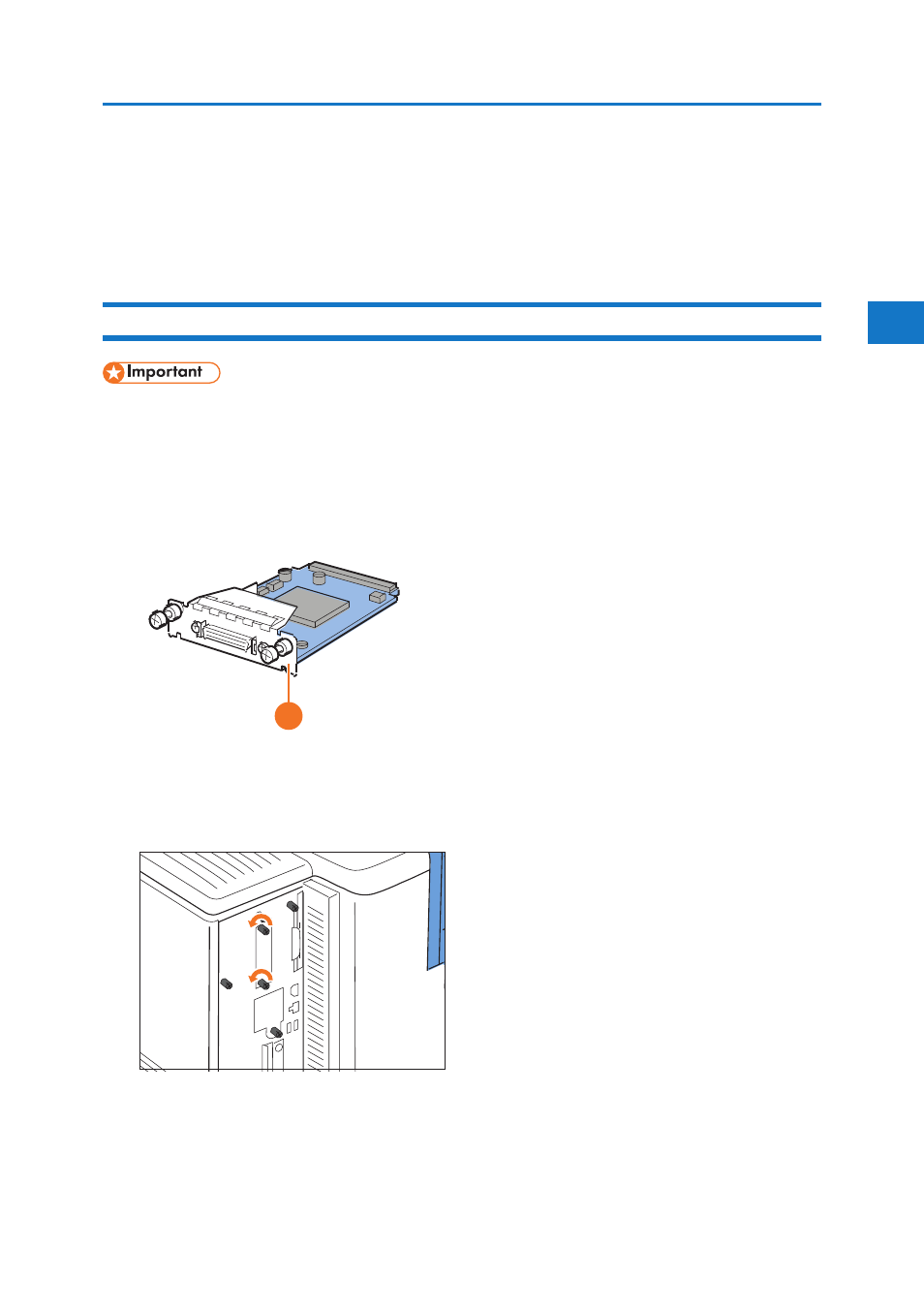

1. Check the contents of the package.

BMW032S

1. IEEE 1284 Interface Board

2. Turn the printer off and unplug the power cord.

3. Loosen the two screws and remove the slot cover.

The removed cover will not be reused.

BMV165S

Installing the Interface Units

• If the board was not installed properly, repeat the procedure from the beginning. If it cannot be

installed correctly even after reattempting installation, contact your sales or service representative.

• For details, see the operating instructions included with the Bluetooth interface unit.

• For information on printing the configuration page, see “List/Test Print Menu”, Software Guide.

Installing the IEEE 1284 Interface Board

• Before beginning work, ground yourself by touching something metal to discharge any static electric-

ity. Static electricity can damage the board.

• Do not subject the board to physical shocks.

• For connection to the IEEE 1284 interface board, use a half pitch 36-pin interface cable.

37
