3
3. Connecting the Printer Cables

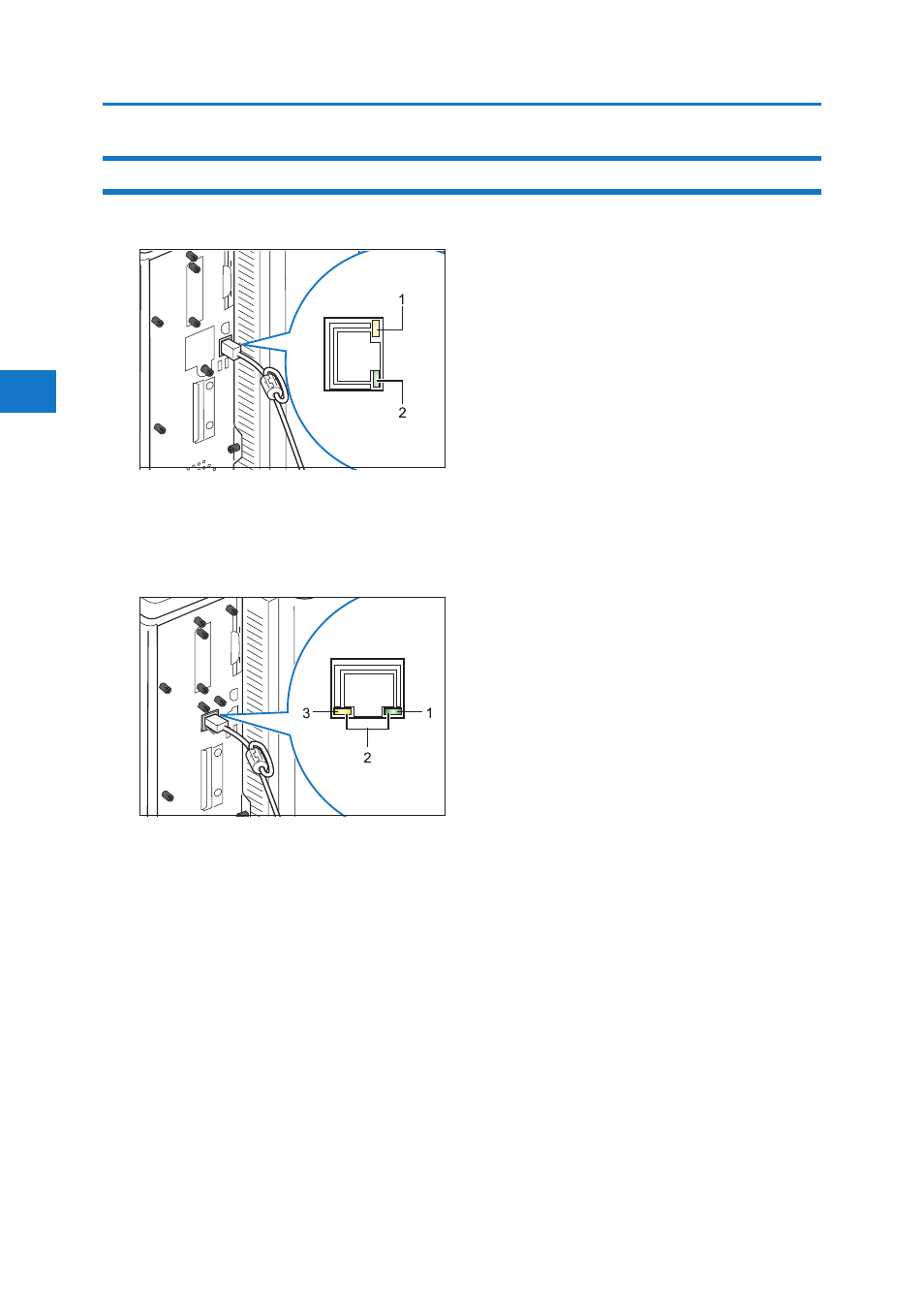

Reading the LED Lamps
Standard Ethernet port
BMV184S
1. Yellow: turns on when 100BASE-TX is in use. It turns off when 10BASE-T is in use.
2. Green: turns on when the printer is properly connected to the network.
Ethernet port of the Gigabit Ethernet board
BMV185S
1. Green: turns on when 10BASE-T is in use.
2. Both the green and yellow lamps are lit when 1000BASE-T is in use.
3. Yellow: turns on when 100BASE-TX is in use.
