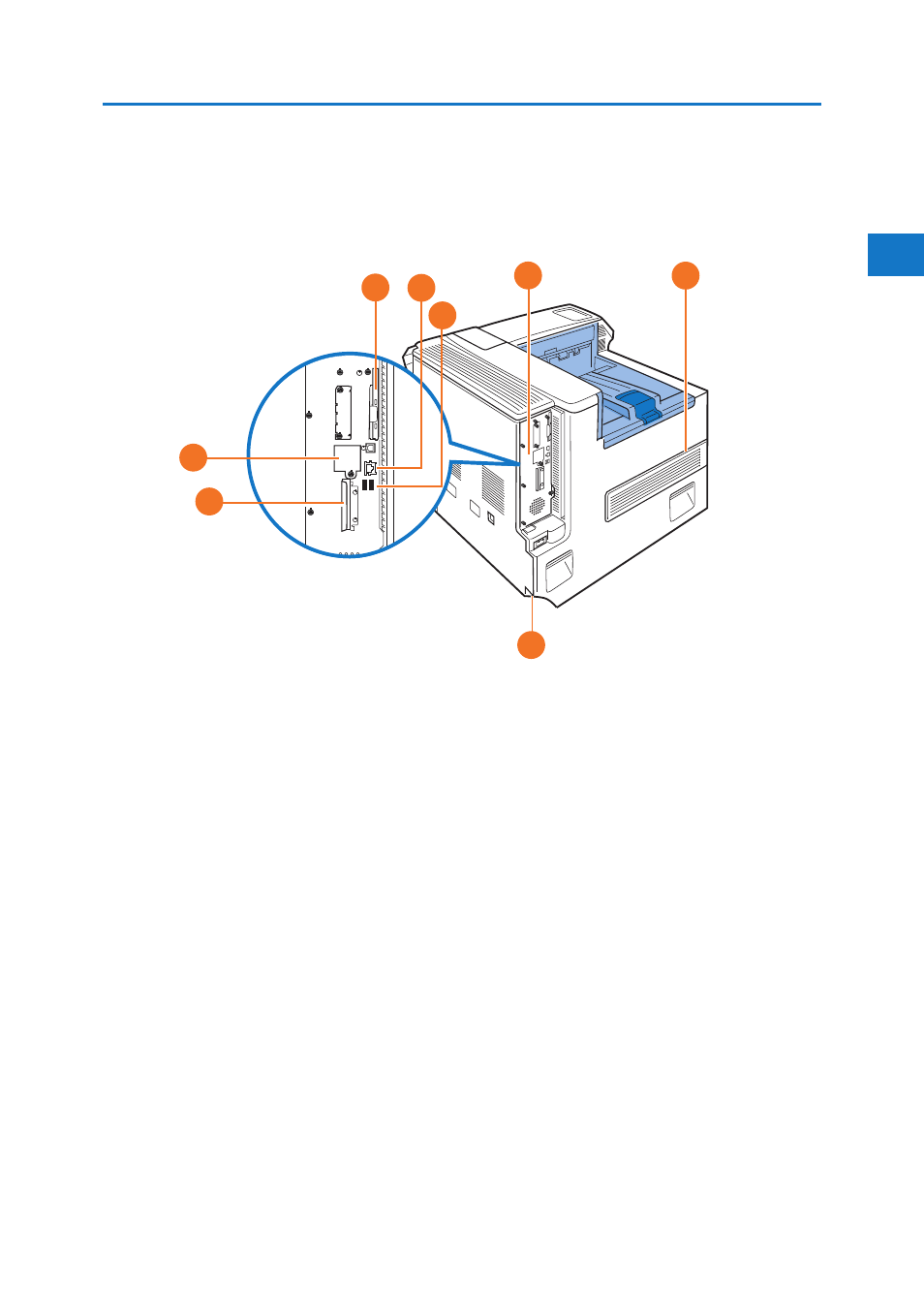

1. Expansion Card Slots
Remove the cover to install SD cards.
2. Ethernet Port
Use a network interface cable to connect the printer to the network.
3. USB Port A
Connect external devices to the printer, such as a digital camera.
4. Controller Board
Slide this out to install options such as the SDRAM module, hard disk, or Gigabit Ethernet
board.
5. Ventilator
Releases heat from internal components to prevent overheating. Do not place objects against or
near these holes.
Doing so results in printer malfunction.
