1. Guide to the Printer

This chapter explains the names and functions of the printer’s components.

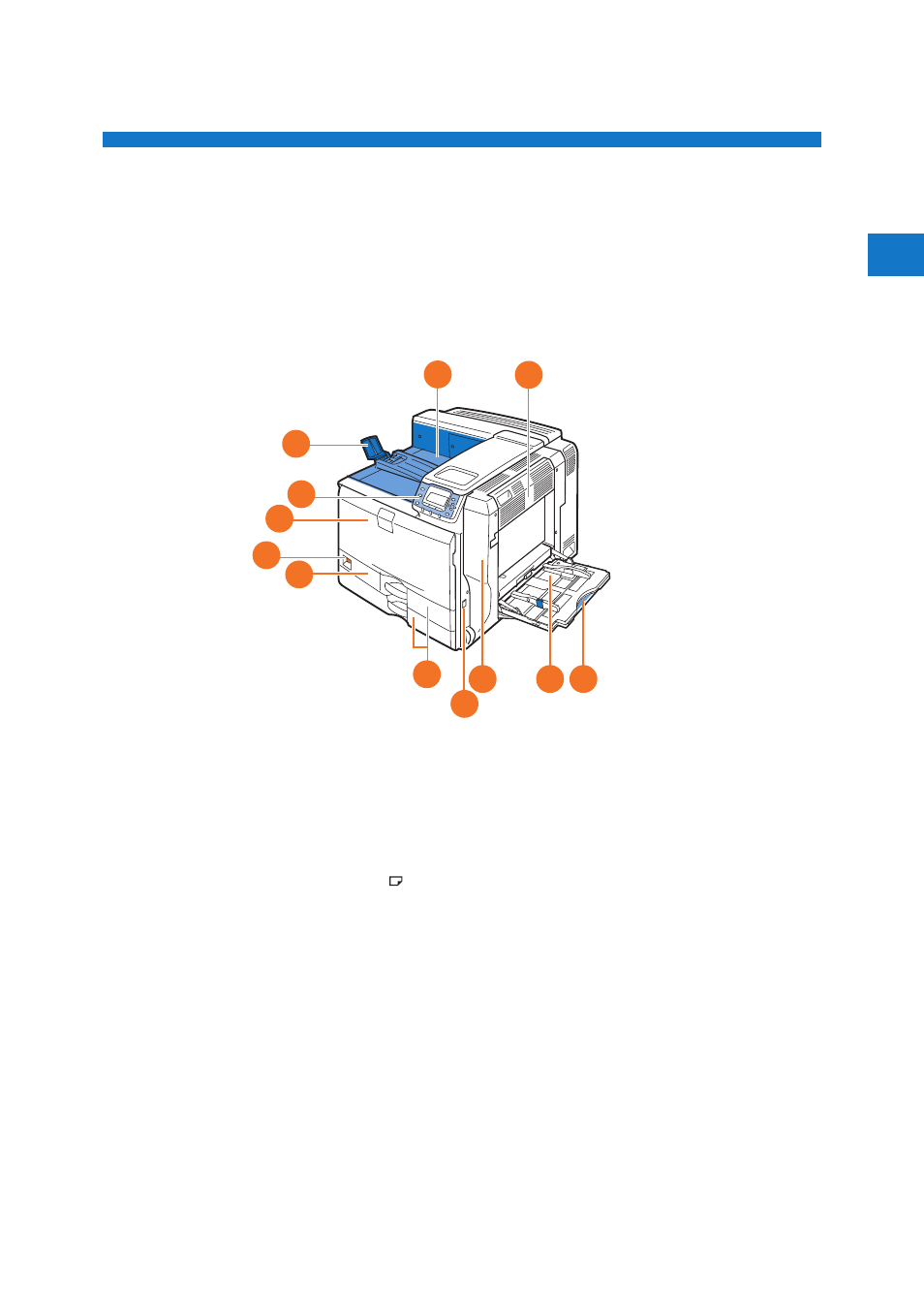

Exterior: Front View

This section explains names and functions of the parts on the front and right side of the

printer.

1. Standard Output Tray
Printed pages are output here.

2. Upper Right Cover Open this cover to remove jammed paper.

3. Bypass Tray

Up to 100 sheets of plain paper can be loaded.

4. Bypass Tray Extension

BMV003S

When loading paper larger than A4 , pull out the bypass tray extension. For details about the
sizes and types of paper that can be used, see “Supported Paper for Each Tray”.

5. Right Cover

Open this cover to replace the fusing unit and transfer roller, or to remove jammed paper.

6. Handle

Pull out this handle when lifting the printer.

7. Tray 1, Tray 2

Up to 550 sheets of paper can be loaded in each tray, when using plain paper.

In this manual, tray 1, tray 2, the optional 1000-sheet paper feed unit trays (trays 3 to 4) are
collectively referred to as 500-sheet trays.

5
