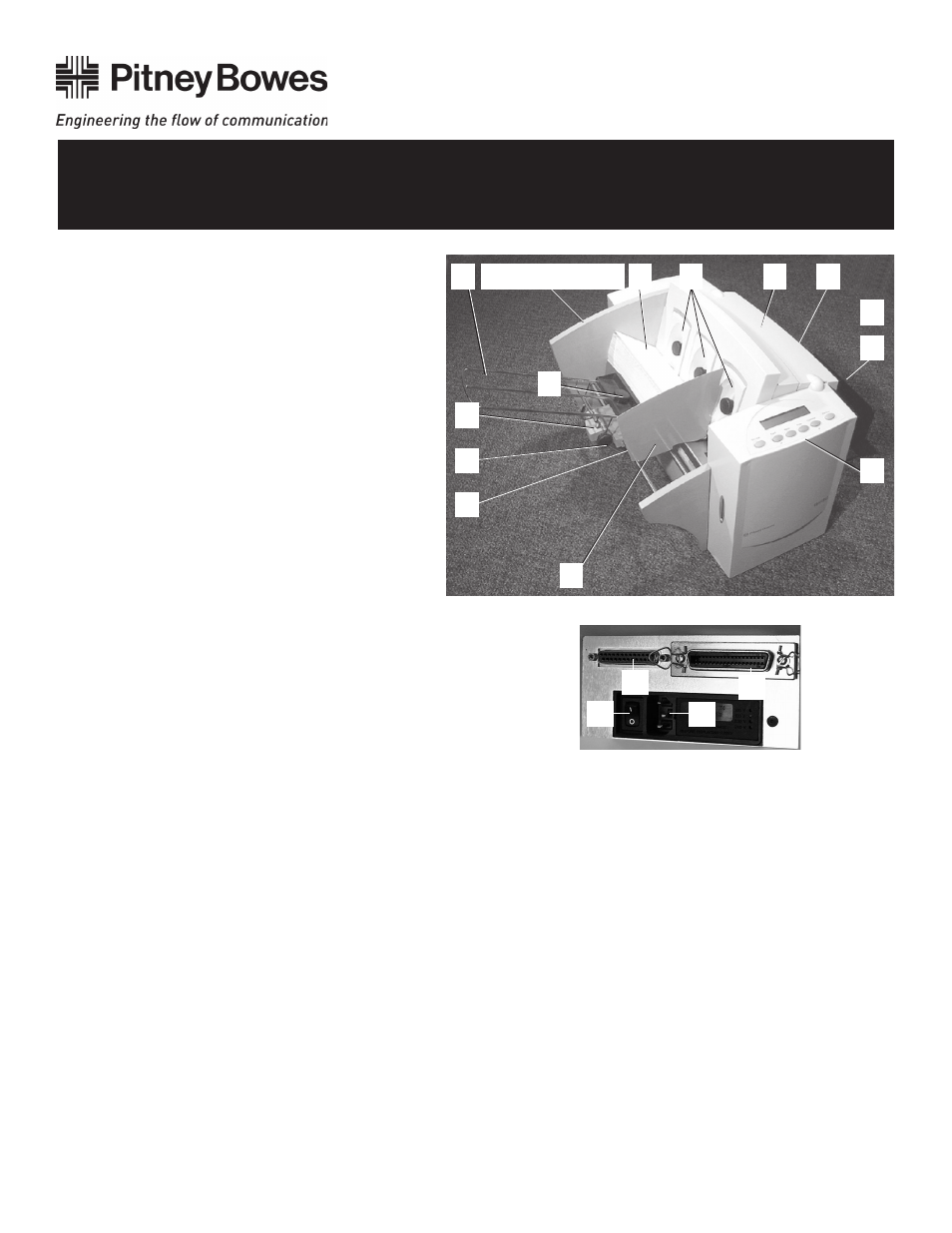

What’s What
1. H-Block Separators
2. Input Area
3. Interface Panel
a. Power Switch
b. Power Cord
c. Parallel Connector
d. Serial Connector
4. Wire Frame Input Stacker
5. Material Prop and Lock Knob
6. Wireframe Slide
7. Wireframe Feed Angle Lock
Knob
8. Wireframe Slide Lock Lever
(Not Shown)
9. Feed Fence
10.Control Panel
11.Stacker Tray
12.Output Area
13.Exit Rollers (Not Shown)
14.Top Cover
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
How to Set Your Printer Up
1. Set the H-Block Separators to the thickness of your material.
2. Center the wireframe input stacker under your material.
3. Set the feed angle of the wireframe to about 45 degrees for standard weight materials. Set it
lower for heavier materials, higher for lighter materials.
4. Set the feed fence to the width of your material plus 1/16th inch.
5. Fan (aerate) your material. Load your material (envelope flaps down and trailing, bottom edge
feeding first).
6. Set the material prop so it’s about even with the top of the stack.
7. Adjust the media thickness lever to its mid position.
8. Adjust the exit rollers so they overlap the edges of your material by 1/4 inch.
9. Print a test piece. Readjust media thickness lever to get best print quality.
10.Install the DA300 print driver and Envelope Designer™Plus application.
The following pages explain each step in a general way. The DA300 Operator Guide has complete
instructions.
1 2 3 (see figure below) 4
5
6
7
9
12
11
14 13
8
10
3a 3b
3c Interface Panel
SV61037 Rev. A 5/03 ©2003 Pitney Bowes Inc. All rights reserved. Printed in USA
Quick Setup Instructions
for your AddressRight TM Printer DA300
3d
