2. Installing Options

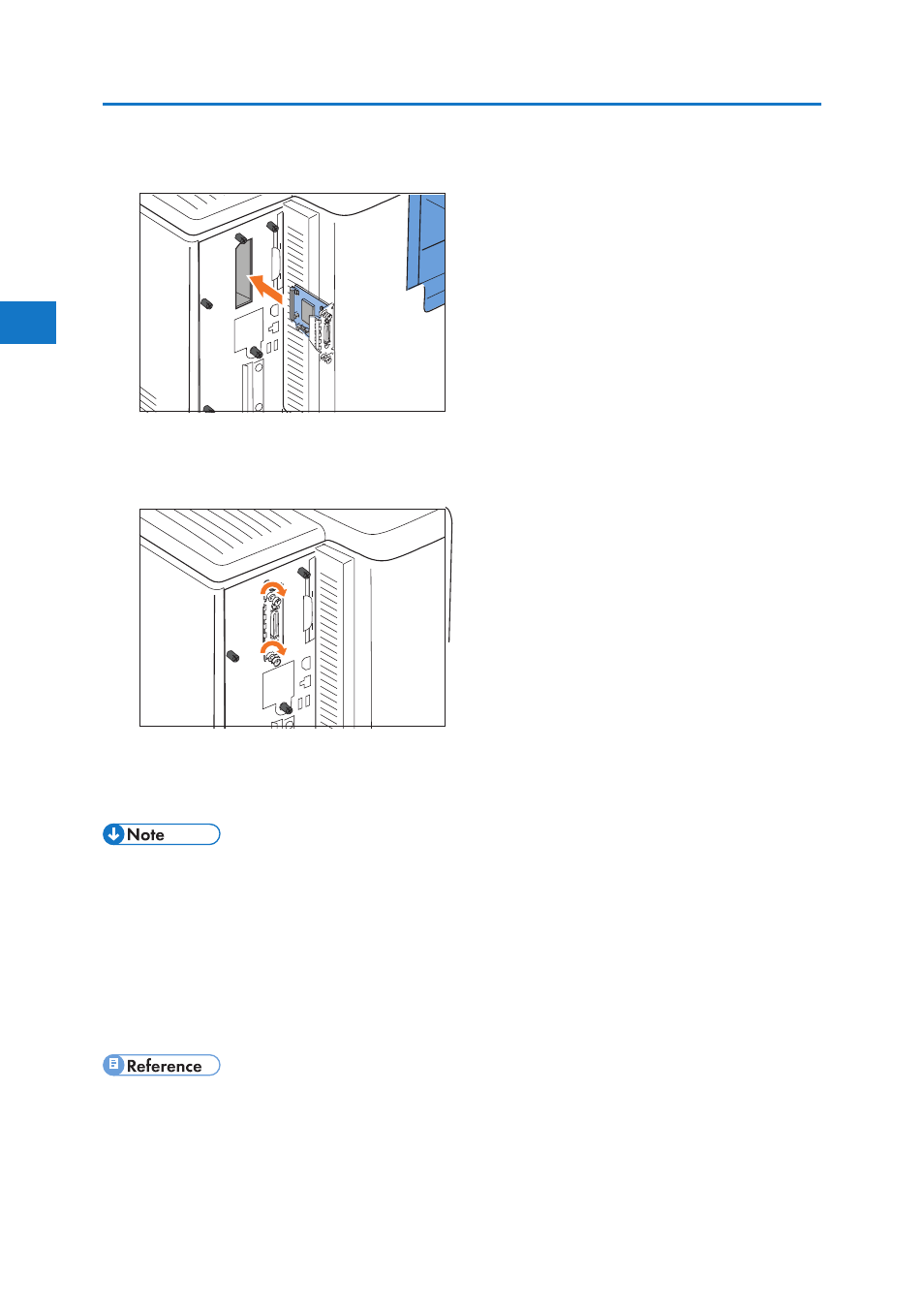

4. Fully insert the IEEE 1284 interface board.

BMV177S

Confirm that the IEEE 1284 interface board is firmly connected to the controller board.

5. Tighten the two screws to secure the interface board.

BMV178S

6. Plug in the power cord, and then turn on the printer.

7. Print the configuration page to confirm that the board was attached correctly.

• Confirm that the board was correctly installed by printing the configuration page. If it is correctly

installed, “Parallel Interface” will appear for “Device Connection” on the configuration page.

• If the board was not installed properly, repeat the procedure from the beginning. If it cannot be

installed correctly even after reattempting installation, contact your sales or service representative.

• For information on printing the configuration page, see “List/Test Print Menu”, Software Guide.

• “Parallel Cable Connection”
