Inspecting Fiber Ends
70
FIP-400B
Clearing Power Meter Measurements Automatically
Clearing Power Meter Measurements
Automatically
Measurements can be automatically erased from memory upon returning
to the Live video mode. This option is present on all platforms even if no
power meter is available, except on computers.
To clear power meter measurements automatically:

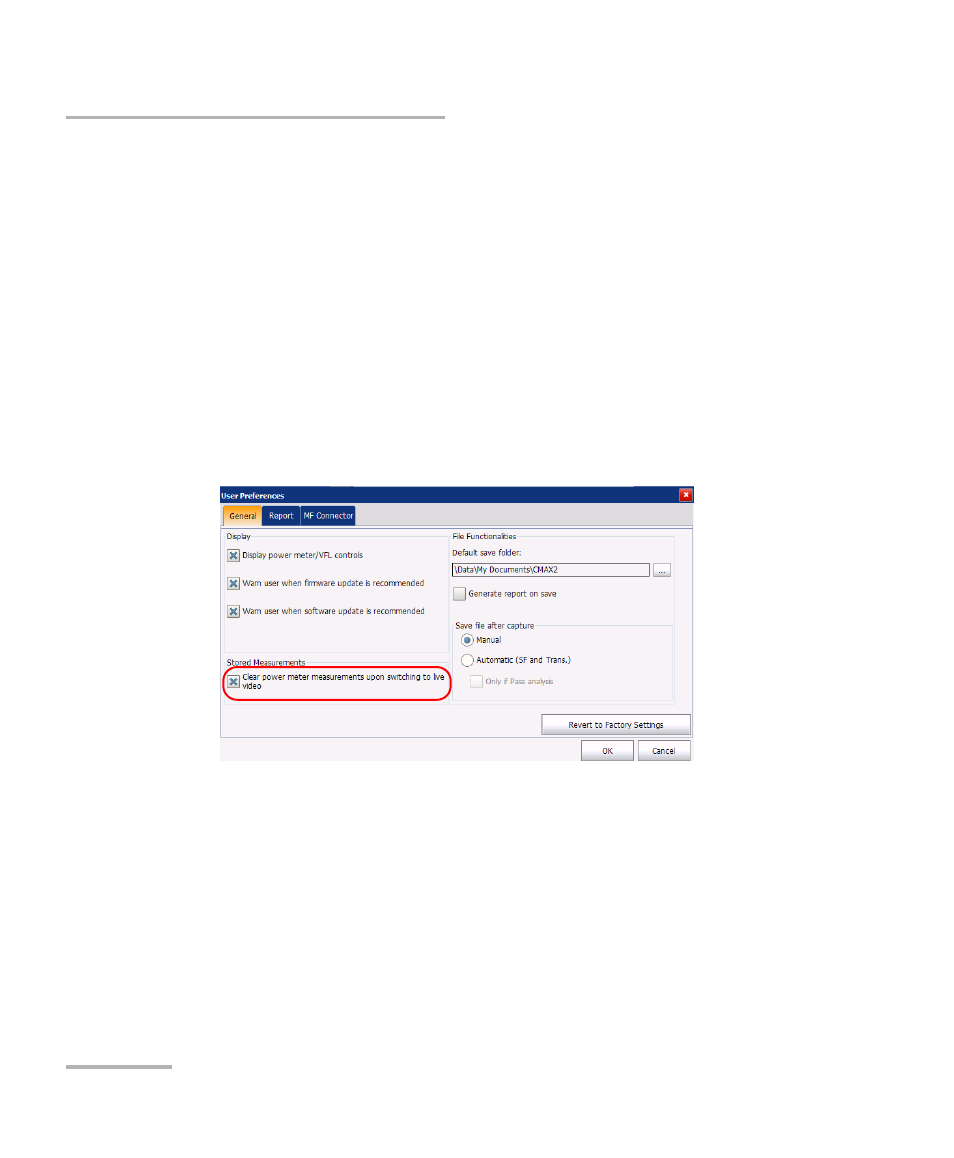

1. From the main window, select User Preferences.
2. Select the General tab.
3. Under Stored Measurements, select Clear power meter
measurements upon switching to live video.
4. Tap OK to confirm your choice and close the window.
