Fiber Inspection Probe 9
3 Setting up Your Fiber
Inspection Probe and
ConnectorMax2
You can change various settings in ConnectorMax2 such as the default
storage location or the automated file name. These settings are stored for
each user and kept for future work sessions.
Changing the Fiber Inspection Probe Tip
You can use various tips depending on the type of connector you are
inspecting. For more information about tips you can use, see the Fiber
Inspection Probe Tip Compatibility Chart on page 95, or contact your
vendor for additional information.

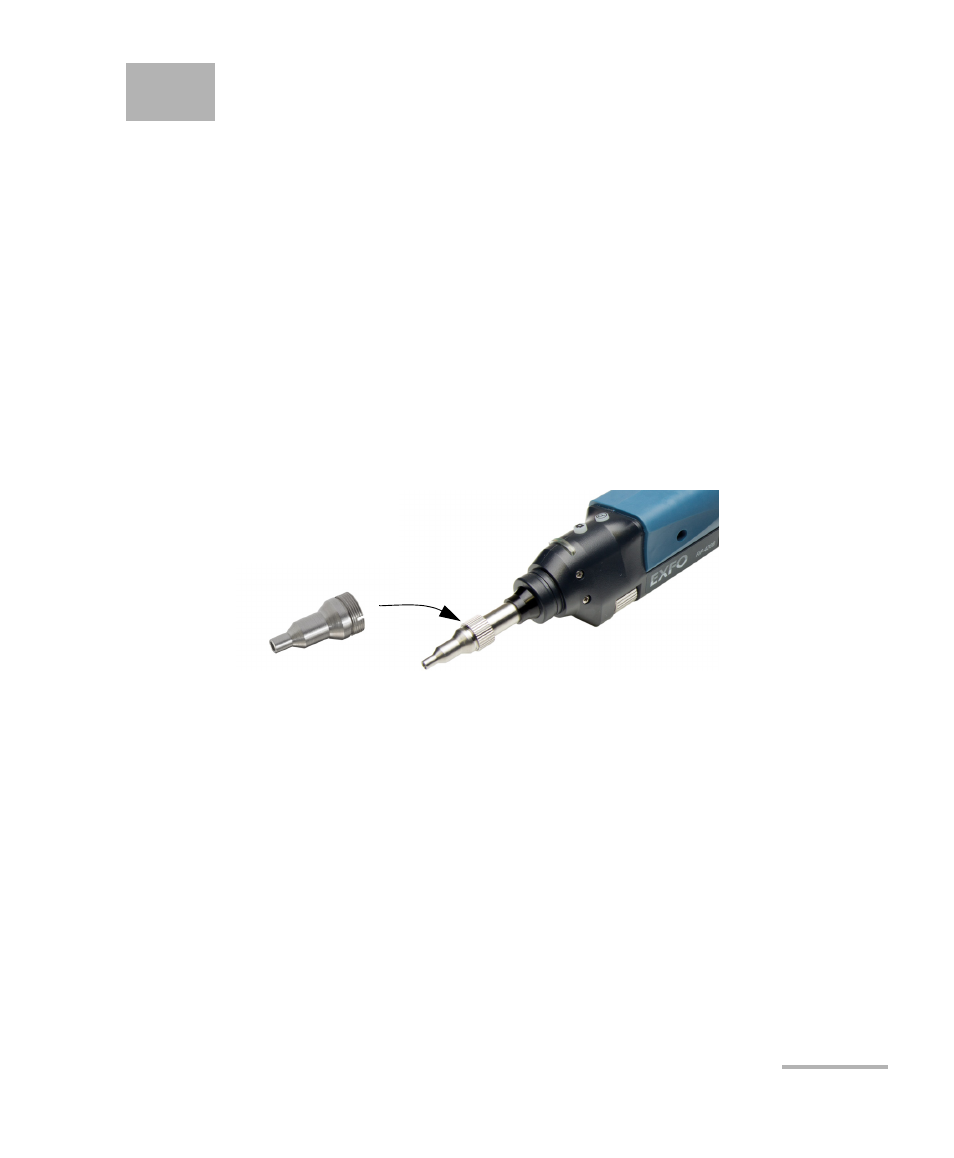

To change a tip:
1. Untighten the tip’s retaining nut.
2. Remove the tip.
3. Insert a new tip.
4. Adjust the tip to the notch.
5. Retighten the retaining nut.
