Inspecting Fiber Ends
50
FIP-400B
Displaying Multifiber Connector Overlay
Displaying Multifiber Connector Overlay
By default, ConnectorMax2 displays the multifiber overlay only in high
magnification. The overlay is used to see which of the connectors in a
multifiber connector is being inspected. It is possible to see four fibers at a
time when the overlay is displayed.
Note: The FIP-410B probe does not display the overlay in multifiber.
To display the multifiber connector overlay:

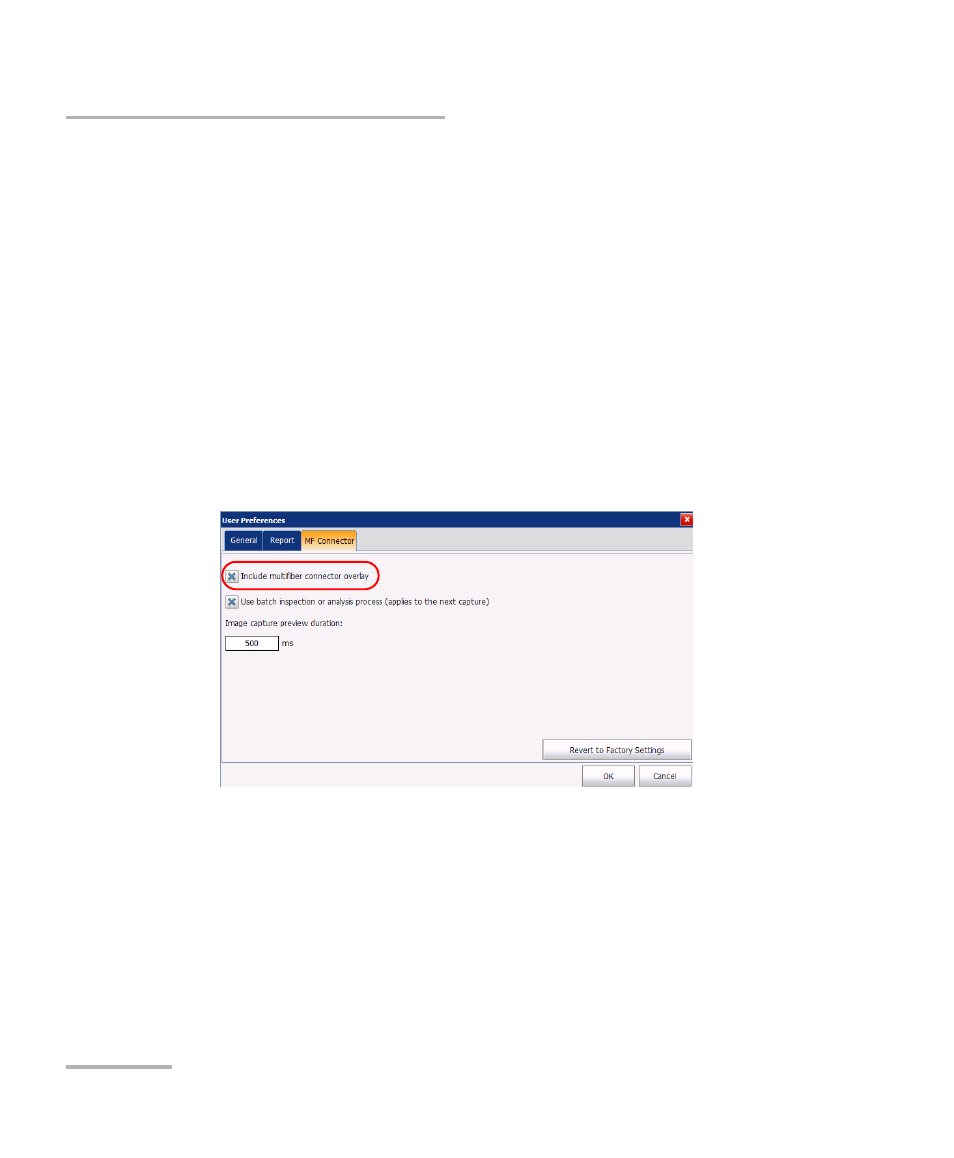

1. From the main window, select User Preferences.
2. Select the MF Connector tab.
3. Choose Include multifiber connector overlay.
4. Tap OK to confirm your choice and close the window.
