Inspecting Fiber Ends
52 FIP-400B
Inspecting Fiber Ends (Multifiber)

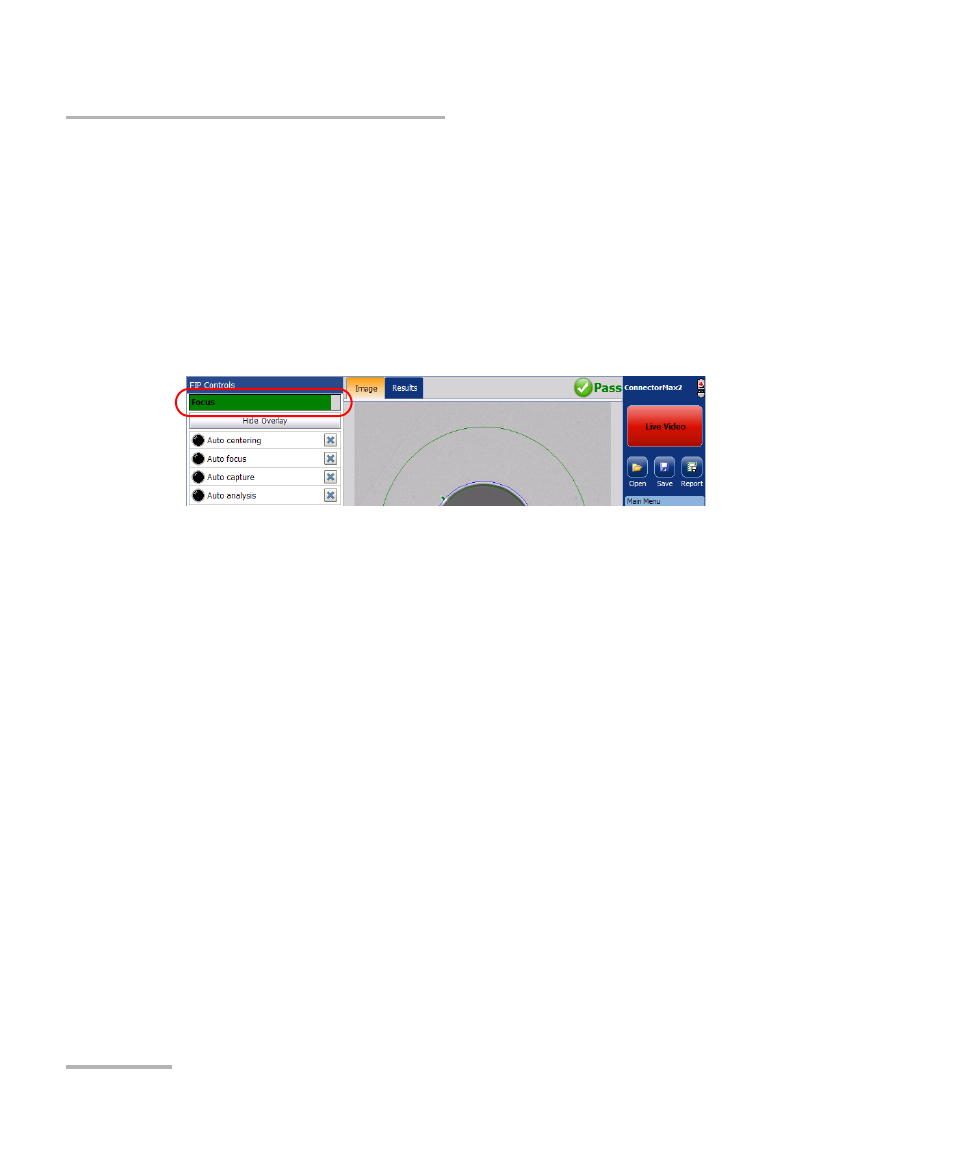

The focus indicator, which is displayed in the upper left part of the main
window, indicates whether the current view is optimized for a capture. A
green indicator shows a picture that can be captured and analyzed.
Analysis will be more difficult with a yellow indicator, and impossible with
a red indicator. A vertical black bar displays the peak focus level.
Note: The peak focus level is shown only when the auto focus sequence is
complete.
To speed up the process of inspecting and analyzing connectors and fibers,
you can use the batch inspection feature. With this feature, all fibers are
captured and previewed one after another for a configured period of time.
Then the analysis is launched when all fibers are inspected.
For more information on analysis, see Analyzing Captures on page 64.
