EXFO FIP-400B Fiber Inspection Probe and ConnectorMax2 User Manual
Page 59
Inspecting Fiber Ends
Fiber Inspection Probe
53
Inspecting Fiber Ends (Multifiber)
To inspect fiber ends (multifiber) in Live mode:
1. Install a probe tip (see Changing the Fiber Inspection Probe Tip on
2. Insert the fiber into the probe tip.
3. Insert replaceable APC or UPC nozzle in and tighten it (turn
clockwise).
4. For patchcord inspection, insert a mating tip.

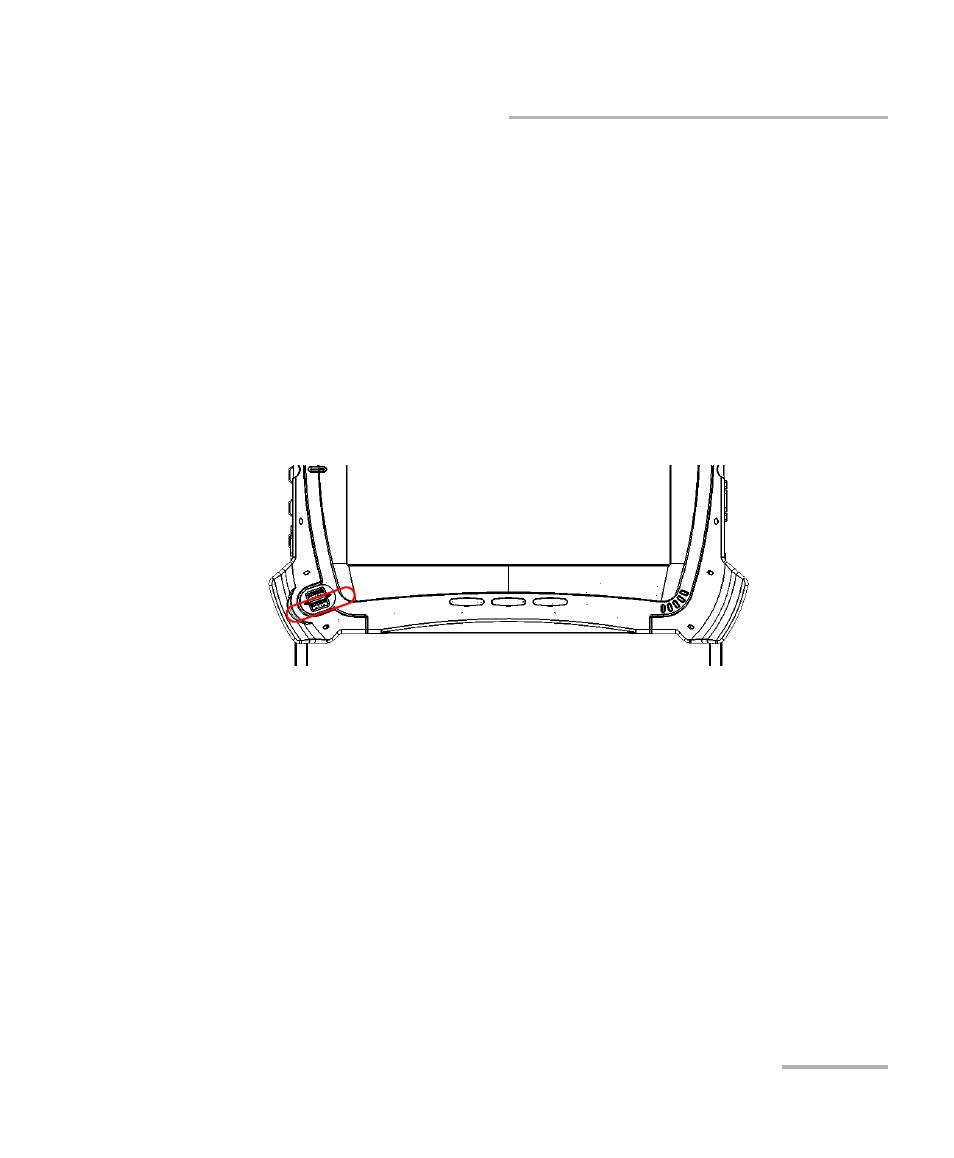

5. Connect your Fiber Inspection Probe to your unit. On an FTB-500,
connect the probe to the lower USB port located on the front of the
unit.
