EXFO FIP-400B Fiber Inspection Probe and ConnectorMax2 User Manual
Page 72
Inspecting Fiber Ends
66
FIP-400B
Analyzing Captures

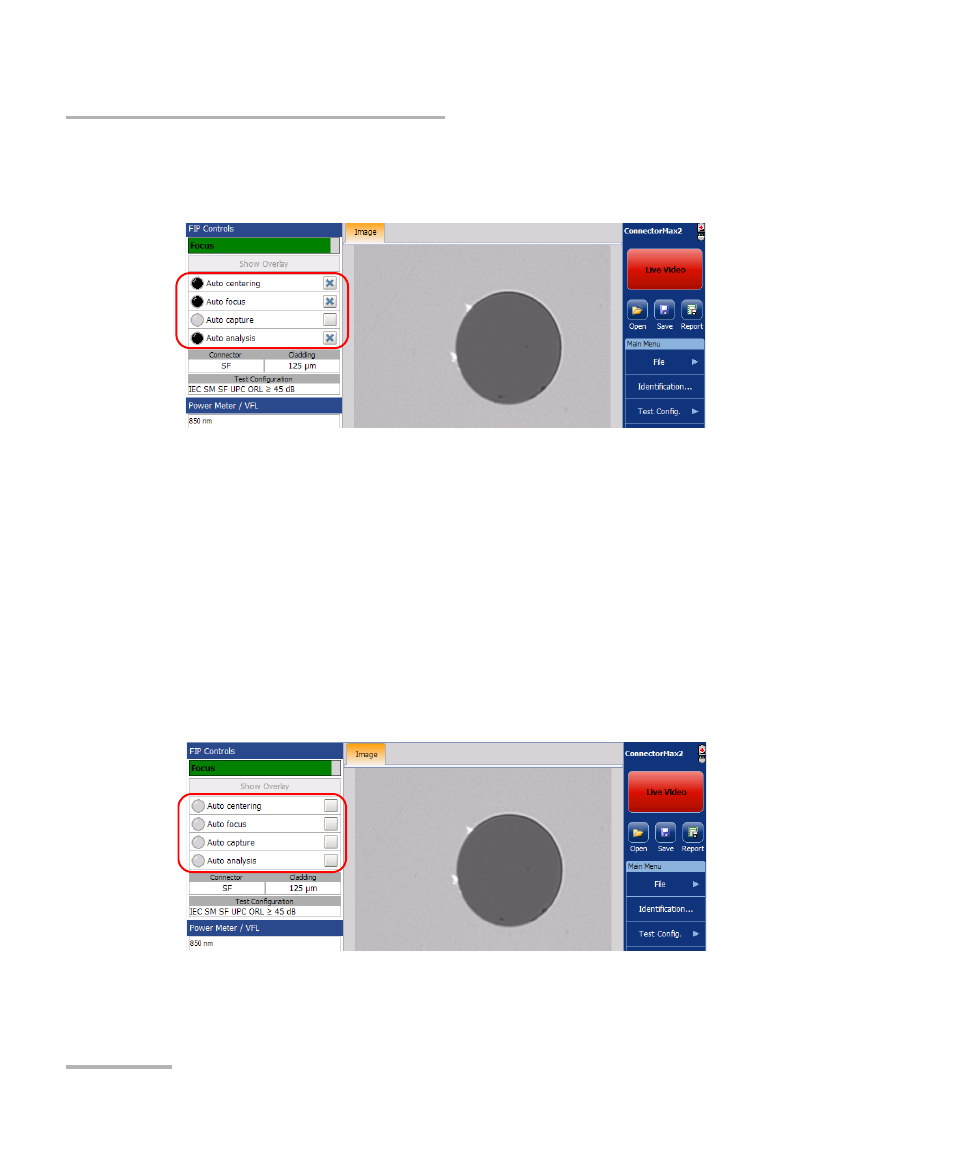

To select the analysis features:
Select the features you need for the capture.
The analysis results are available as soon as you tap Process. Fibers are
analyzed sequentially. The process time depends on the number of fibers
to be analyzed.
The global status is displayed in the upper right part of the window after an
analysis. The Image and Results tabs are displayed when a capture is
made (using the button from the button bar or on the probe). When you
are ready to inspect another fiber, you have to return to the Live video
mode first.
To disable the analysis features:
Clear the check box next to the corresponding features.
