EXFO FIP-400B Fiber Inspection Probe and ConnectorMax2 User Manual
Page 32
Setting up Your Fiber Inspection Probe and ConnectorMax2
26
FIP-400B
Managing and Selecting Test Configurations

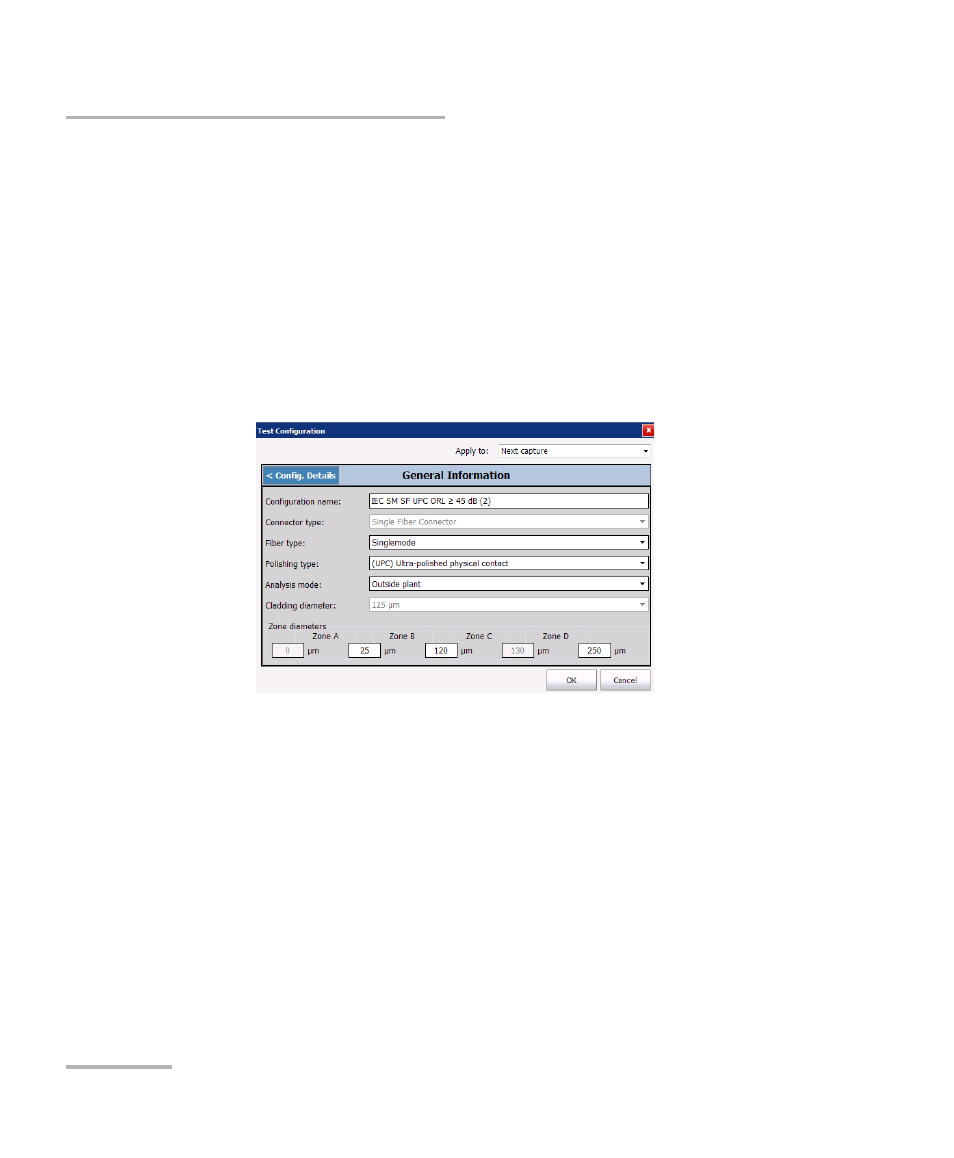

Analysis mode: Select the type of analysis between Outside plant
(selected by default) and Manufacturing. The manufacturing mode
is more sensitive for scratches and defects detection.
Cladding diameter: This value is set at 125 μm by default.
Zone diameters: You can change the zone dimension for single
fiber connectors and Transceiver fiber receptacles.
Note: Zone C (adhesive) cannot be removed and the superior diameter of zone D
cannot exceed 280 μm.
Note: When a multifiber connector is selected, zone D is not available.
Note: When you duplicate and edit a test configuration, you cannot change the
connector type field.
6c. Tap OK to confirm your choice and close the window.
OR
Use the Config. Details arrow to go back to the Configuration
Details window and configure other parameters.
