Setting Up Multifiber Inspection
Setting Up Multifiber Inspection
Inspecting and analyzing multifiber connectors can be done separately for
each fiber, or as a batch.
When the inspection and the analysis are done separately, there is a
transition between the Live Video mode and the Capture mode after an
image is captured.
To speed up the process of inspecting and analyzing connectors and fibers,
you can use the batch inspection feature. With this feature, all fibers are
captured and previewed one after the other for a configured period of
time. Then the analysis is launched when all fibers are inspected.

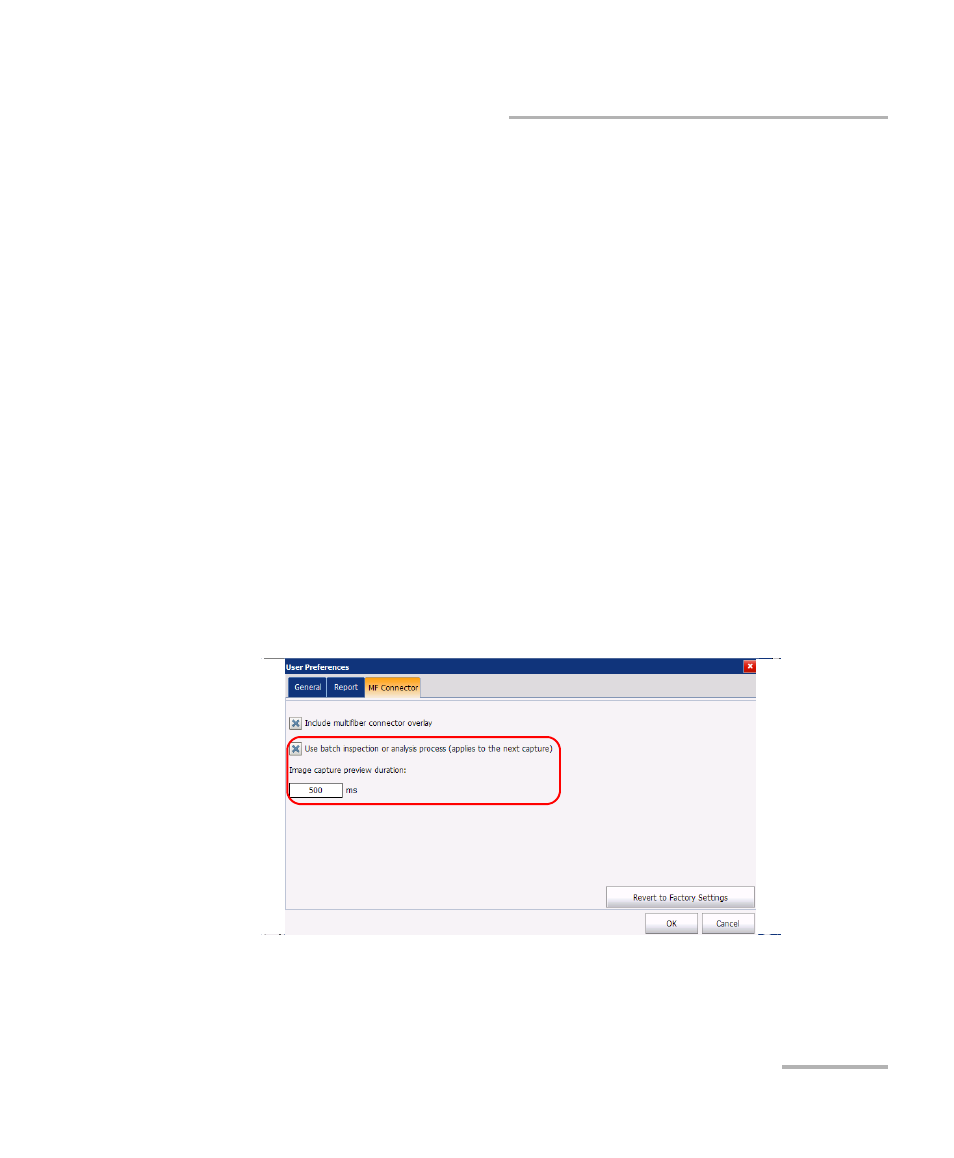

To use the batch inspection and analysis process:
1. From the main window, select User Preferences.
2. Select the MF Connector tab.
3. Choose Use batch inspection or analysis process (applies to the
next capture).
This enables the preview duration time box.
4. Enter the time you want the preview to last.
5. Tap OK to confirm your choice and close the window.
