Inspecting Fiber Ends
Fiber Inspection Probe
51
Inspecting Fiber Ends (Multifiber)

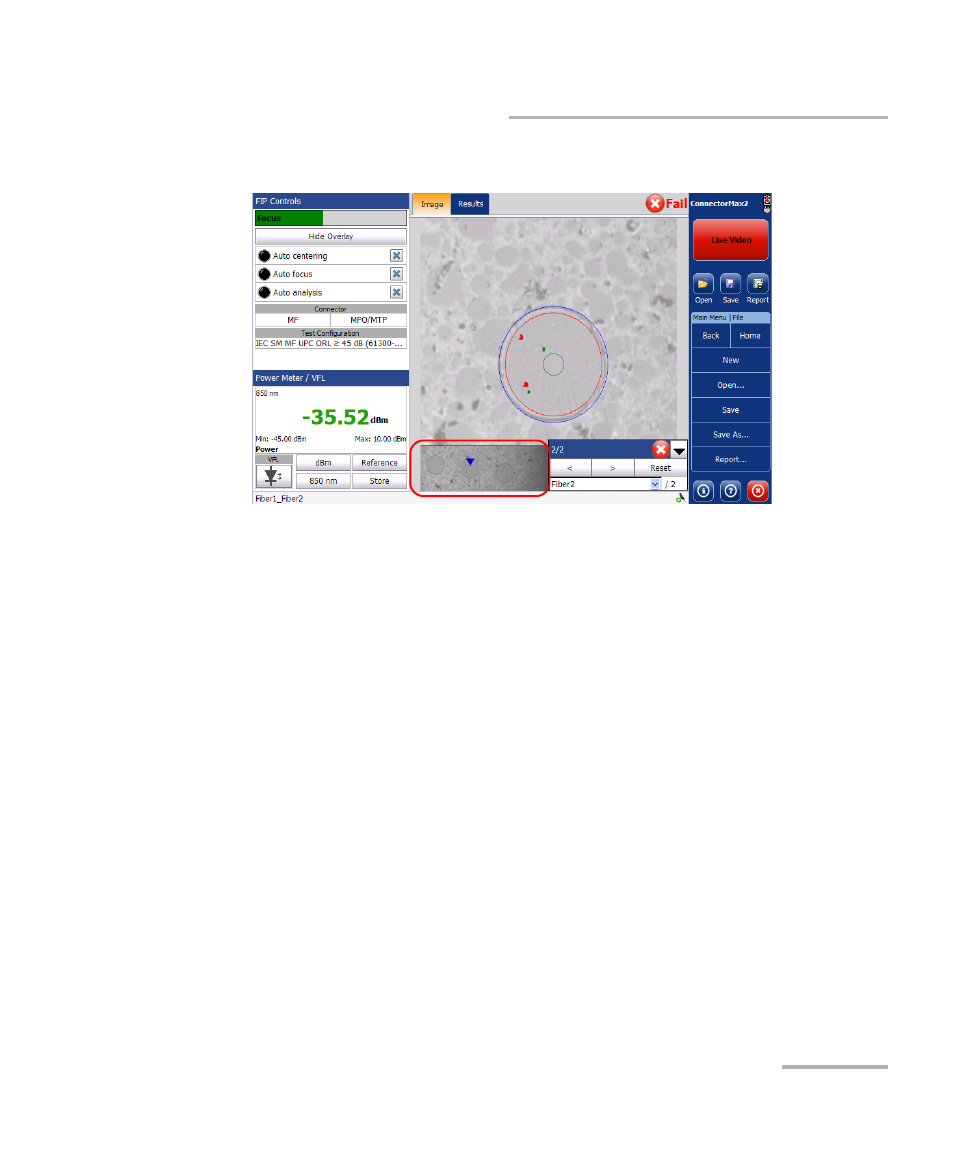

In the main window, a blue arrow now indicates the fiber under test.
Inspecting Fiber Ends (Multifiber)
The multifiber inspection with a FIP-430B probe allows you to see multiple
fibers at a time.
You can capture images of your inspections to include in reports, or save
them for future analyses. This is known as the Capture mode.
A digital watermark is added to the images generated by the application.
This also applies to ConnectorMax1 files converted to the ConnectorMax2
format.
