EXFO FIP-400B Fiber Inspection Probe and ConnectorMax2 User Manual
Page 74
Inspecting Fiber Ends
68
FIP-400B
Analyzing Captures

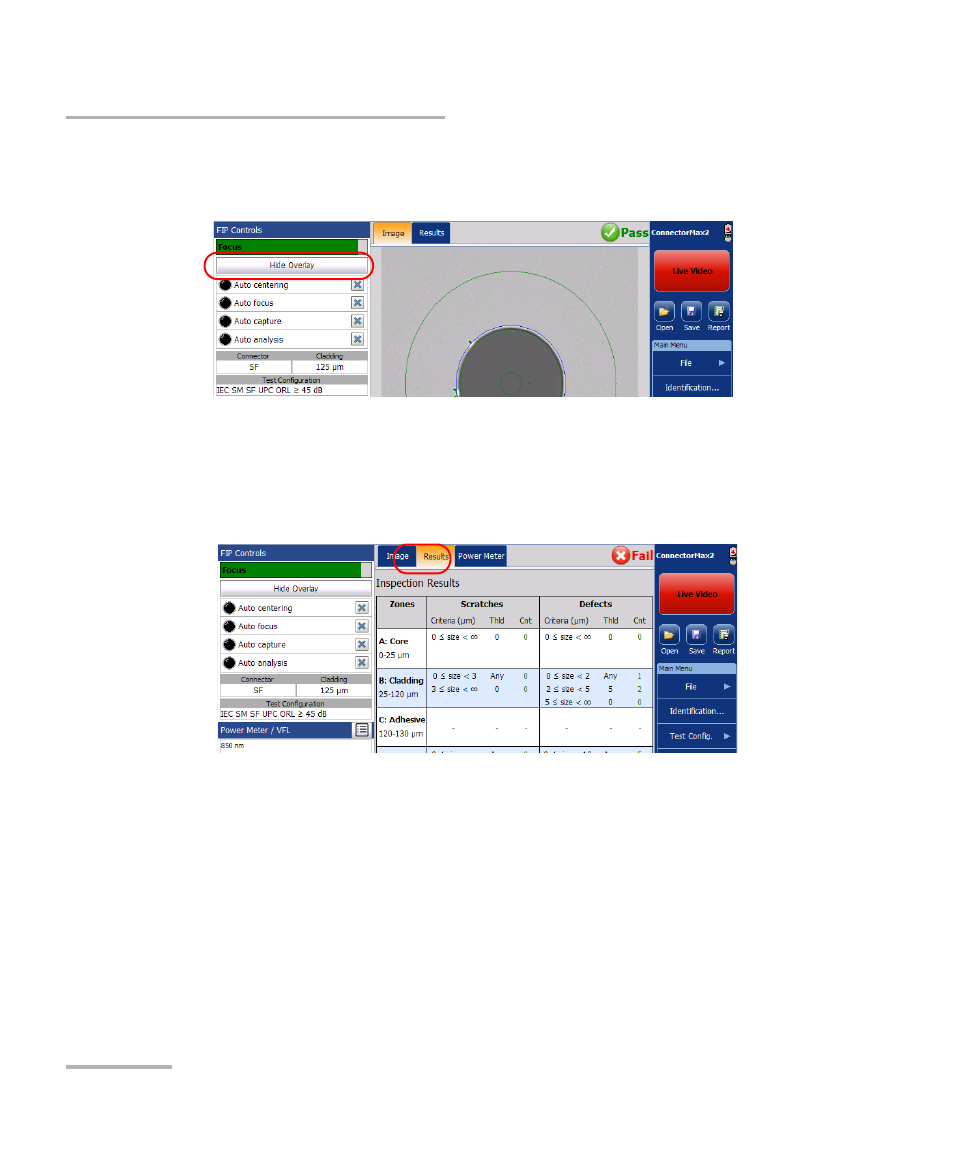

By default, the overlay is shown after an analysis, but you can hide it
using the Hide Overlay button.
The Results tab shows detailed information for scratches and defects
detected in each test zone and the corresponding test status.
Note: When there is no analysis, the Results tab does not appear.
