EXFO FIP-400B Fiber Inspection Probe and ConnectorMax2 User Manual
Page 73
Inspecting Fiber Ends
Fiber Inspection Probe
67
Analyzing Captures

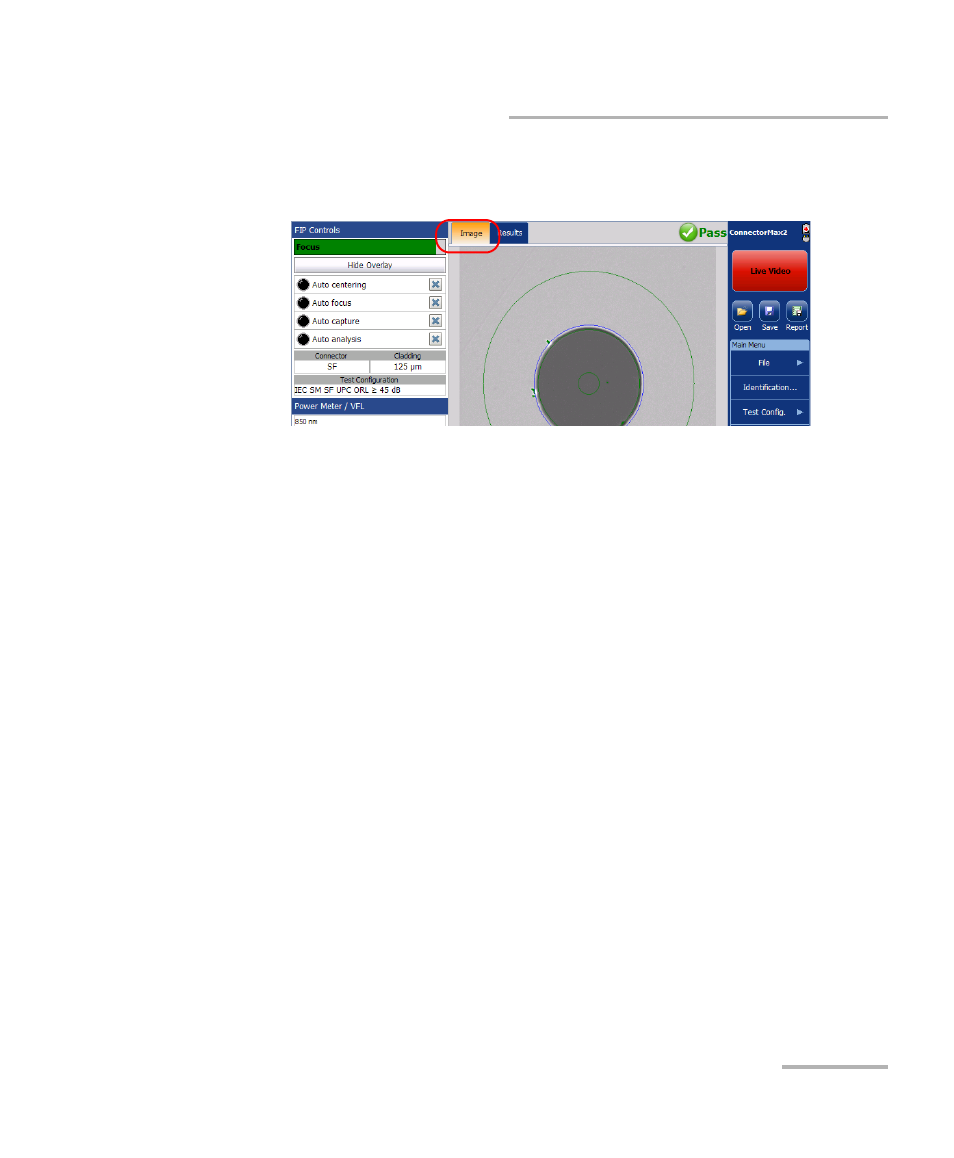

The Image tab shows the snapshot of the fiber when you captured it.
You can see all the anomalies that have been detected.
The overlay shows the status of the analysis, the status per zone, the
analysis zones, any anomaly (defects, scratches) found on the fiber
endface, and the global status in the upper right part of the main
window. The color of the circles shows the status of the analysis zone:
Green: pass
Blue: no analysis was performed or the function is disabled
Red: fail
Note: You can change the diameter of the analysis zones. For more information,
