Setting up Your Fiber Inspection Probe and ConnectorMax2

Fiber Inspection Probe

17

Setting up Autonaming

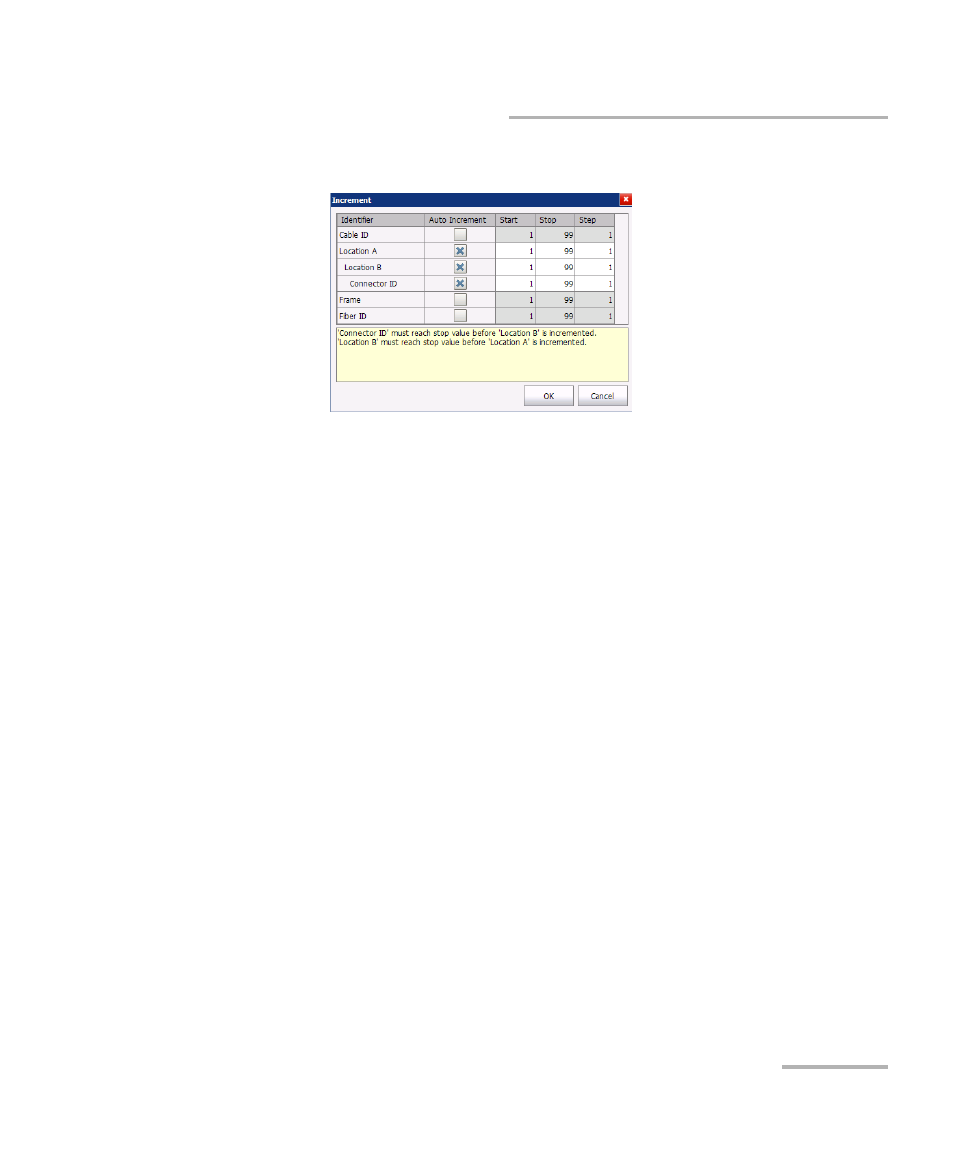

4c. Enter the start, stop and increment values as desired.

Note: The identifiers are processed in order, from the one with the largest

indentation to the one with the smallest. For a given identifier, when the
increment value reaches the stop value, the incrementation automatically
switches to the next identifier. The order of the identifiers in the increment
window (and thereby the order of increment) follows the order of the
identification window.

Note: An identifier set to None will not appear in the increment window.

Note: To decrement values, the start number must be higher than the stop

number.

4d. Tap OK to return to the Identification window.
