Section 1: Setting Up and Using the i.LON 600 L ON W ORKS /IP Server
24V Power for Models 72603 and 72604
i.LON 600 models 72603 and 72604 operate with a supply voltage of 24VAC/DC ±33%.
The low-voltage power source must be capable of providing 500 mA (average) of
current. The 24V version of the i.LON 600 is equipped with a Polyfuse that automatically
resets.

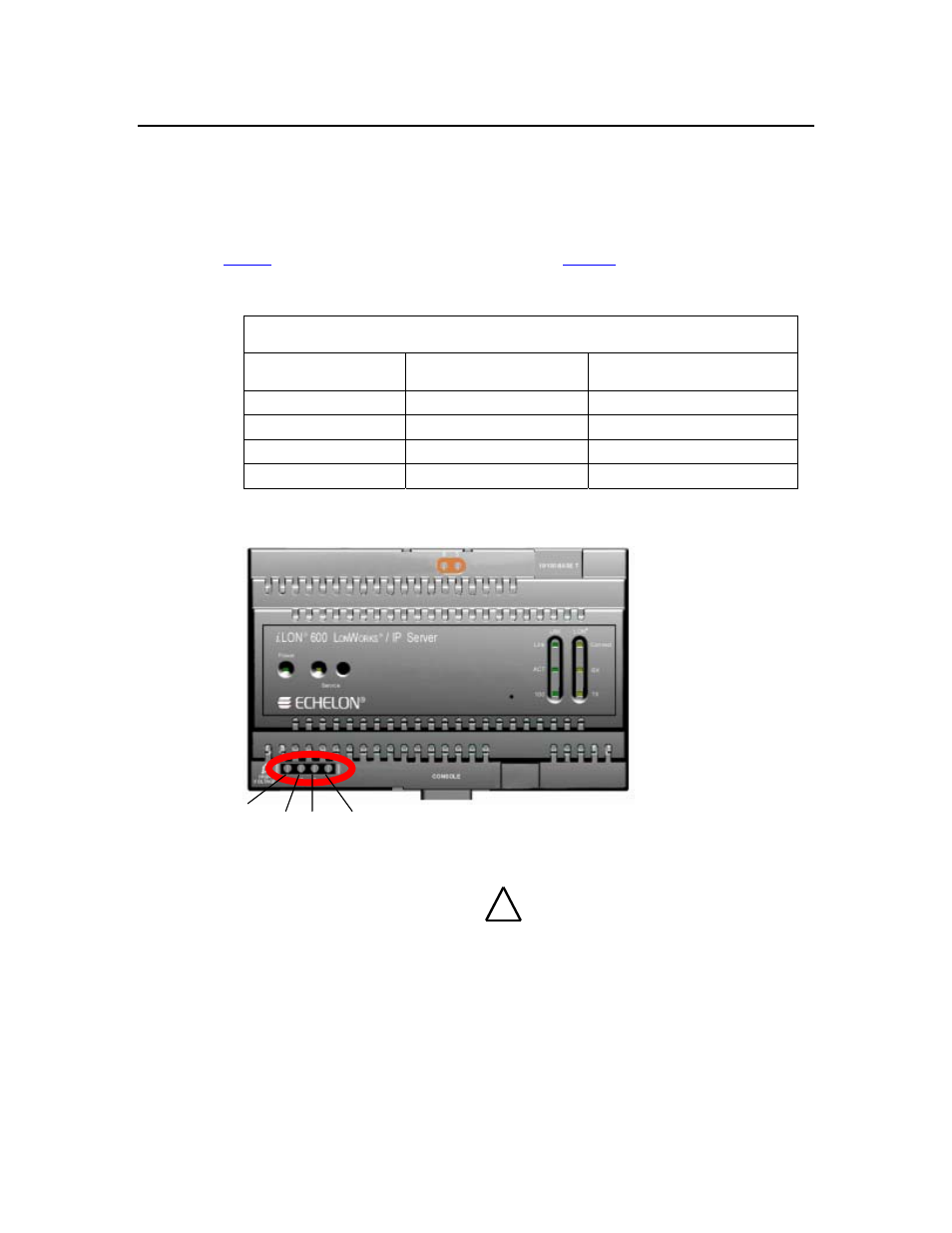

Table 2 shows the 24 Volt connector assignments and Figure 5 shows the location of the
screw terminals.
Table 2. i.LON 600 Server 24 Volt Connections
Screw Terminal Enclosure Marking Connections
1 E Earth ground
2 24VAC/VDC 24V Connection #1
3 24VAC/VDC 24V Connection #2
4 NC No connect
GND
24 24
NC
Figure 5. 24V Screw Connectors
!
SAFETY WARNING
The i.LON 600 uses a non-replaceable Poly-carbonmonoflouride Lithium Coin battery.
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF UNUSED BATTERIES ACCORDING TO THE
INSTRUCTIONS.
10 Mounting, Cabling and Connections
