Section 1: Setting Up and Using the i.LON 600 L ON W ORKS /IP Server
Wiring Connections
The i.LON 600 is available in two versions, depending on the type of L ON W ORKS
channel you are using. Models 72601 and 72603 support the FT-10 free topology
channel, while models 72602 and 72604 support the TP/XF-1250 channel.
The i.LON 600 has two rows of screw terminal wiring connections, an RJ-45 (Ethernet)
data connection, and a DB-9 D-connector for connection to a console port.
Figure 3
shows the locations of all i.LON 600 connectors.

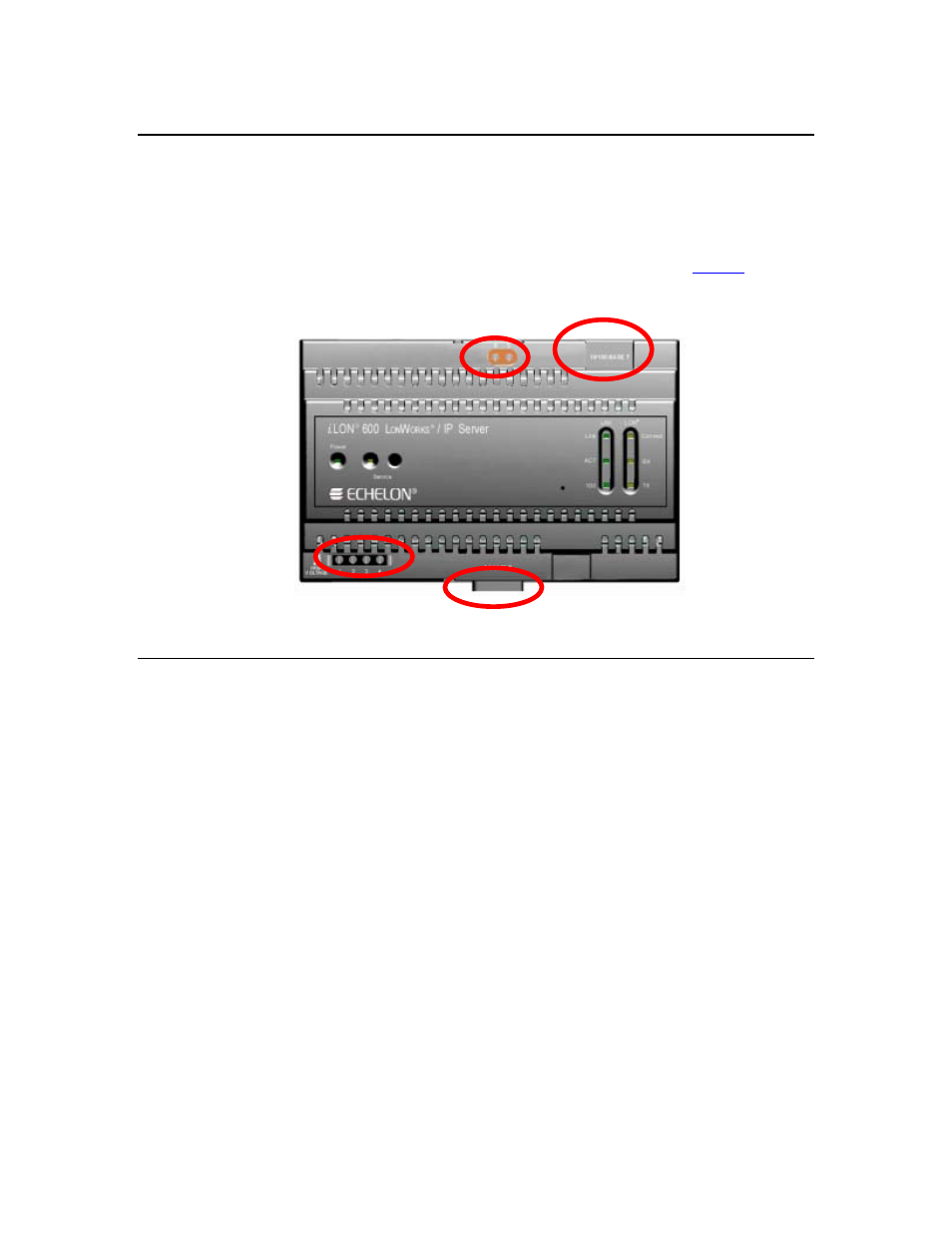

Figure 3. i.LON 600 Server Data and Console Connections
Screw Terminal Connectors
The screw terminals are located on the top and bottom edges of the enclosure, and are
numbered 1 to 4 (ascending from left to right) on the bottom, and from 5 to 6 (ascending
from right to left) on the top.
The screw terminals accept 0.34 – 4.0mm 2 (22 – 12AWG for the power connector and 16
– 26AWG for the LonTalk connector) gauge solid wire. The optimum tightening torque
for the screw terminals is 9.217 kg/cm (8 lbs. in.) maximum. For the LonTalk connector,
the optimum tightening torque is 6.913 kg/cm (6 lbs. in.). The ideal flathead screwdriver
tip width is 3mm (0.12”). Wires should be stripped to a length of 7mm (0.28”). Although
not required, it may be useful to use a soldering iron to tin the stripped lengths of any
stranded wires to prevent fraying and inadvertent contact with adjacent terminals.
The screw terminal connections can be divided into two groups:
• Power
• LonTalk
