Section 3: Appendixes

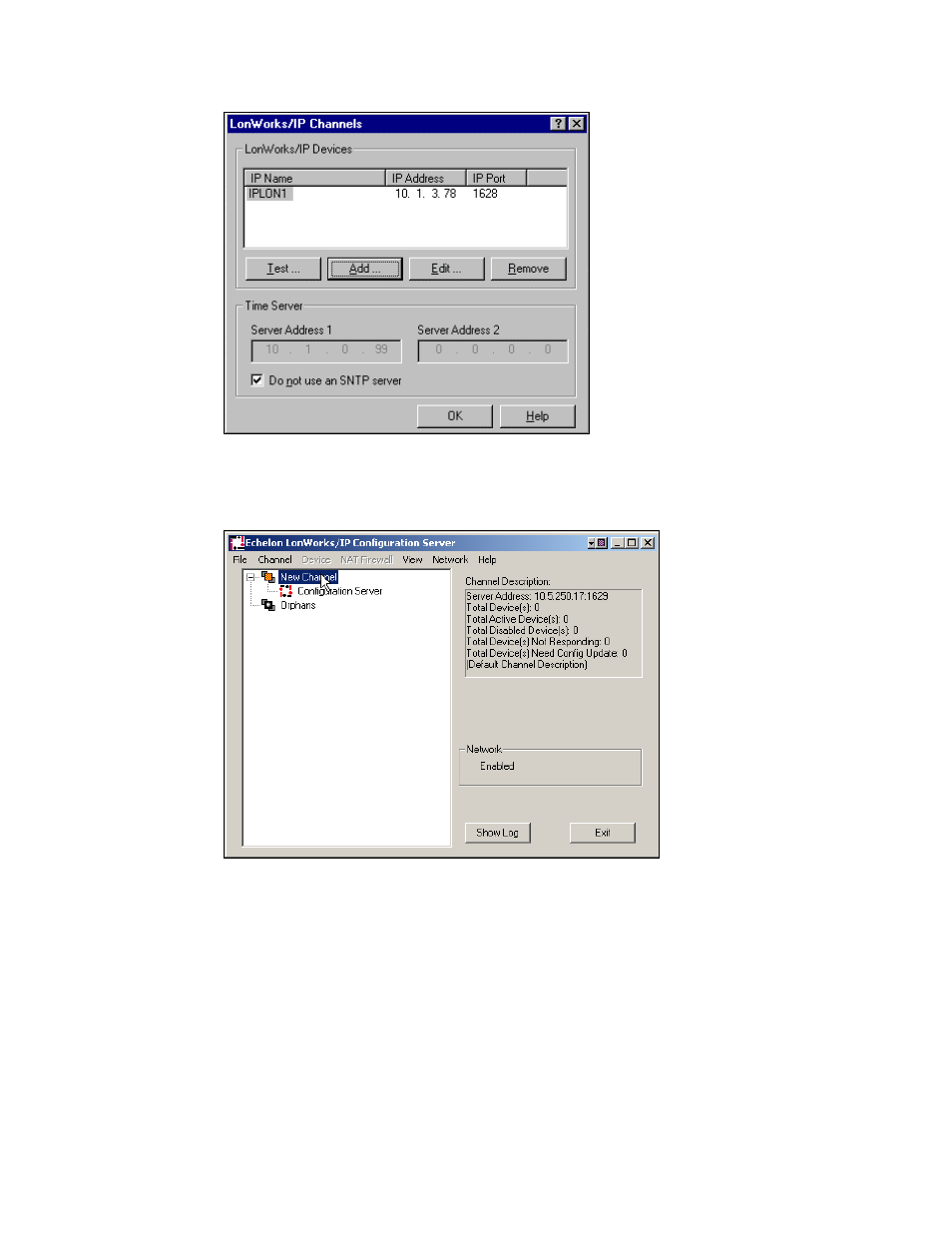

Figure 50. L ON W ORKS /IP Channels Control Panel
7. Start the Configuration Server application. From the Windows desktop click on
Start/Programs/Echelon i.LON 600/LonWorks-IP Configuration Server. The
Configuration Server main dialog appears:
Figure 51. Configuration Server
8. To rename New Channel to a more descriptive name, right-click on New Channel,
select Rename Channel, and enter the descriptive name.
9. Click on the Show Log button to display the Configuration Server log. Watch for
any error or warning messages that appear in the log window. To simultaneously
write the messages to a file, click the Log File button and supply a file name.
i.LON 600 User’s Guide 103
