3 installing the rx 400p receiver – TeeJet RX 400p User Manual
Page 22
RX 400p
98-05044 1-2
R1

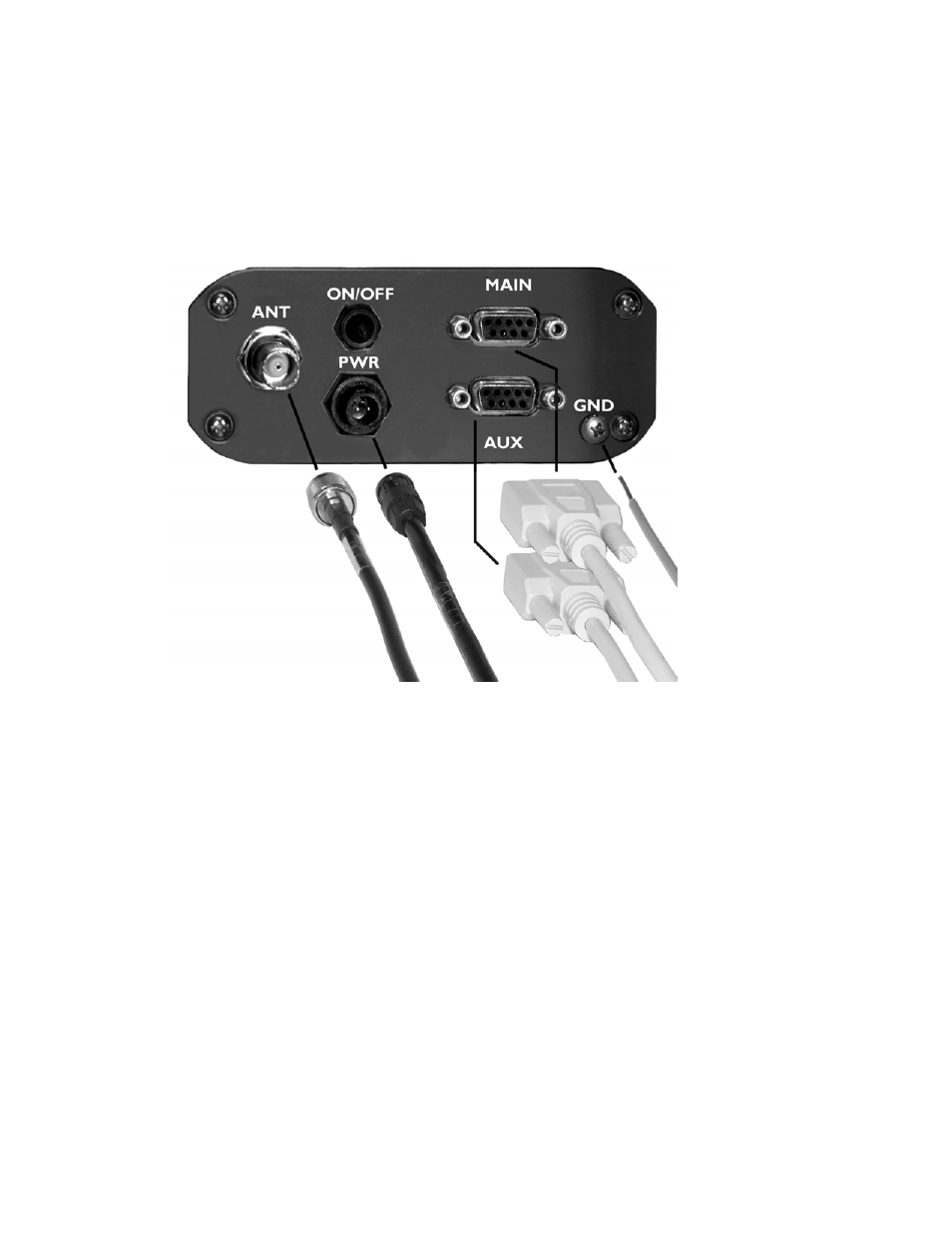

Figure 1-1 Cable Interface
1.3 Installing the RX 400p Receiver
To ensure optimum receiver performance and ease of operation, follow the guidelines
presented in the following sections.
1.3.1 Receiver
Placement
The flange mounting bracket supplied with the RX 400p is used to secure the
receiver to the selected mounting surface. You may install this bracket on the top or
