Custom Configuration
Custom configuration allows you to create arrays and to assign fault tolerance
one array at a time. To custom configure an array, make selections from the
Main Configuration View screen. Highlight the controller, array, or logical
drive you want to configure. Make a selection from the Options menu located

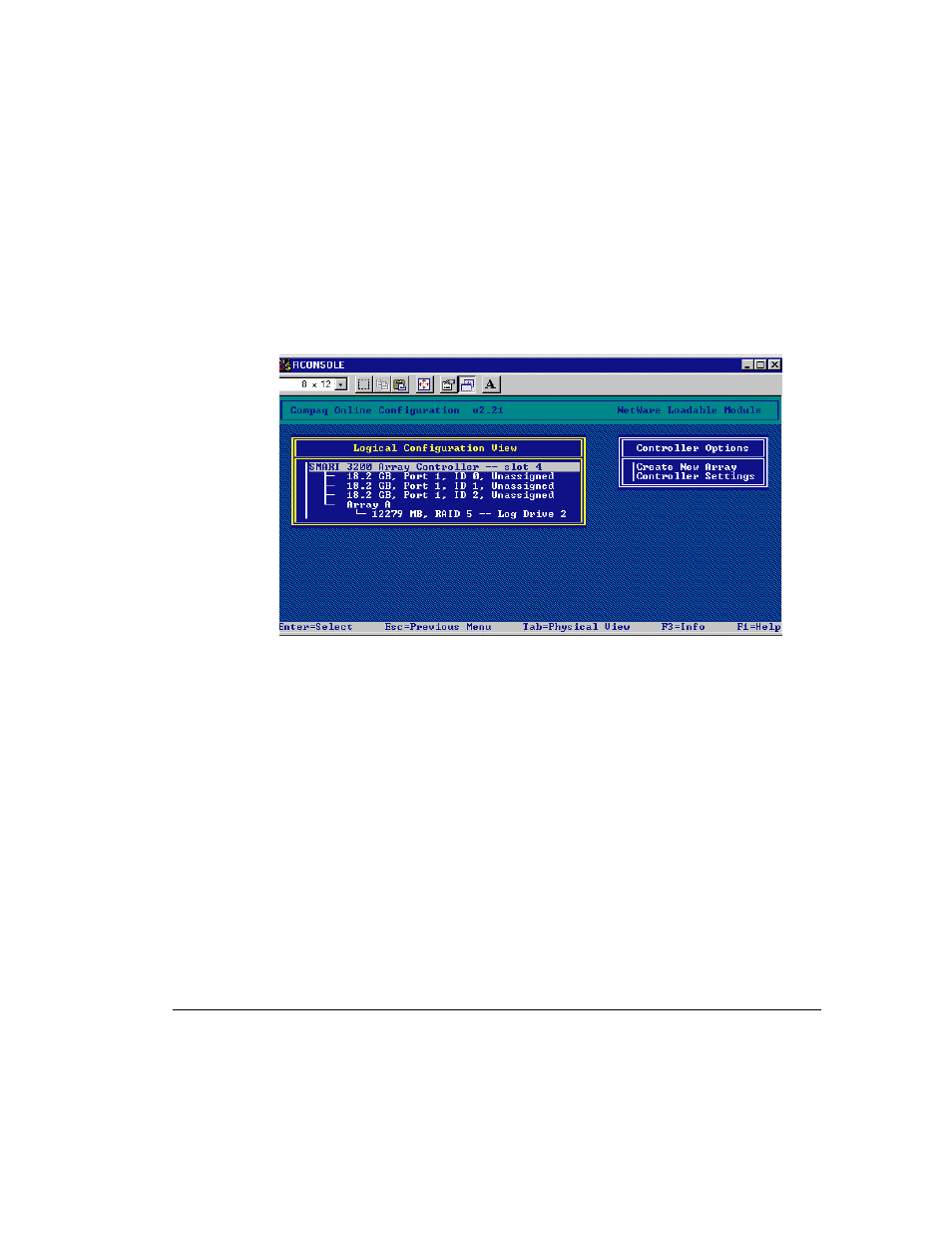

on the right side of the screen. Figure 5-24 shows the controller highlighted on
the left side of the screen and Controller Options on the right side of the screen.
Figure 5-24. Logical Configuration View screen
Use online help for instructions to complete configurations. The following
sections discuss CPQONLIN functions.
