Array Configuration Utility Screens
Compaq Array Configuration Utility Screen
The main configuration screen is the first screen displayed after the
configuration wizard is finished. Some areas are highlighted and some appear
gray. You cannot select gray areas until you select an item in the Configuration
View box providing that option.

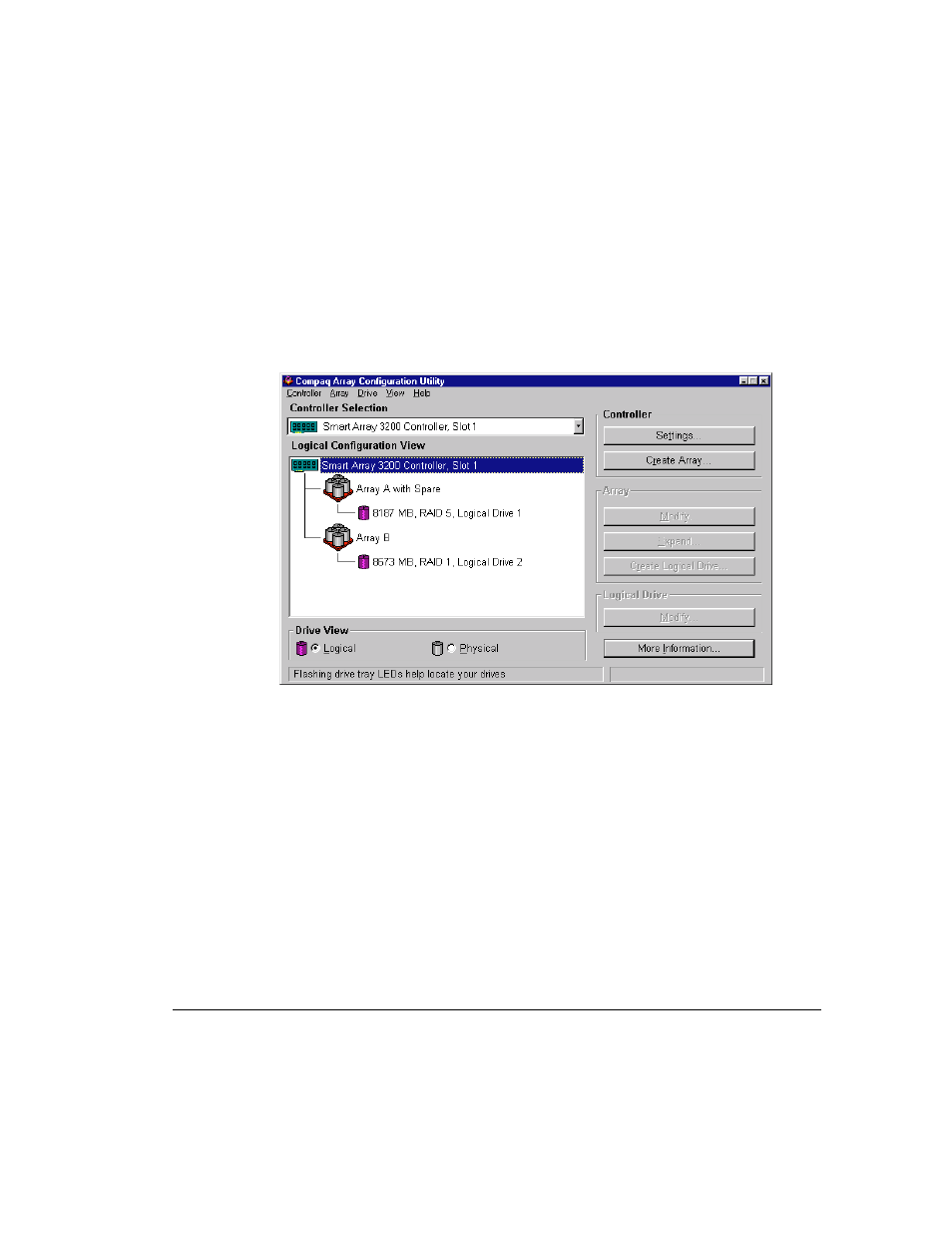

Figure 5-13. Compaq Array Configuration Utility screen
