Example—Expanding Array Capacity
For this example, assume a configuration similar to the previous example,
except that the fourth 4.3-GB drive was added later (where Array A does not
have a spare). Expand Array A to include the fourth drive. This scenario is
represented in the following figure with a single 4.3-GB drive unassigned.

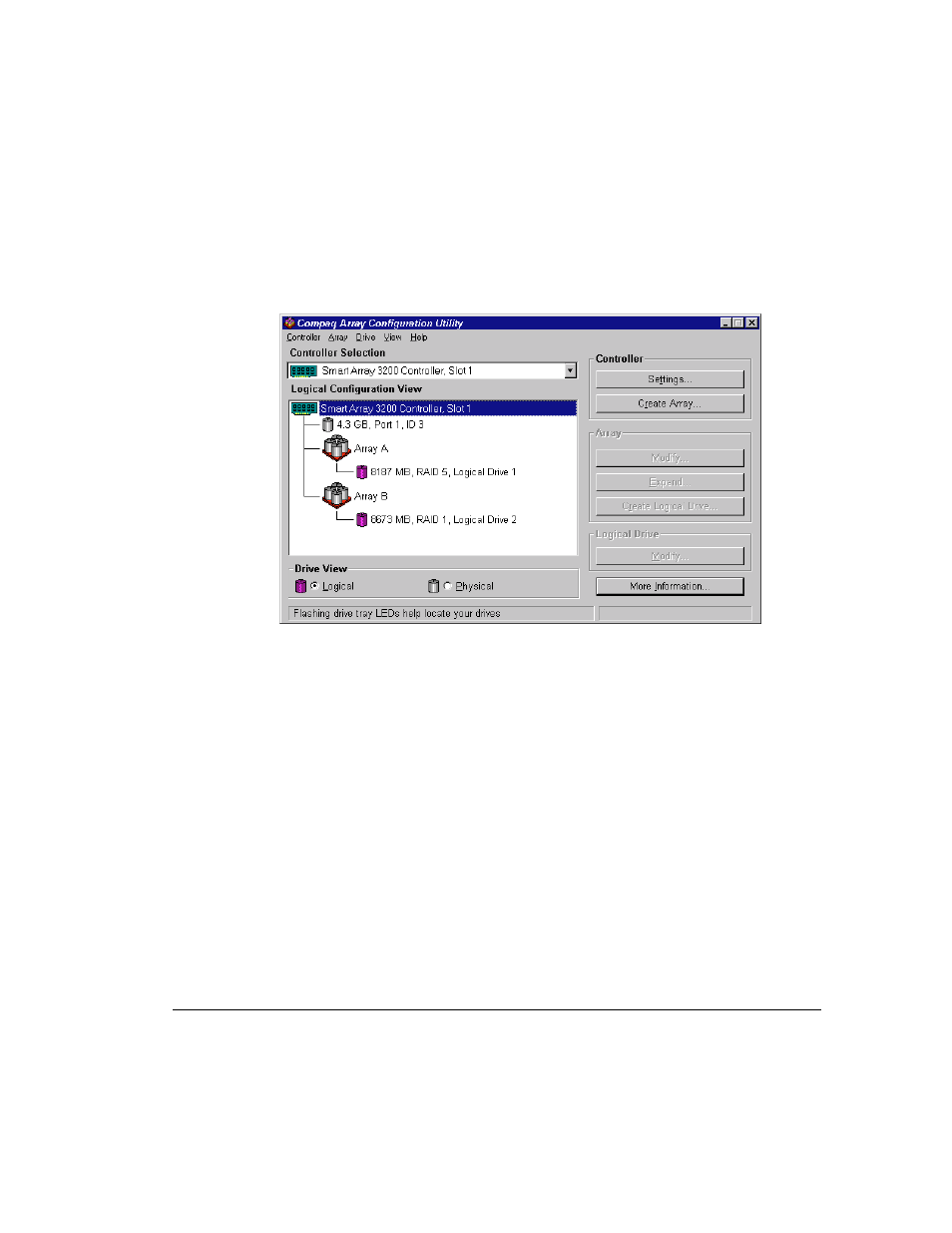

Figure 5-9. Array expansion example - Configuration View screen
To expand the capacity of Array A and create logical drive 2:
1. Select Array A.
2. Click the Expand button.
3. Select the unassigned 4.3-GB drive.
4. Click Assign Drive(s) to Array button.
