5-20 Running the Array Configuration Utility
Writer: Rickard Project: Compaq Smart Array 3200 Controller Reference Guide Comments: 340862-002
File Name: F-CH05.DOC Last Saved On: 12/7/98 1:22 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Compaq Array Configuration Utility
Screen Contents
Menu Bar
The menu bar contains the following pull-down menus:
■ Controller - Use to select a controller, save a configuration, create an
array, clear configuration, view settings, view controller information, run
configuration wizard, and exit the program.
■ Array - Use to delete, modify, or expand/extend the capacity of an array,
and to create logical drives and array information.
■ Drive - Use to delete or change logical drives, assign physical drives to
arrays, and create online spares and drive information.
■ View - Use to switch between the Physical Drive View or the Logical
Drive View in the Configuration View box.
■ Help - Use to access online help.
Controller Selection Box
The Controller Selection box is located in the top left corner of the main
configuration screen. Select this to see a list of the controllers installed in the
system. You can select a controller to view or configure. The highlighted
controller is shown in detail in the View Configuration list box.

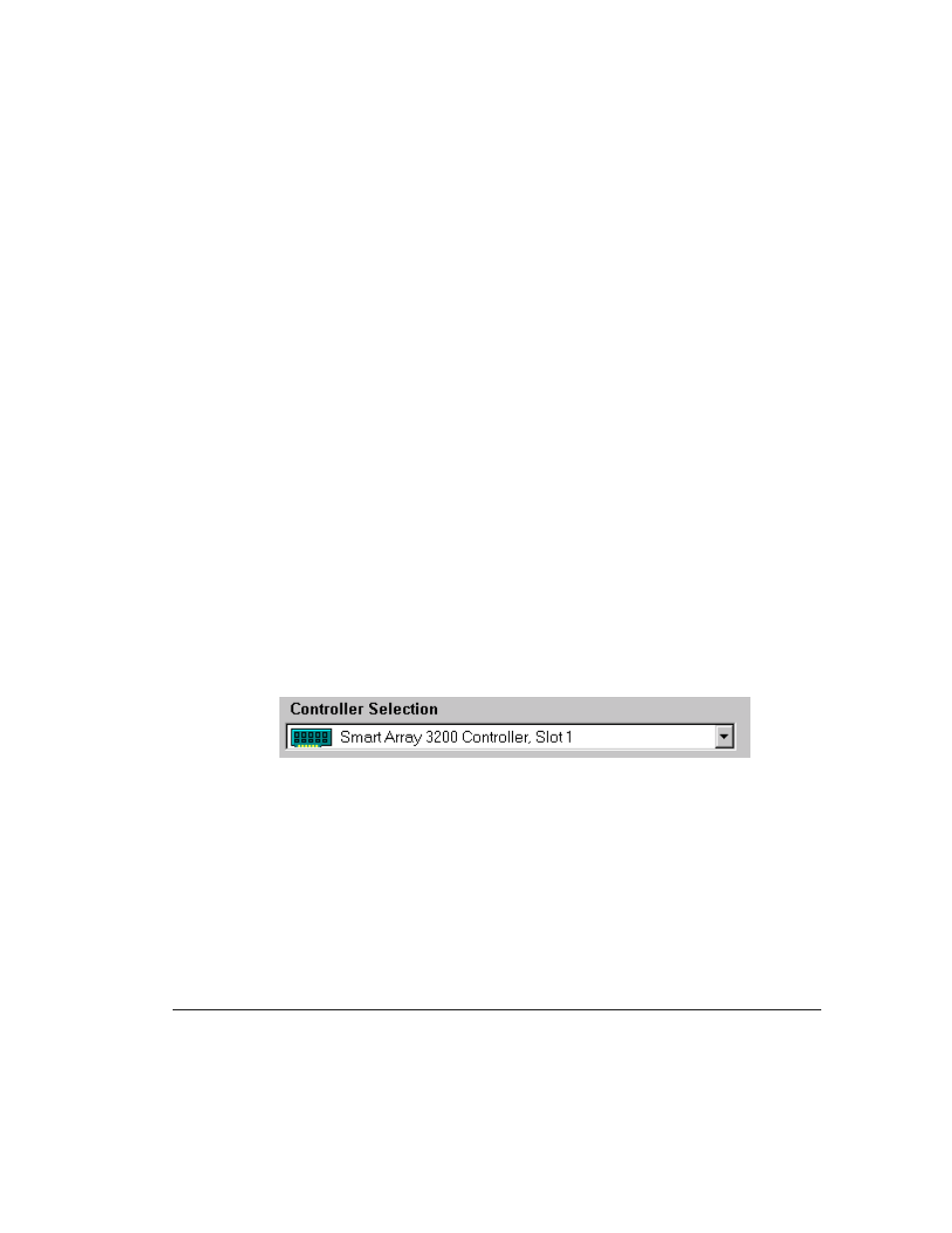

Figure 5-14. Controller Selection Box
