Installing the Array Accelerator
To install the Array Accelerator board on the Smart Array 3200 Controller:
1. Align the connectors and plug the Array Accelerator board onto the
Smart Array 3200 Controller 1. Be sure the connectors are fully mated
by squeezing the boards together at the connector side.
2. Align the plastic standoff on the Array Accelerator board with the slot in
the Smart Array 3200 Controller board. Push it through and rotate the top
of the standoff 90
°
to lock the board in place 2.
3. Align the plastic stabilizing bracket with the holes on both boards,
ensuring that the mated boards will fit between the lips on the bracket.
Push the bracket in place until the detents snap through the holes.
1
2

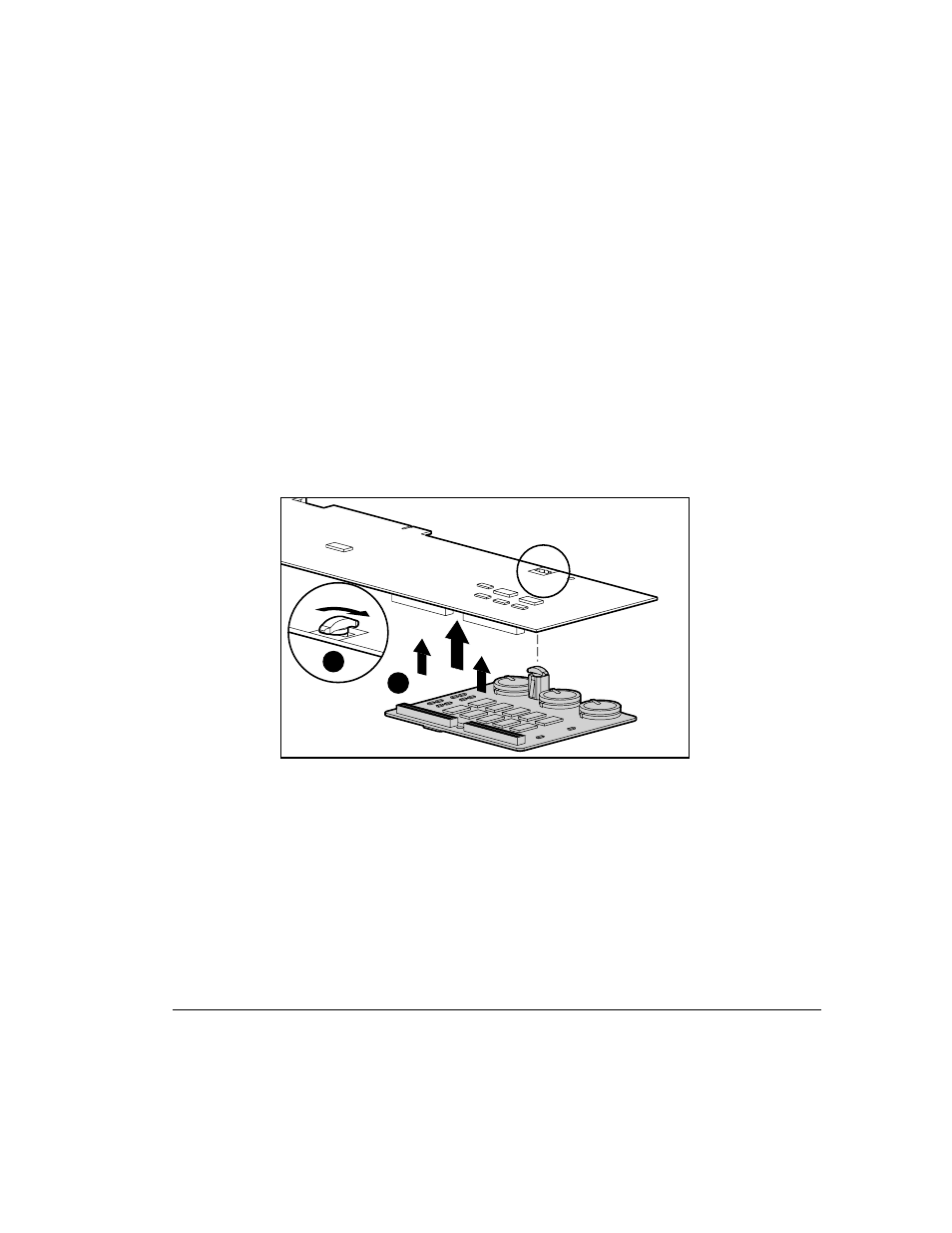

Figure F-2. Installing the Array Accelerator board on the Smart Array 3200 Array
Controller
