F-2 Replacing the Array Accelerator
Writer: Rickard Project: Compaq Smart Array 3200 Controller Reference Guide Comments: 340862-002
File Name: M-APPF.DOC Last Saved On: 12/2/98 2:08 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Removing the Array Accelerator
To remove the optional Array Accelerator from the controller board:
1. Twist the latch 1 90
°
to allow the standoff to pull through the controller
board.
2. Carefully pull the Array Accelerator daughterboard away 2 from the Smart
Array 3200 Controller board, unplugging the signal connectors.
1
2

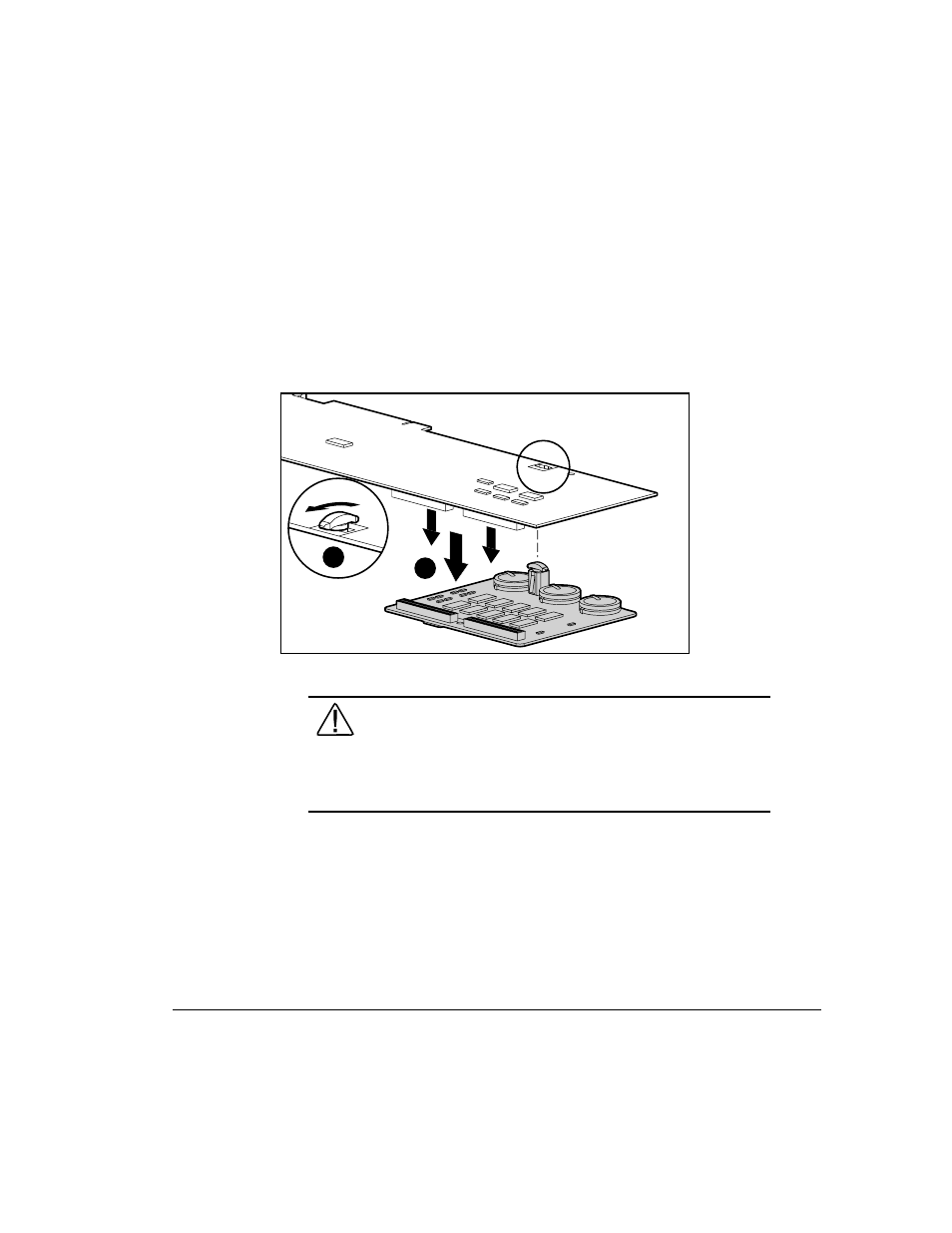

Figure F-1. Removing Array Accelerator board from the Smart Array 3200 Array Controller
WARNING: Do not abuse, recharge, disassemble, dispose of in
fire or heat above 90
°
C, incinerate, or expose to water or fire.
Disposal of the batteries or Array Accelerator module should be
accomplished within compliance of local regulations or returned
to Compaq Computer Corporation by established parts-return
methods.
