1-3
Compaq Smart Array 3200 Controller Reference Guide
Writer: Rickard Project: Compaq Smart Array 3200 Controller Reference Guide Comments: 340862-002
File Name: B-CH01.DOC Last Saved On: 12/7/98 8:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
About the
Smart Array 3200 Controller
The Smart Array 3200 Controller interface to the server is a Peripheral
Component Interface (PCI) bus. The PCI bus is a high-performance, 32-bit bus
with multiplexed address and data lines, and includes a parity signal. It provides
a high-speed (up to 132 MB/sec) path between the system board and the
controller. The Smart Array 3200 Controller is a PCI Bus Master device and
conforms to Rev. 2.1 of the PCI Local Bus Specification.
5
4
3
1
2

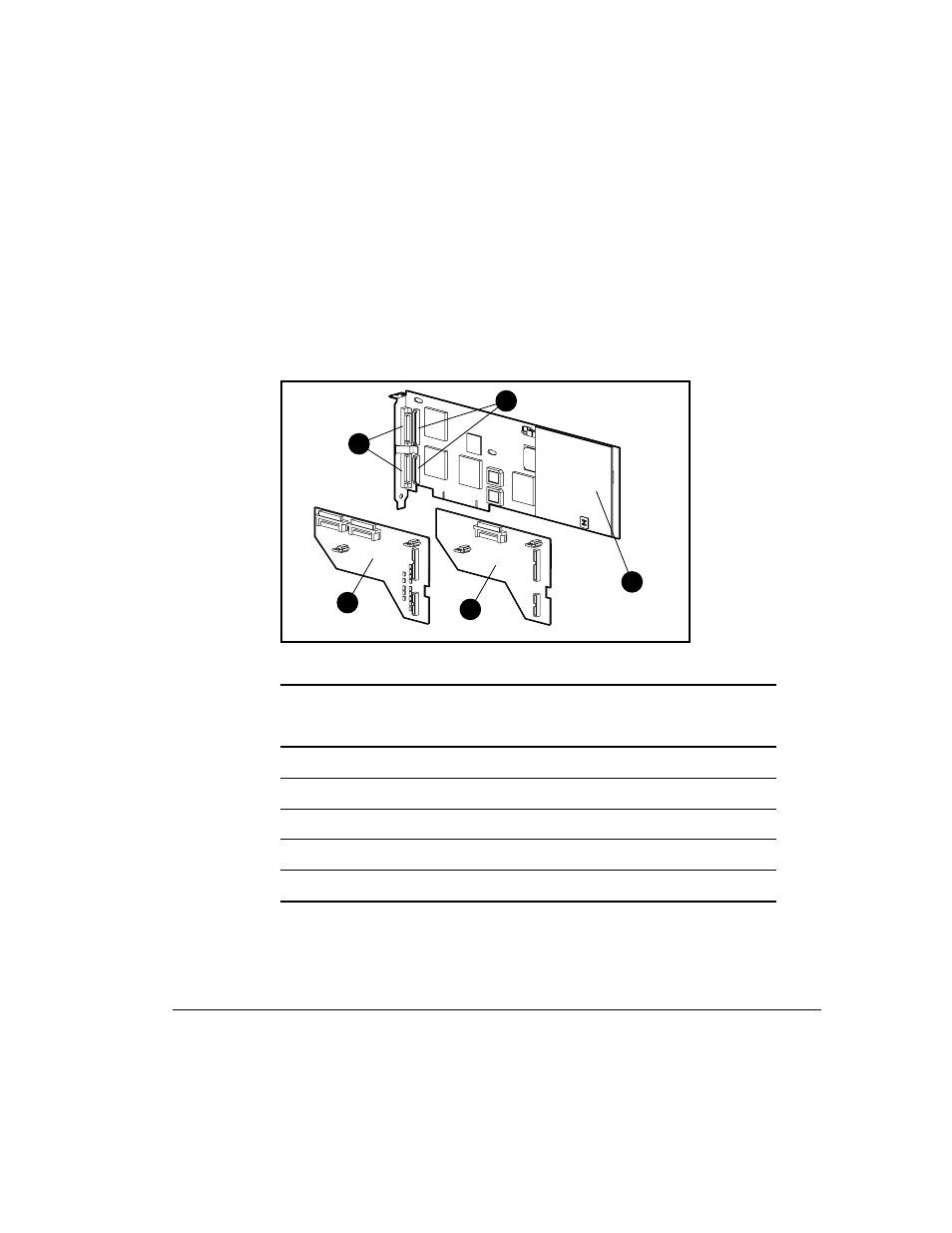

Figure 1-1. Smart Array 3200 Controller and daughterboards
Table 1-1
Smart Array 3200 Controller and Daughterboards
1 Two external Very High Density Cable Interconnect (VHDCI) connectors
2 Connectors to attach daughterboards
3 Daughterboard equipped with two internal wide SCSI 68-pin connectors
4 Daughterboard equipped with one internal wide SCSI 68-pin connector
5 Array accelerator board
