5-8 Running the Array Configuration Utility
Writer: Rickard Project: Compaq Smart Array 3200 Controller Reference Guide Comments: 340862-002
File Name: F-CH05.DOC Last Saved On: 12/7/98 1:22 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
3. Select the drive at Port 1:SCSI ID 3 and click the Assign Spare to Array
button. The right side of the Create Array screen should look similar to
the following figure.

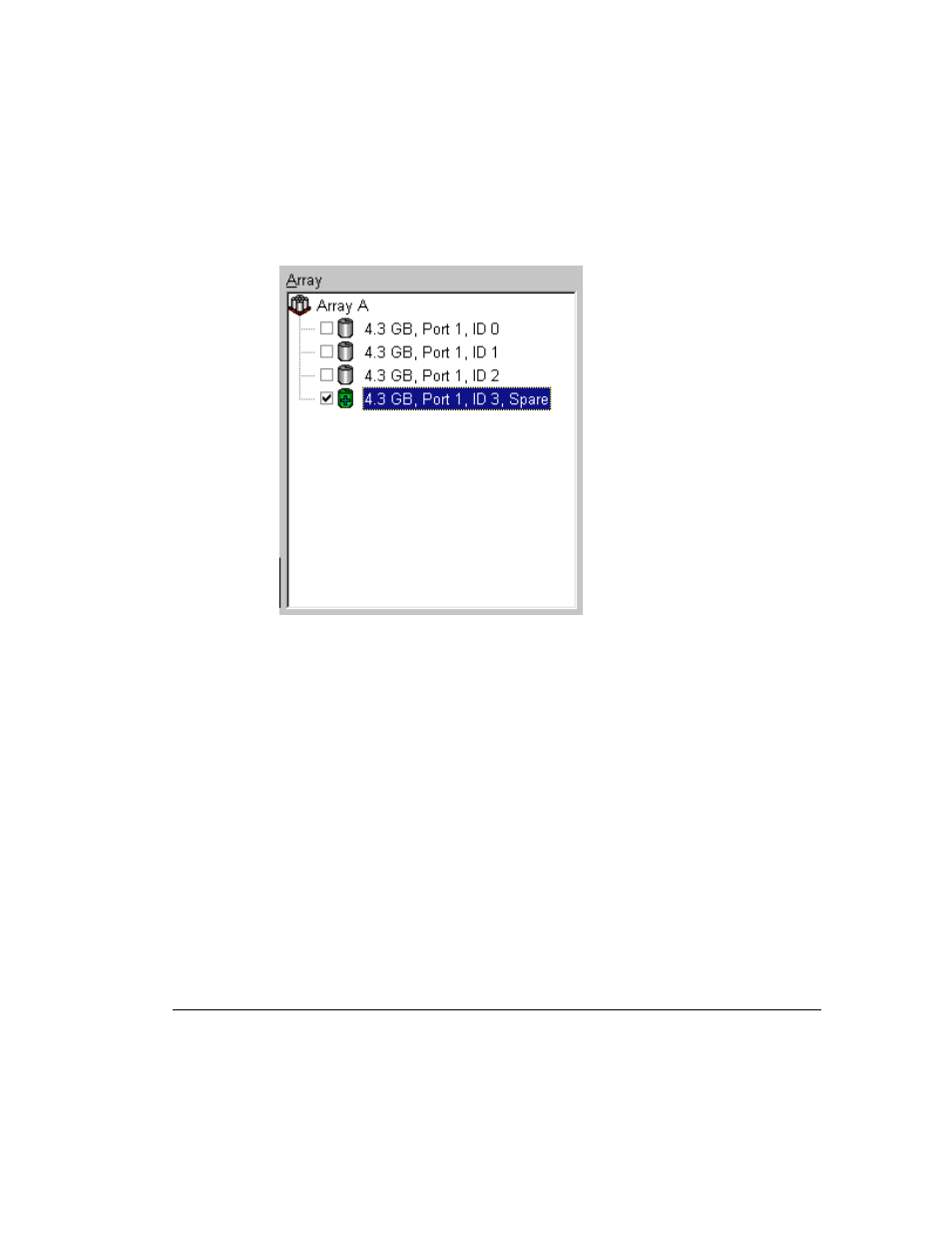

Figure 5-5. Example Array A
NOTE: The same spare drive may be assigned to multiple arrays. However,
spare drives should have the same or greater capacity as the drives in the
array.
