5-6 Running the Array Configuration Utility
Writer: Rickard Project: Compaq Smart Array 3200 Controller Reference Guide Comments: 340862-002
File Name: F-CH05.DOC Last Saved On: 12/7/98 1:22 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Step 1: Choose a controller for the array.
1. In the Array Configuration Utility Main Configuration Screen, select the
Controller Selection box. You can also select Controller/Select from the
menu bar.
2. Select the Smart Array 3200 Controller.

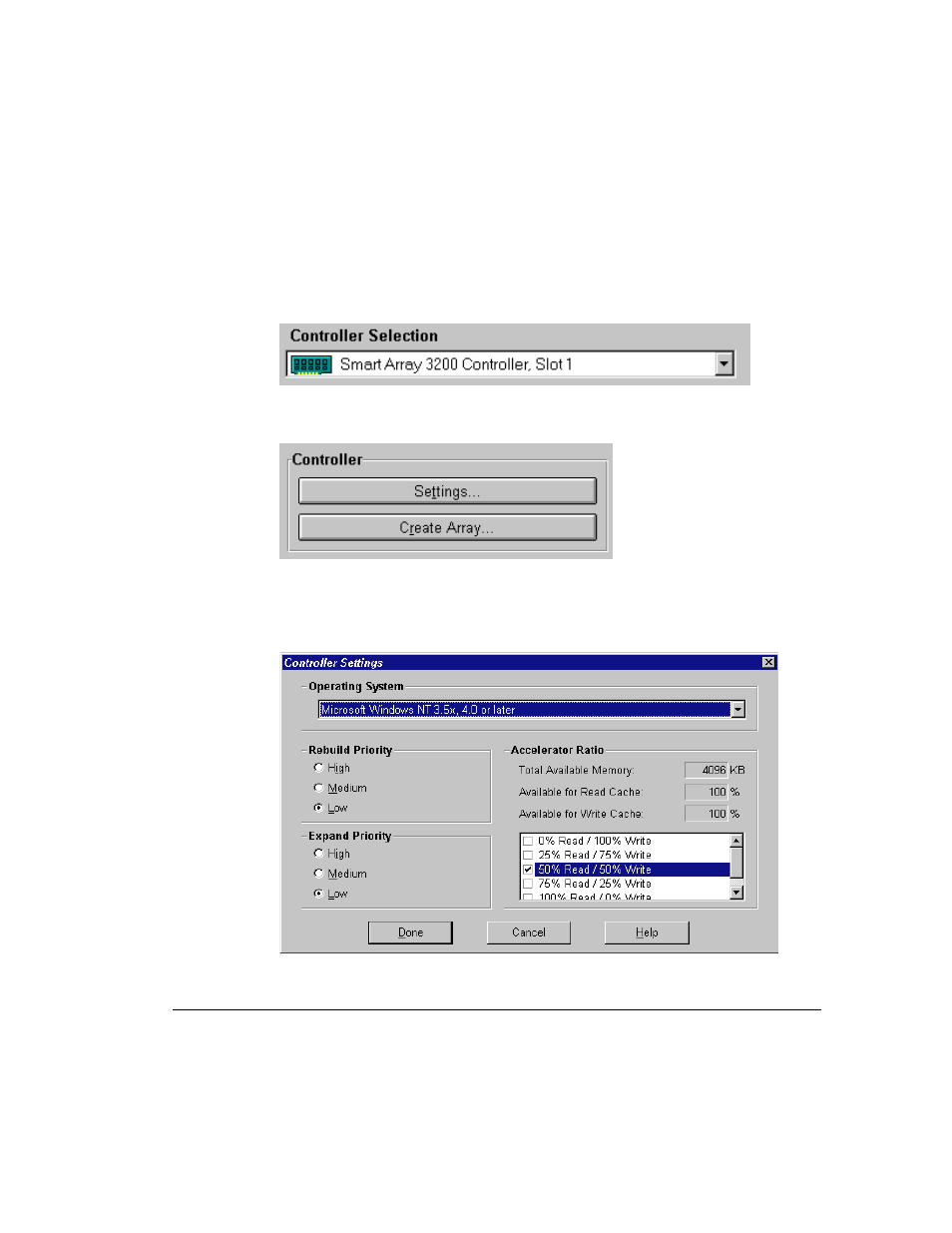

Figure 5-1. Controller selection list
3. Click the Controller Settings button shown in Figure 5-2.
Figure 5-2. Controller buttons
The controller settings screen is displayed, as shown in Figure 5-3.
4. Select the correct operating system on the controller settings screen.
Figure 5-3. Controller settings screen
