Compaq Smart Array 3200 Controller Reference Guide
Writer: Rickard Project: Compaq Smart Array 3200 Controller Reference Guide Comments: 340862-002
File Name: F-CH05.DOC Last Saved On: 12/7/98 1:22 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Array Buttons
The Array box is located on the right side of the screen, below the Controller
box. The Modify, Expand, and Create Logical Drive buttons become active after
you select an array in the View Configuration list box.

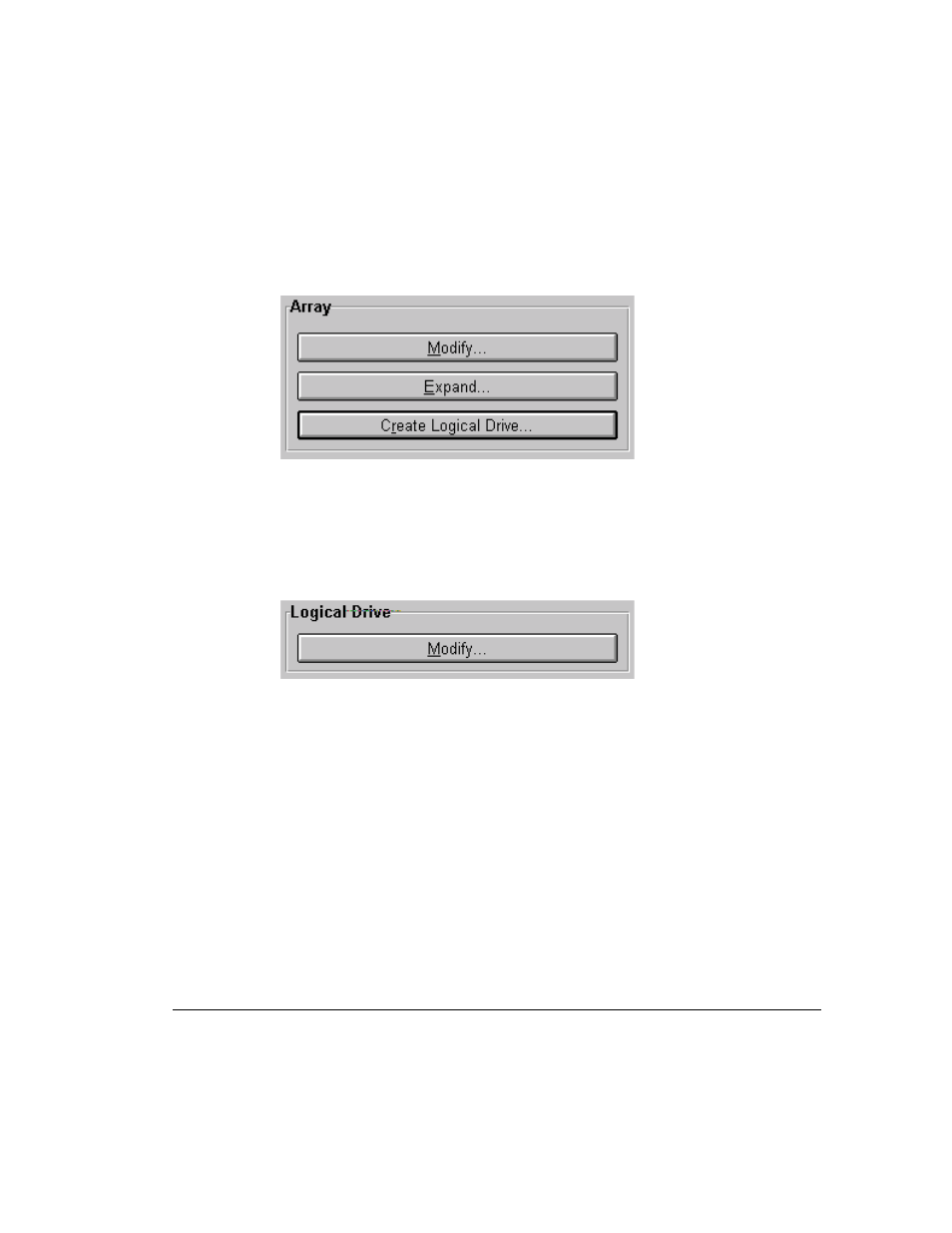

Figure 5-18. Array buttons
Logical Drive Button
This box is located on the right side below the Array box. The Modify button
becomes active after you select a logical drive in the Configuration View list
box.
Figure 5-19. Logical Drive button
