C-2 Specifications
Writer: Rickard Project: Compaq Smart Array 3200 Controller Reference Guide Comments: 340862-002
File Name: J-APPC.DOC Last Saved On: 11/30/98 5:06 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Wide SCSI Connector
Pin Assignments
Figure C-1 and Table C-2 identify the pin assignments of the 68-pin internal and
external Wide SCSI Connectors, formally called Wide-Ultra SCSI Connectors..
1 34
35 68
EXTSCSI.AI, A-6.EPS

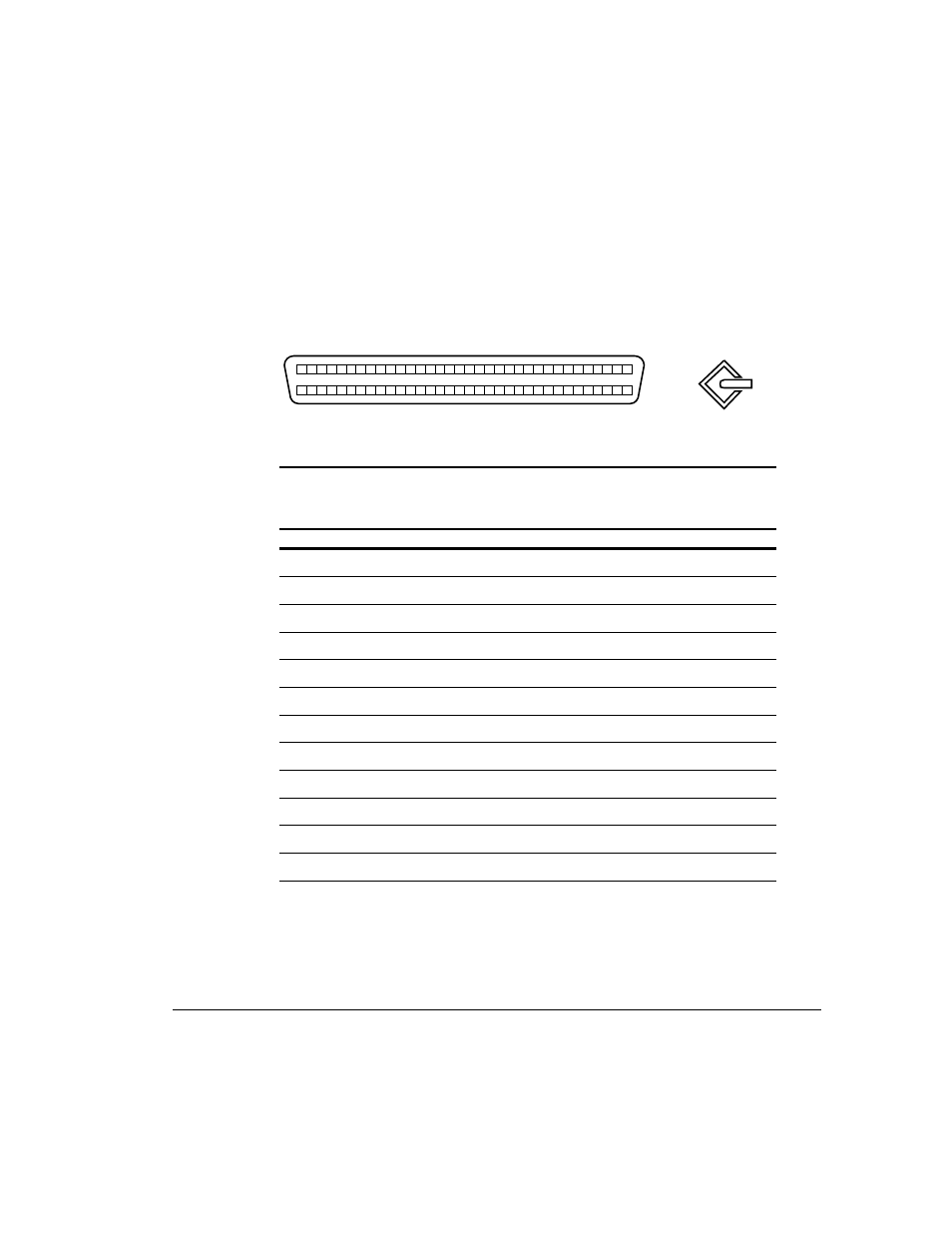

Figure C-1. Wide SCSI Connector
Table C-2
68-Pin Wide SCSI Connector Pin Assignments
Pin Signal Pin Signal
1 N/C 35 DB12*
2 Ground 36 DB13*
3 Ground 37 DB14*
4 Ground 38 DB15*
5 Ground 39 DB Parity 2*
6 Ground 40 DB0*
7 Ground 41 DB1*
8 Ground 42 DB2*
9 Ground 43 DB3*
10 Ground 44 DB4*
11 Ground 45 DB5*
12 Ground 46 DB6*
Continued
