NAVIGATION GROUP
The Navigation Group is the primary control interface on the DSMC Side Handle, RED Switchblade-M, and
REDMOTE.

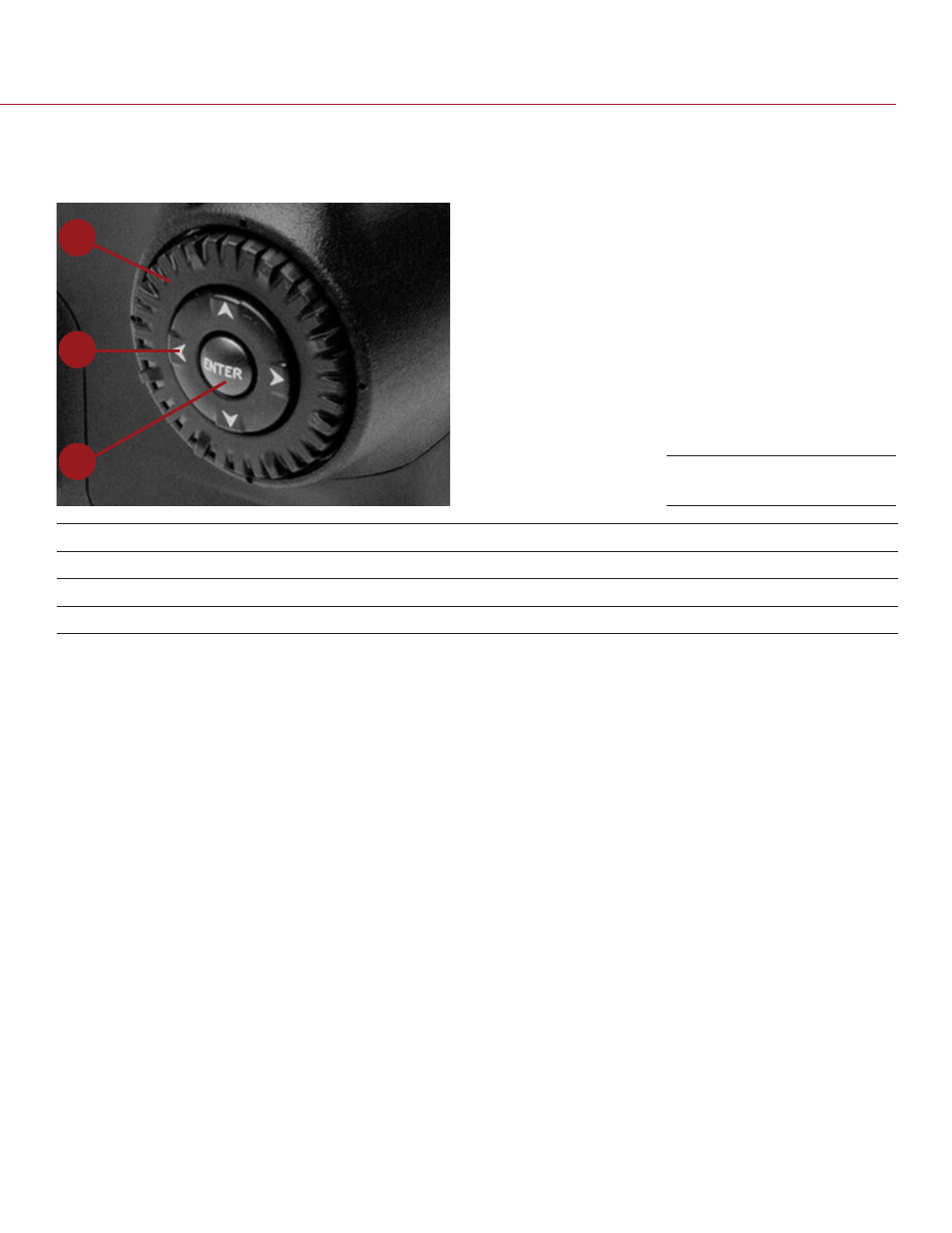

1
2
3
#
NAVIGATION GROUP ELEMENT
DESCRIPTION
1
Scroll Wheel
Select and adjust the value of a selected setting
2
Directional Keys (D-Pad)
Navigate menus and menu items
3
ENTER Button
Press ENTER to confirm a setting or access the selected menu
Navigate the menus using a DSMC Side Handle, RED Switchblade-M, or REDMOTE using the following controls:
Press ENTER to open the menu, then rotate the Scroll Wheel clockwise to move right, counterclockwise to
move left to highlight the desired menu or parameter. Press ENTER to select.
Press the Up Navigation Key to open the related Advanced Settings menu, if one (1) is available.
For more information, go to
“Default Key Functions” on page 205
.
For more information on the REDMOTE, go to
“REDMOTE Operation” on page 140
.
