Page 36

Chapter 2: Installation

Concord 4 Installation Manual

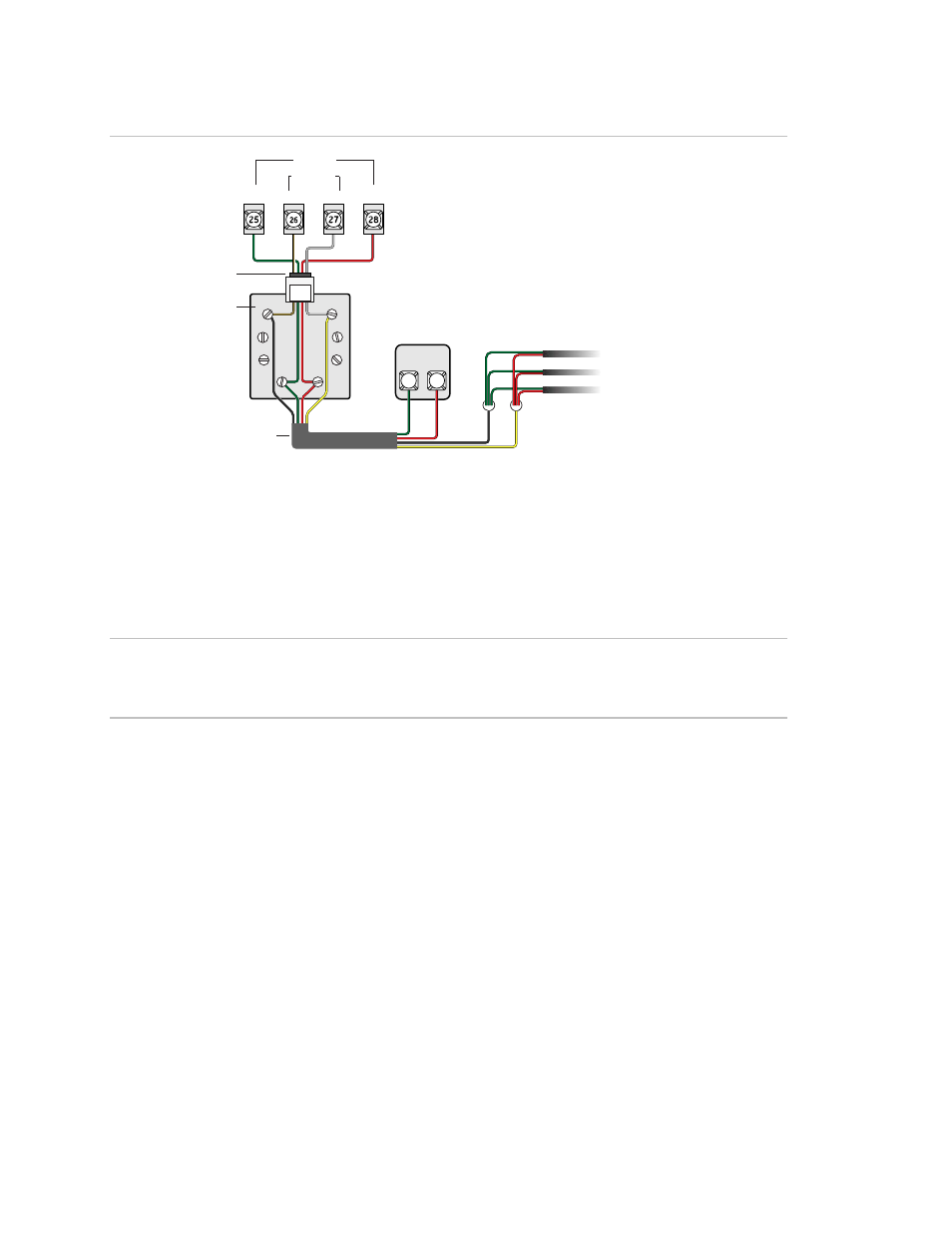

Figure 25: Wiring an RJ31X jack and DB-8 cord

BRN

Telco

House

DB-8 cord

RJ31X jack

Dealer cable

Telco protector
block

Lines from phones
on premises

RING
(-)

TIP
(+)

GRY

GRN

RED

GRN BRN GRY RED

Power

After connecting and wiring all devices to the panel, you are ready to apply AC
and backup battery power to the panel.

Caution:

Do not plug in the power transformer or connect the backup battery at

this time. The panel must be powered up using the sequence of steps described
in “Power up” on page 31.

AC power transformer

The panel must be powered by a plug-in, step-down transformer that supplies
16.5 VAC, 40 VA (600-1023 or 600-1023-CN).

Note:

Do not short the transformer terminals together. The transformer contains

an internal fuse that permanentaly disables the output if the terminals are
shorted.

For systems that include X10 lamp modules, the panel must be powered with the
line carrier power transformer that supplies 16.5 VAC, 40 VA (600-1024 or 600-
1024-CN). Connect the power transformer to the panel as shown in Figure 26 on
page 31.
