3.3 Setup Software Operating Procedure
29
3.3 Setup Software Operating Procedure

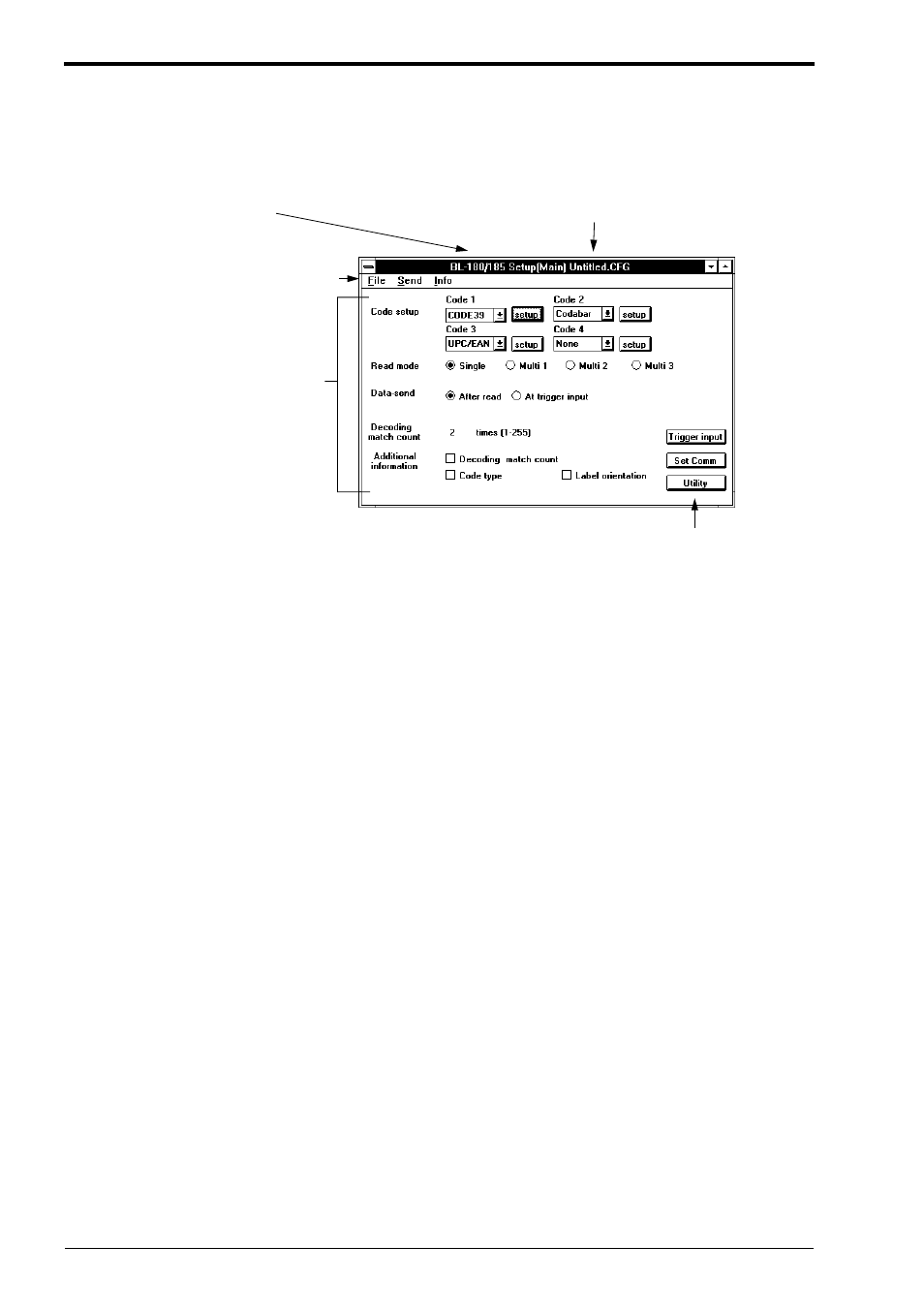

After the setup software is started, the following screen (main setting screen) is
displayed.
The function of each display is as follows.
The setup software provides the following setting screens according to the pa-
rameters.
Main setting [Main]
• Type of the bar code to be read
• Read mode and its setup
• Decoding match count
• Additional information
Setting details for the specified code type [Code setup]
• Setting No. of bar code length, inspection of check-digit, etc.
Trigger input setup [Setup Trigger input]
• Setting the operation mode and the trigger input
• Selecting the test mode starting method
• Setting characters for the trigger ON/OFF command
Communication parameters [Setup comm]
• Setting the baud rate, data bits, stop bit and parity
• Setting the protocol
• Setting the Communication strings (header string, delimiter, read error code,
etc.)
Utility [Utility]
• Setting the beeper
• Duration of OK/NG output
• Registration of preset data
For the operating procedure, see “Setup Software Operating Procedure” on
page 29.
For the error messages displayed during operation, see page 41.
Title (Name of the current setting screen)
Current file name
The initial file name is “Untitled. CFG”.
Menu bar (*)
Parameter
Setting screen selector buttons
