1.2 Installing the BL-180 Series
6
1.2 Installing the BL-180 Series
Installation method
Use the mounting holes on the side panel to install the unit. To prevent dust from
entering the unit, seals have been placed over the screw holes. Remove the seals
before mounting.
Using the supplied mounting brackets

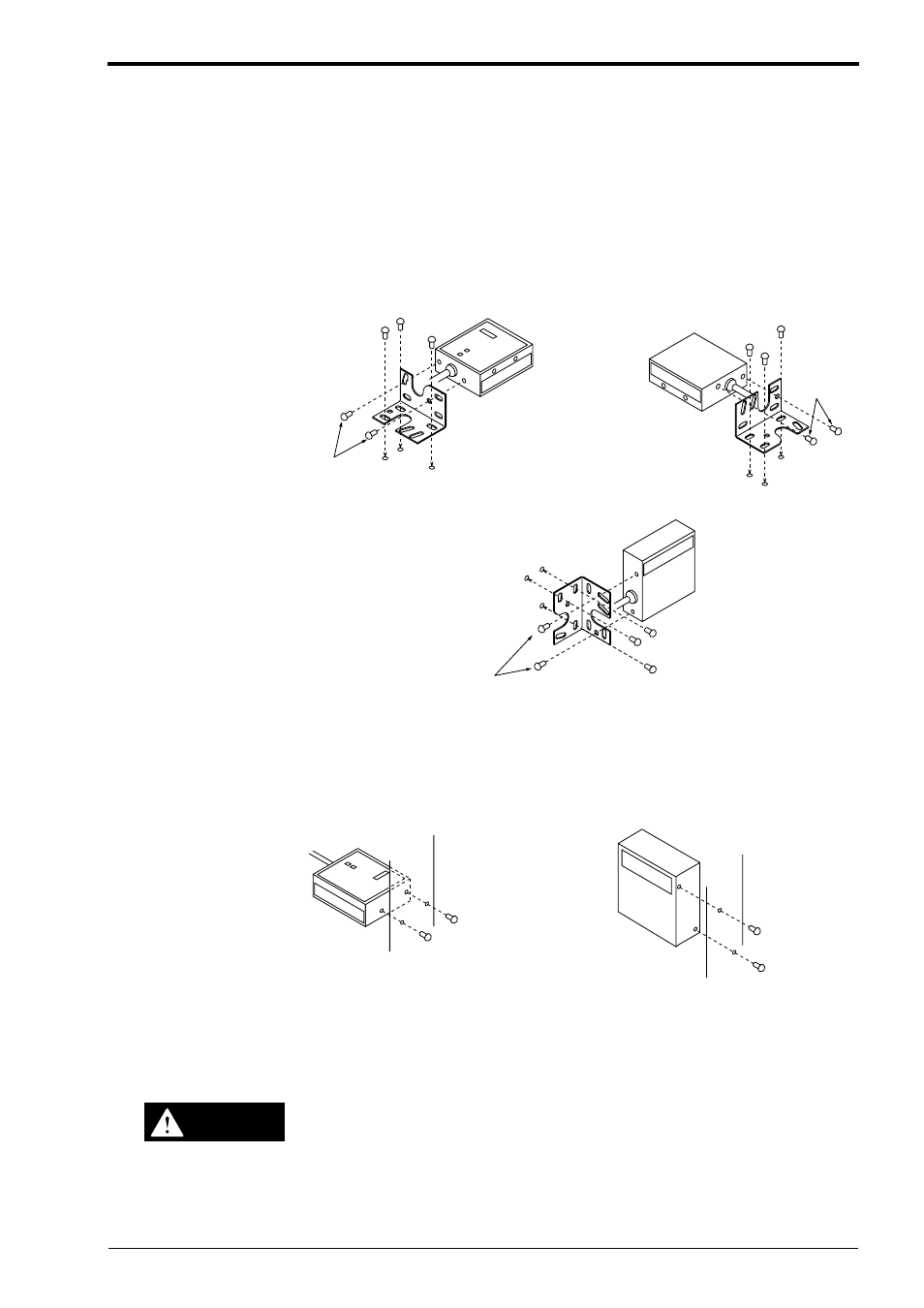

Install the BL-180 Series as shown in the figures below.
BL-180 pattern 1 BL-180 pattern 2
(BL-185)
• Select screws of the proper length by checking the thickness of the plate used
for mounting. (The screws provided are for use with the mounting bracket.)
• For the mounting hole diameter, see page 65.
Installation with no mounting bracket
(BL-180) (BL-185)
• Prepare M3 male screws separately.
• Although the mounting holes are on both sides of the unit, only one side should
be mounted.
• For the mounting hole diameter, see page 65.
Do not insert screws into the BL-180 by 5 mm or deeper. Doing so may damage
the unit parts.
Select screws of the proper length by checking the thickness of the plate used for
mounting.
M3 screws
M3 screws
M3 screws
CAUTION
