2.3 Label orientation mode
16
2.3 Label orientation mode

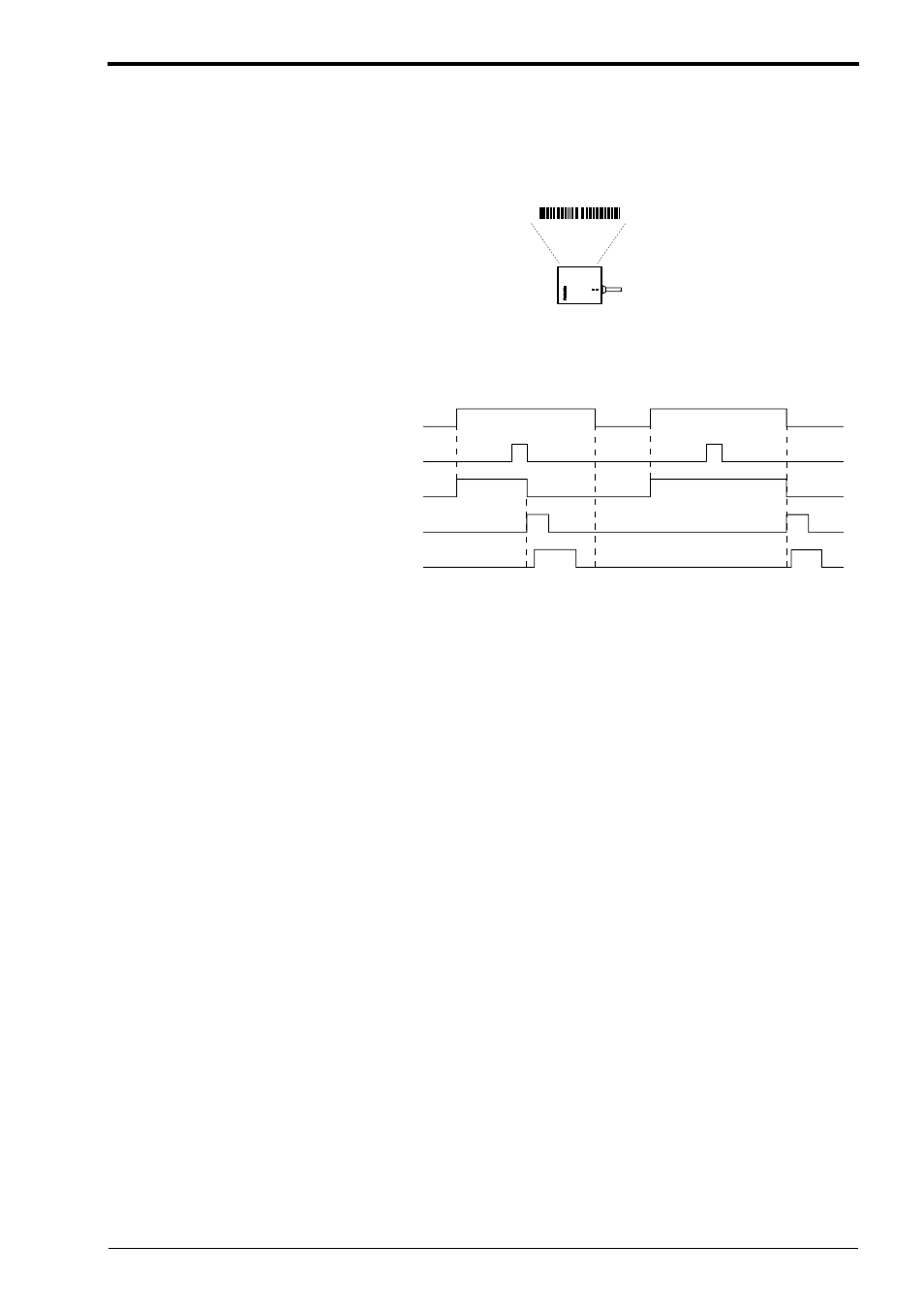

As shown below, this mode allows the unit to read bar codes only in the specified
orientation when bar code labels are moving both in the forward and reverse ori-
entations.
Normally, the unit can read bar codes regardless of the orientation.
An reading error is issued when the unit reads a bar code label running in the ori-
entation which is not specified.
The above chart applies to the single label read mode. You can also use this
mode together with the desired multi-label read mode. However, in any case, the
unit reads bar codes running in the specified orientation only.
You can specify the orientation individually for Codes 1 to 4, such as specifying
“forward orientation” for Code 1, and “reverse orientation” for Code 2.
4 9 0 0 0 0 0 0
4 90 00 00 0
Forward orientation Reverse orientation
OK/NG STABILITY
BL-180
OK/NG NG
Trigger input
Bar code
LED beams
Communication time
OK/NG output
